MIG Welding Machines Series

- - Multi-Phase Input: 180V-450V (1/2/3 PH)
  - Output: 250A MIG / 220A MMA
  - Duty Cycle: 220A @ 100% (40°C)
  - Weight: 17kg
  - Key Features: Hot Start, Multi-Voltage Compatibility

- - Input: 3-Phase 380V ±10%
  - Output: 350A @ 100% Duty Cycle
  - Wire Size: Ø0.8-1.2mm
  - Weight: 15.3kg
  - Key Features: Silicon Carbide Technology, 7-Pin Control Interface

- - Input: 3-Phase 380V ±10%
  - Output: 500A @ 100% Duty Cycle
  - Wire Size: Ø1.0-1.6mm
  - Weight: 23kg
  - Key Features: Silicon Carbide Technology, Carbon Arc Gouging Capability

- High Speed Pulse MIG Welding Machine

- High Speed Pulse MIG Welding Machine

- High Speed Pulse MIG Welding Machine

- High Speed Pulse MIG Welding Machine

- High Speed Pulse MIG Welding Machine

- High Speed Pulse MIG Welding Machine

- High Speed Pulse MIG Welding Machine

- High Speed Pulse MIG Welding Machine

MIG Series | Professional Welding Machines

Series Highlights

⚡

Superior Power Technology

Our MIG series features advanced Silicon Carbide (SiC) technology in select models, delivering exceptional performance with 100% duty cycle at rated current (40°C), ensuring continuous operation in demanding environments.

🔄

Versatile Process Control

Experience unmatched welding versatility with four distinct welding modes: manual welding, standard MIG/MAG, high-speed single pulse, and high-speed double pulse, with the ability to store up to 10 welding programs.

🔧

Multi-Material Mastery

Achieve superior results across a wide range of materials including carbon steel, stainless steel, aluminum alloys, and copper alloys, with specialized double pulse technology producing TIG-like weld appearance at MIG efficiency.

IMPORTANT DISCLAIMER

All technical specifications are provided for reference only. Model names, display currents, and certain features can be customized upon request. The real maximum output current and duty cycle are the critical performance indicators for selecting the appropriate machine for your application. Always refer to the product manual for complete operational guidelines and safety information.

Technical Specifications Comparison

Model	Specifications	Primary Applications	Industry Sectors
MIG 250ST	Input: AC 180V~450V; 1/2/3 PH Max Output: MIG 250A / MMA 220A Duty Cycle @ 40°C: 220A @ 100% Weight: 17kg	General fabrication Repair and maintenance Field work with variable power	Construction Automotive General Manufacturing

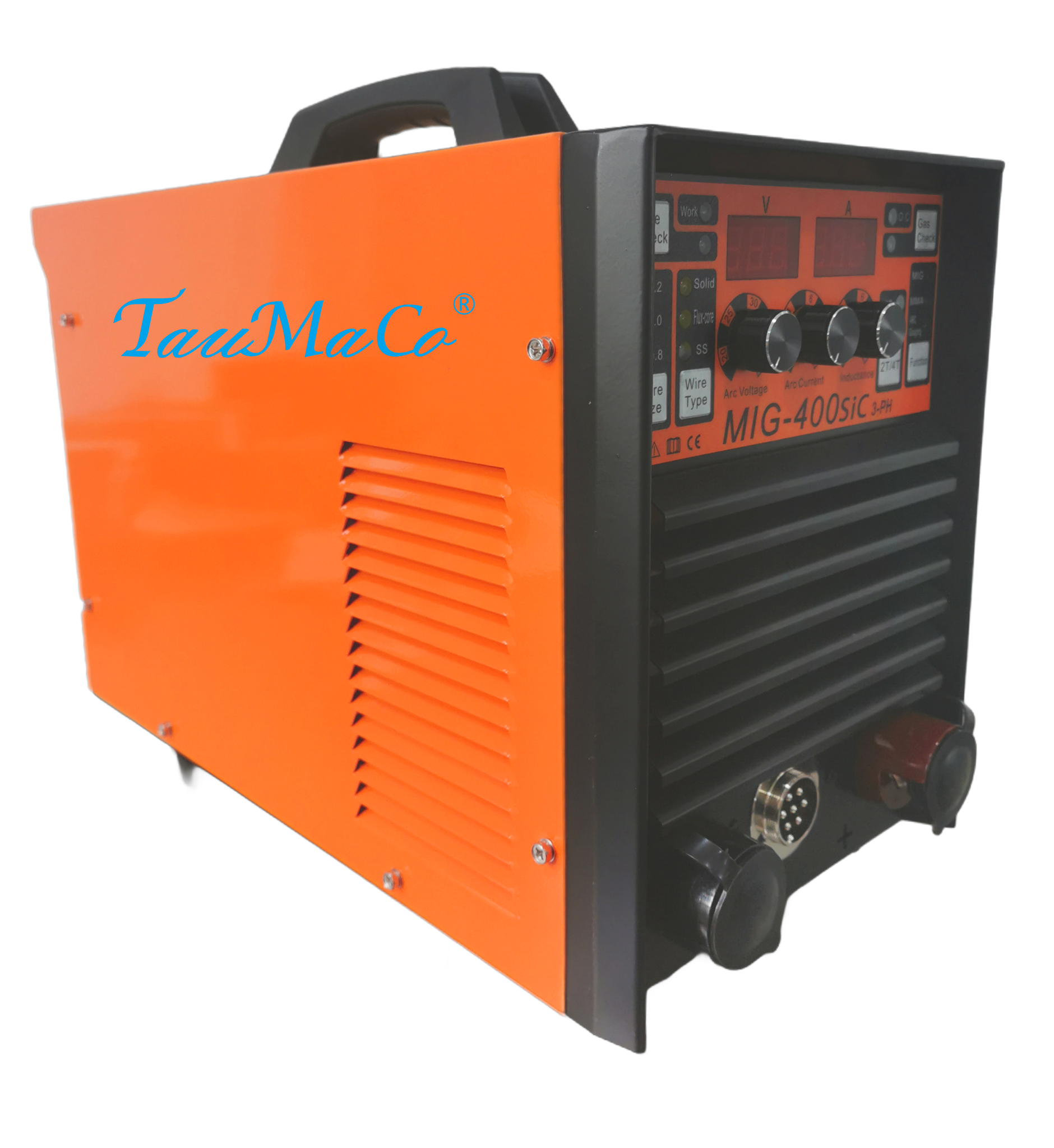

MIG-400SiC	Input: 3 Phase; 380V ±10% Current Range: 0-350A (MIG & MMA) Duty Cycle @ 40°C: 350A @ 100% SiC Technology	Heavy-duty fabrication Production welding Industrial manufacturing	Heavy Industry Metal Fabrication Manufacturing
MIG-500SiC	Input: 3 Phase; 380V ±10% Current Range: 60-500A (MIG) / 0-500A (MMA) Duty Cycle @ 40°C: 500A @ 100% SiC Technology	Heavy structural fabrication Carbon arc gouging Thick material welding	Shipbuilding Heavy Construction Mining & Energy

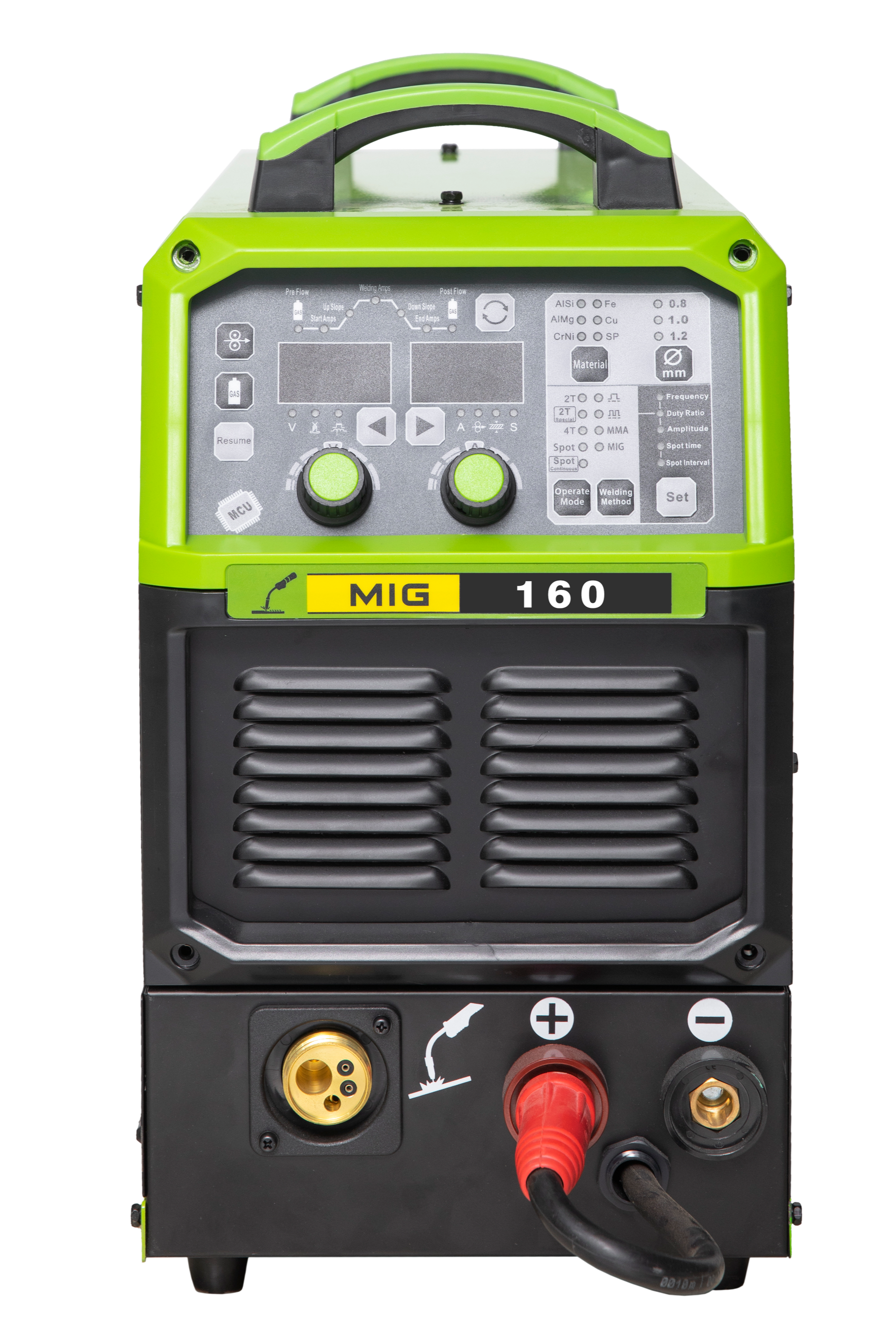

MIG-160	Input: AC220V±10% 50Hz 1PH Current Range: 10~160A Duty Cycle: 60% Integrated wire feeder	Light fabrication Thin aluminum welding (0.5-4mm) Hobbyist and small shop use	Small Workshops Automotive Repair DIY/Hobbyist

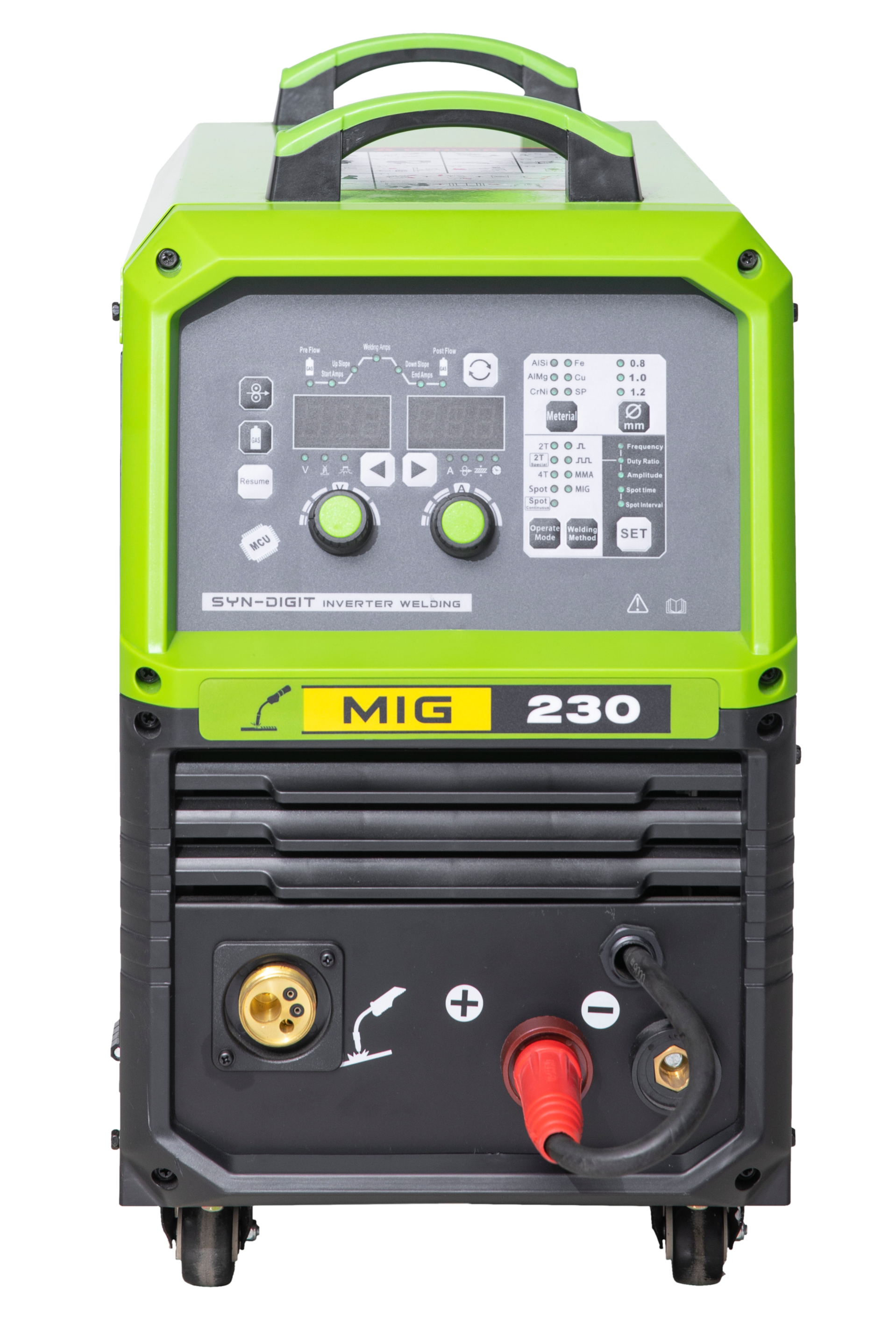

MIG-230	Input: AC220V±10% 1PH or AC380V±10% 3PH Current Range: 10~230A Duty Cycle: 60% Dual voltage capability	Medium fabrication Aluminum welding (0.5-5mm) Versatile shop applications	Metal Fabrication Sign Manufacturing General Industry

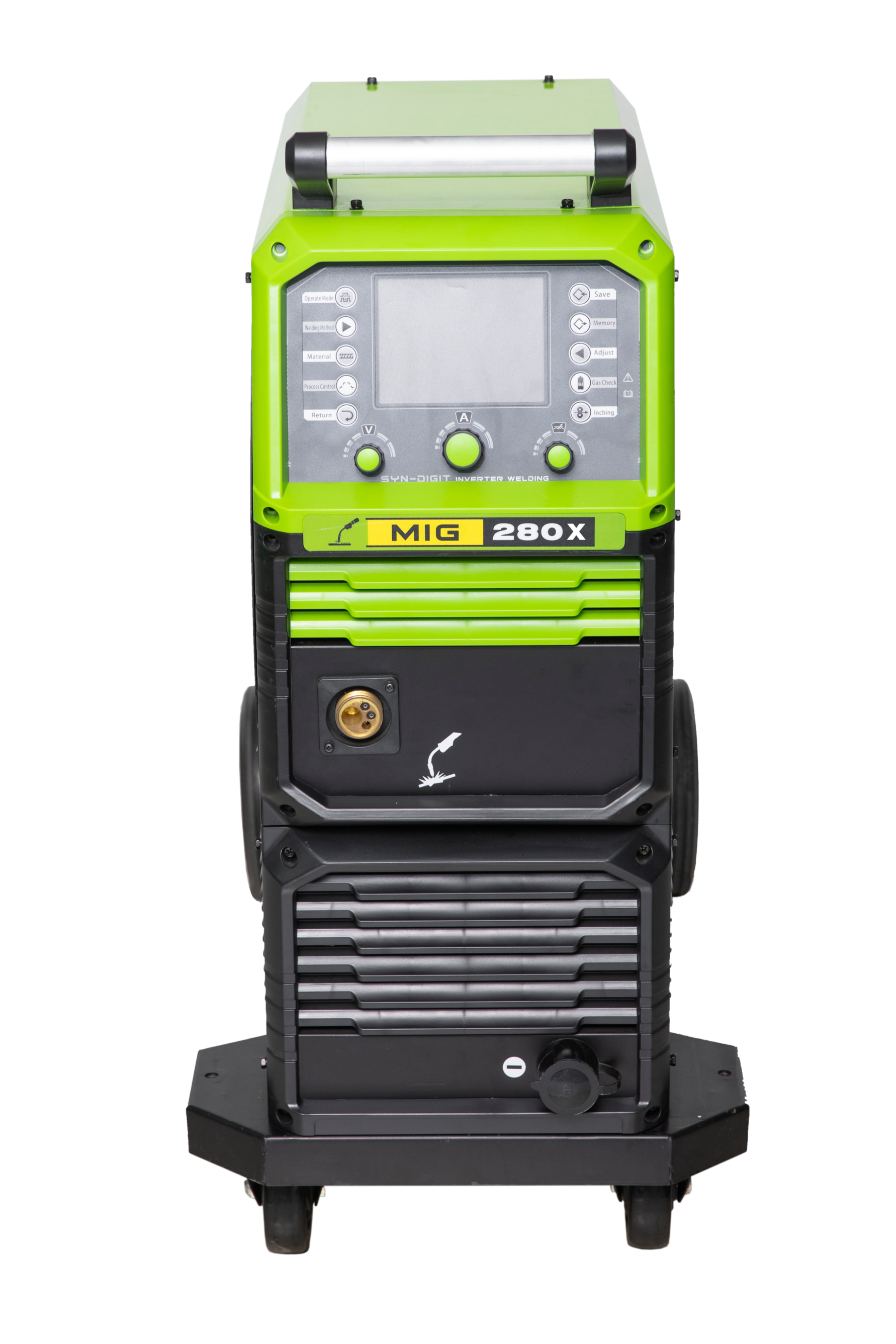

MIG-280/280X	Input: AC380V±10% 50Hz 3PH Current Range: 10~280A Duty Cycle: 60% Separate wire feeder with feedback	Industrial fabrication Aluminum welding (0.5-6mm) Production environments	Manufacturing Aluminum Fabrication Industrial Production
MIG-350	Input: AC380V±10% 50Hz 3PH Current Range: 30~350A Duty Cycle: 60% Air-Cooled	Heavy aluminum fabrication (0.5-10mm) High-volume production Industrial applications	Aerospace Automotive Manufacturing Heavy Industry

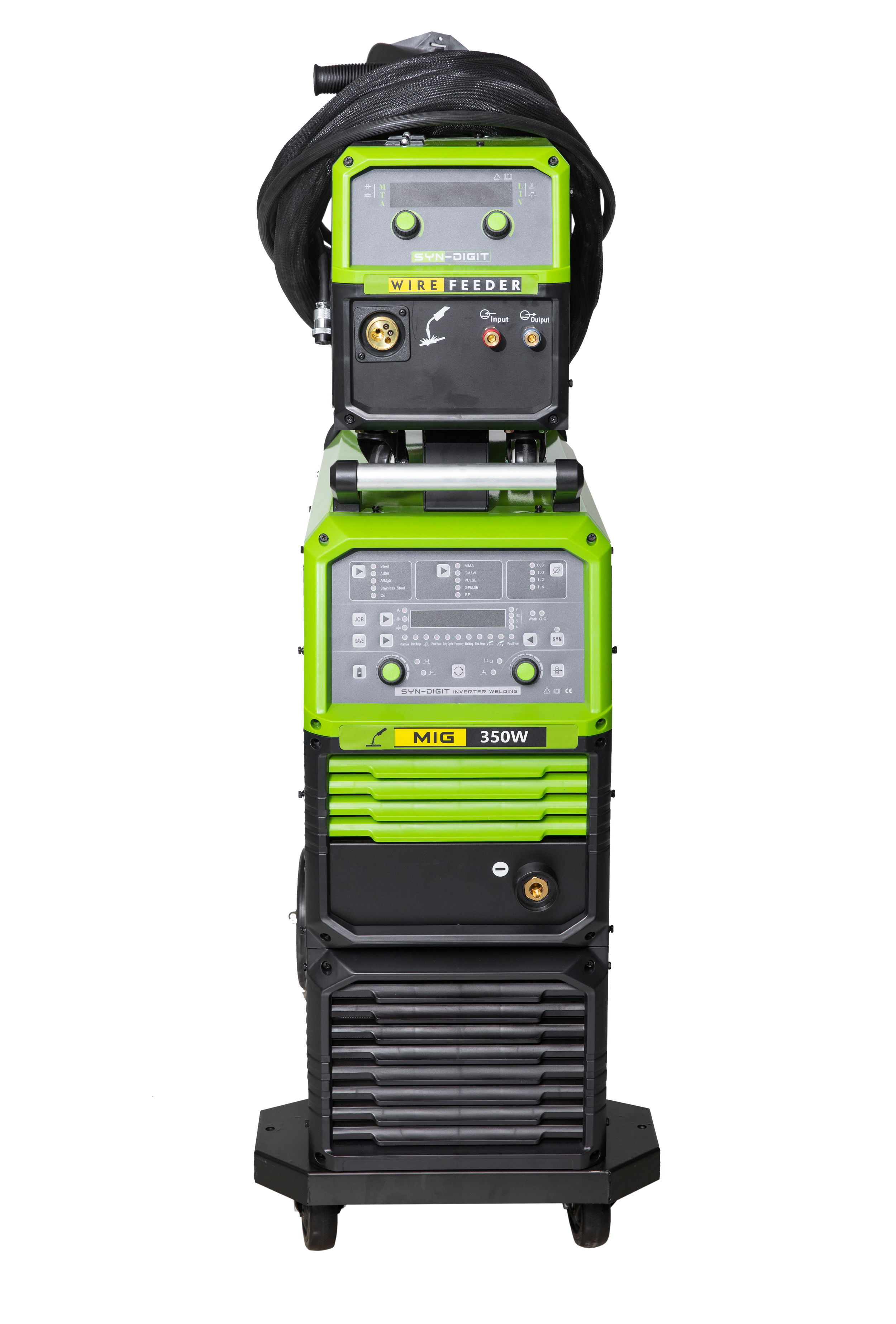

MIG-350W	Input: AC380V±10% 50Hz 3PH Current Range: 30~350A Duty Cycle: 60% Water-Cooled	Extended duty aluminum welding Continuous production operations High-precision applications	Aerospace Precision Manufacturing Aluminum Industry
MIG-500	Input: AC380V±10% 50Hz 3PH Current Range: 30~500A Duty Cycle: 60% Air-Cooled	Heavy industrial fabrication Thick material welding High-amperage applications	Heavy Construction Shipbuilding Industrial Manufacturing
MIG-500W	Input: AC380V±10% 50Hz 3PH Current Range: 30~500A Duty Cycle: 60% Water-Cooled	Extended high-amperage welding Continuous heavy-duty operations Precision thick material welding	Heavy Industry Shipbuilding Large-Scale Manufacturing

Product Categories

Category	Models	Key Features
Standard MIG Series	MIG 250ST	Multi-voltage compatibility (1/2/3 PH) 100% duty cycle at rated current (40°C) Constant voltage for MIG process
Silicon Carbide (SiC) Technology Series	MIG-400SiC MIG-500SiC	Next-generation SiC power source technology 100% duty cycle at maximum rated current (40°C) 7-Pin control interface with generator compatibility
Compact Pulse MIG Series	MIG-160 MIG-230	Integrated wire feeder design Four welding modes including double pulse Specialized for thin to medium aluminum welding
Industrial Pulse MIG Series	MIG-280 MIG-280X	Separate wire feeder with speed feedback Large LED display with precise parameter control Suitable for medium-duty industrial applications
High-End Air-Cooled Pulse MIG Series	MIG-350 MIG-500	Air-cooled design for standard production environments Superior aluminum welding capability up to 10mm Advanced parameter control for optimal weld quality
High-End Water-Cooled Pulse MIG Series	MIG-350W MIG-500W	Built-in integrated water cooling tank for extended operation Ideal for continuous high-duty cycle production environments Enhanced torch cooling for operator comfort and consumable life

          ✓
          EN 60974-1: Welding Power Sources and Plasma Cutting Systems

          ✓
          EN 50199: Electromagnetic Compatibility (EMC) Standards

          ✓
          Low Voltage Directive (LVD)

          ✓
          Electromagnetic Compatibility (EMC) Directive

MIG Welding Machines Series

Explore our specialized range of MIG welding power sources engineered for versatility and performance. Our machines deliver consistent wire feeding, stable arc characteristics, and precise control for professional welding results across diverse applications.

Key Features

Advanced Technology

Synergic control systems for automatic parameter optimization
Multi-voltage capability for workshop and field use
Pulse MIG technology for reduced spatter and improved control
Digital displays for accurate parameter monitoring

Professional Design

Heavy-duty wire feeding mechanisms for consistent operation
Integrated wire spools with adjustable brake systems
4-roll drive systems for reliable wire feeding
Quick-change polarity for easy transition between welding processes

Safety Features

Electronic overload protection for machine longevity
Thermal shutdown protection for critical components
Torch cooling systems for extended operation
EMC compliance for electrical safety standards

Applications

Automotive fabrication and repair
Sheet metal manufacturing
Structural steel fabrication
Production welding operations
Aluminum and stainless steel welding
Thin material applications

Technical Support

Our technical team provides comprehensive support including:

Wire and gas selection guidance
Drive roll configuration assistance
Process parameter optimization
Performance troubleshooting

Legal Notice

All specifications and features mentioned are subject to model variation. Product capabilities should be verified for specific applications. All trademarks mentioned are property of their respective owners.
