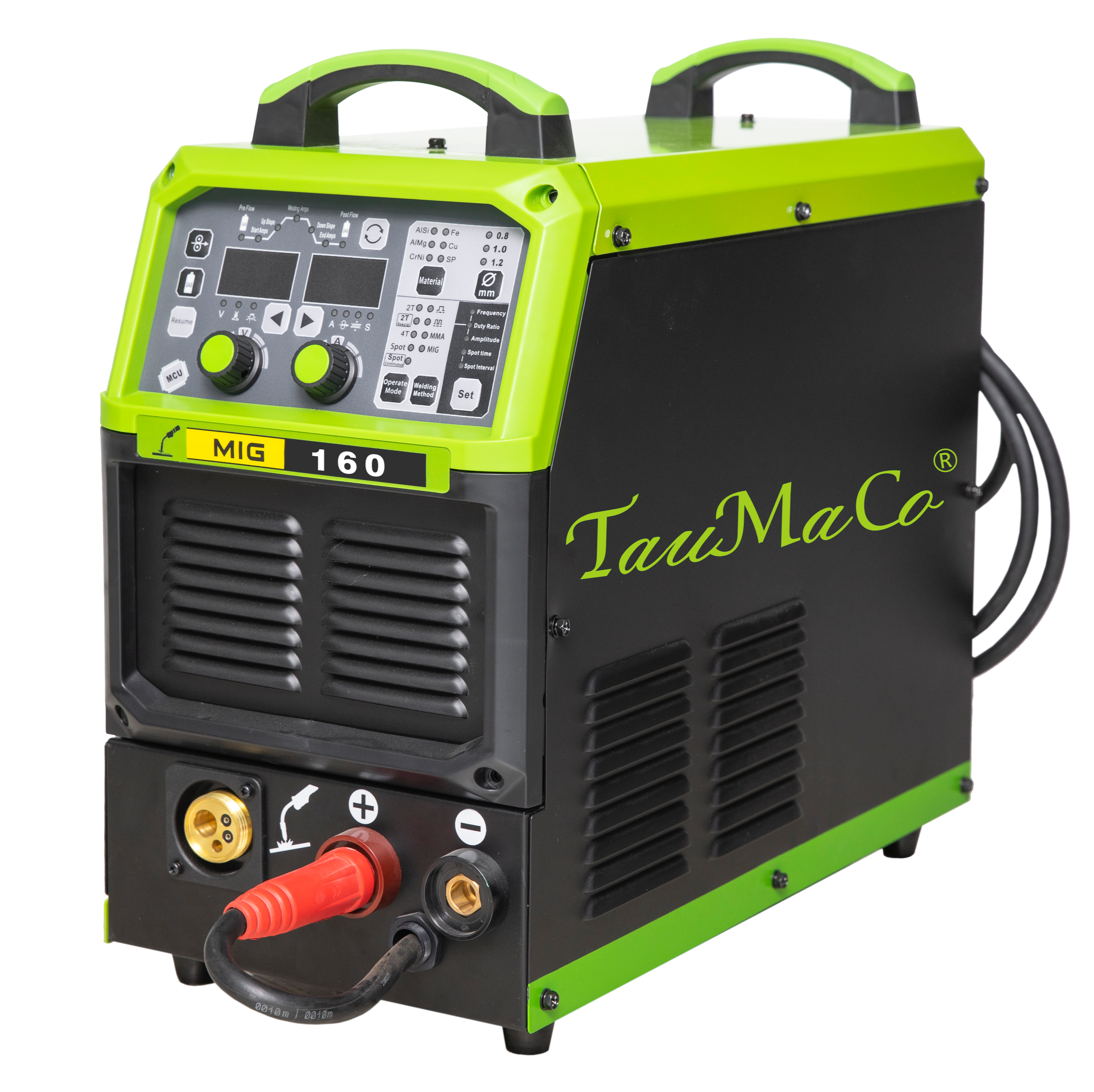

MIG-160 High Speed Pulse MIG Welding Machine
The MIG-160 is a professional-grade high-speed pulse MIG welding machine designed for versatility and precision. With its advanced synergic control system and multiple welding modes, it offers exceptional performance for a wide range of materials and applications.
Key Features & Benefits
Versatile Welding Modes
Four comprehensive welding modes: manual welding, standard MIG, high-speed single pulse, and high-speed double pulse. The reverse connection method enables gasless welding operations for added flexibility.
Advanced Program Storage
Store up to 10 welding programs with comprehensive functionality including 2T/4T/Special 2T/spot welding/continuous spot welding operations for quick recall of optimal settings.
Superior Pulse Technology
Specialized super double pulse welding for multiple materials with splash-free operation on 0.5-4mm aluminum alloy workpieces. Creates TIG-like fish-scale pattern formation with significantly higher efficiency.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | MIG-160 |
| Input Voltage | AC220V±10% 50Hz 1PH |
| Input Power | 5.3KVA |
| Input Current | 24A |
| Duty Cycle | 60% |
| Output Current Range | 10~160A |
| No-load Output Voltage | 65V |
| Power Factor | ≥0.93 |
| Efficiency | ≥85% |
| Wire Diameter | Ø0.8/Ø1.0/Ø1.2mm |
| Gas Flow | 5~15L/min |
| Insulation Class | F |
| Machine Dimensions | 52.5×24.9×44.5 cm |
Synergic Control System
The MIG-160 features an advanced synergic control system that automatically coordinates multiple welding parameters based on a single adjustment. Instead of manually setting voltage and wire feed speed separately, the synergic system links these parameters together, allowing welders to make adjustments with a single control.
Simplified Operation
The machine's computer precisely coordinates wire feed speed, voltage, and pulse parameters, creating an intuitive "one knob" control system that maintains optimal parameter relationships.
Consistent Quality
Automatic parameter coordination ensures consistent weld quality across different materials and thicknesses, reducing the possibility of operator error.
Reduced Setup Time
Quick setup and parameter adjustment allows for faster transitions between different welding tasks and materials, increasing overall productivity.

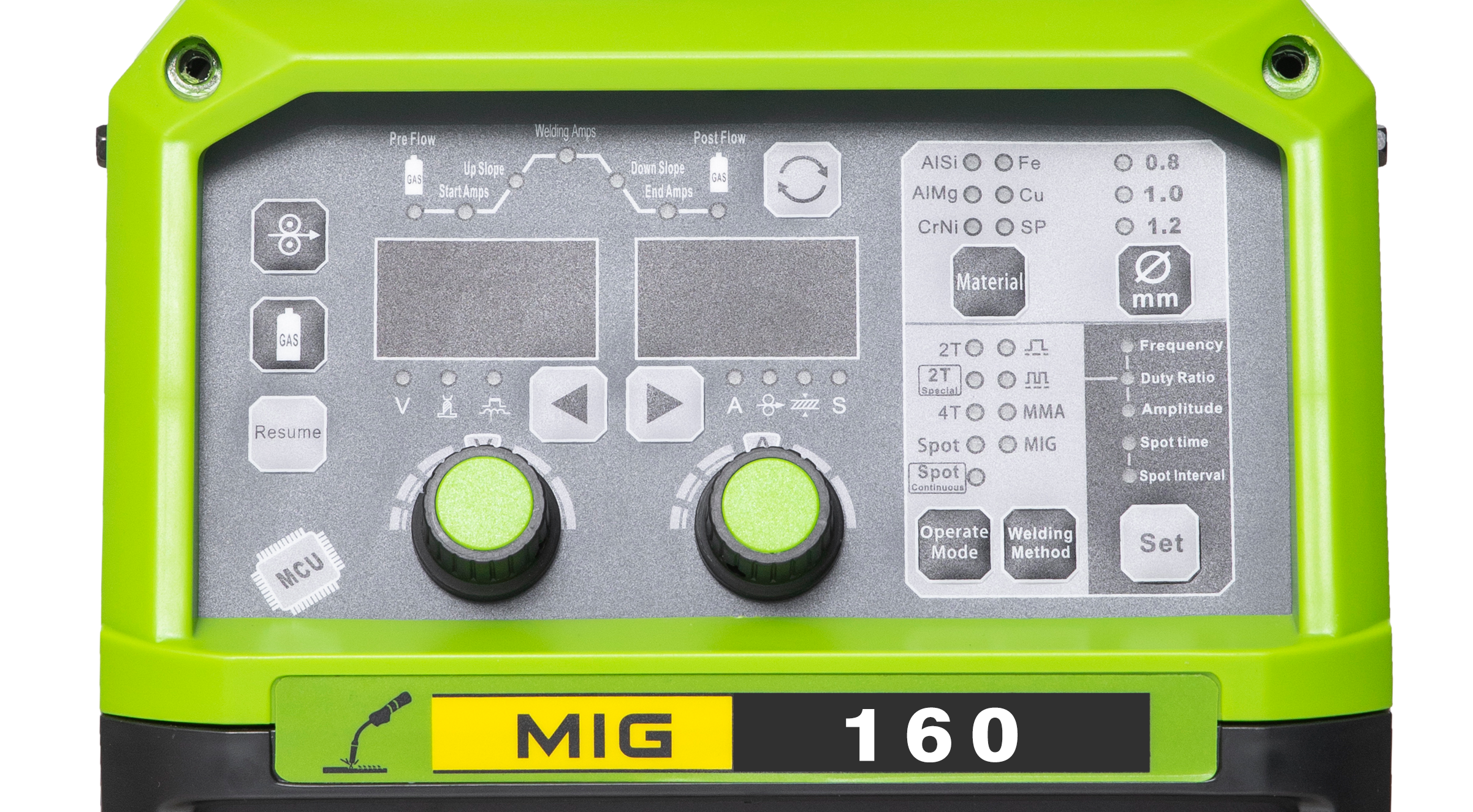

Control Panel Overview
The MIG-160 features an intuitive control panel designed for efficient operation with comprehensive parameter management:
Parameter Control
- Dual adjustment dials for voltage (V) and amperage (A)
- Precise control over welding parameters including voltage, arc voltage, inductance, current, wire speed, and plate thickness
- Gas control for pre-gas, post-gas, upslope, and downslope phases
Operation Modes
- 2T: Standard 2-step operation
- Special 2T: Enhanced 2-step operation
- 4T: 4-step operation for longer welds
- Spot Weld (点焊) and Continuous Spot Weld (连续点焊) capabilities
Welding Methods
- Single Pulse (单脉冲) welding
- Double Pulse (双脉冲) welding
- Manual Welding (手工焊)
- Gas-shielded Welding (气保焊)
Material Compatibility
The MIG-160 welding machine is engineered to work with a diverse range of materials, making it exceptionally versatile for various welding applications:
Carbon Steel
碳钢Stainless Steel
不锈钢Aluminum-Silicon
铝硅Aluminum-Magnesium
铝镁Copper
铜Other Non-ferrous Metals
其他有色金属Machine Features
- Integrated wire feeder for smooth wire delivery
- Compatible with 20/30cm wire spools
- Portable design for enhanced mobility
- Wire diameter compatibility: Ø0.8mm, Ø1.0mm, and Ø1.2mm
Applications
The MIG-160's versatile capabilities make it suitable for a wide range of welding applications:
Precision Work
- Thin material welding (0.5-4mm)
- Detailed fabrication
- Automotive components
Industrial Applications
- Sheet metal fabrication
- General manufacturing
- Production environments
Specialized Welding
- Aluminum fabrication
- Stainless steel welding
- Non-ferrous metal joining
The machine's super double pulse technology is particularly effective for aluminum alloy workpieces, creating high-quality welds with fish-scale pattern formation similar to TIG welding but with significantly higher efficiency.
Product Advantages
Performance
- High Efficiency: 60% duty cycle with output current range of 10-160A
- Energy Efficient: High power factor (≥0.93) and efficiency (≥85%)
- Precise Control: Advanced synergic system for parameter coordination
Versatility
- Multiple Welding Modes: Four distinct welding methods
- Material Compatibility: Works with various metals and alloys
- Adaptable Settings: Comprehensive parameter adjustment options
User Experience
- Program Storage: Save up to 10 welding programs
- Portable Design: Compact dimensions (52.5×24.9×44.5 cm)
- Integrated Features: Built-in wire feeder for convenience
Summary
The MIG-160 High Speed Pulse MIG Welding Machine represents a professional-grade solution that balances versatility, precision, and user-friendly operation in a compact, portable design. With its advanced synergic control system and multiple welding modes, it delivers exceptional results across a wide range of materials and applications.
Key Highlights
- Four versatile welding modes with program storage capability
- Specialized pulse technology for superior welding results
- Compatible with multiple materials including carbon steel, stainless steel, aluminum alloys, and copper
The MIG-160 excels in aluminum alloy welding, producing splash-free welds with TIG-like fish-scale patterns at higher efficiency. Its intuitive control panel, portable design, and comprehensive parameter adjustment capabilities make it an ideal solution for professionals seeking a high-performance welding machine that combines advanced technology with ease of use.
