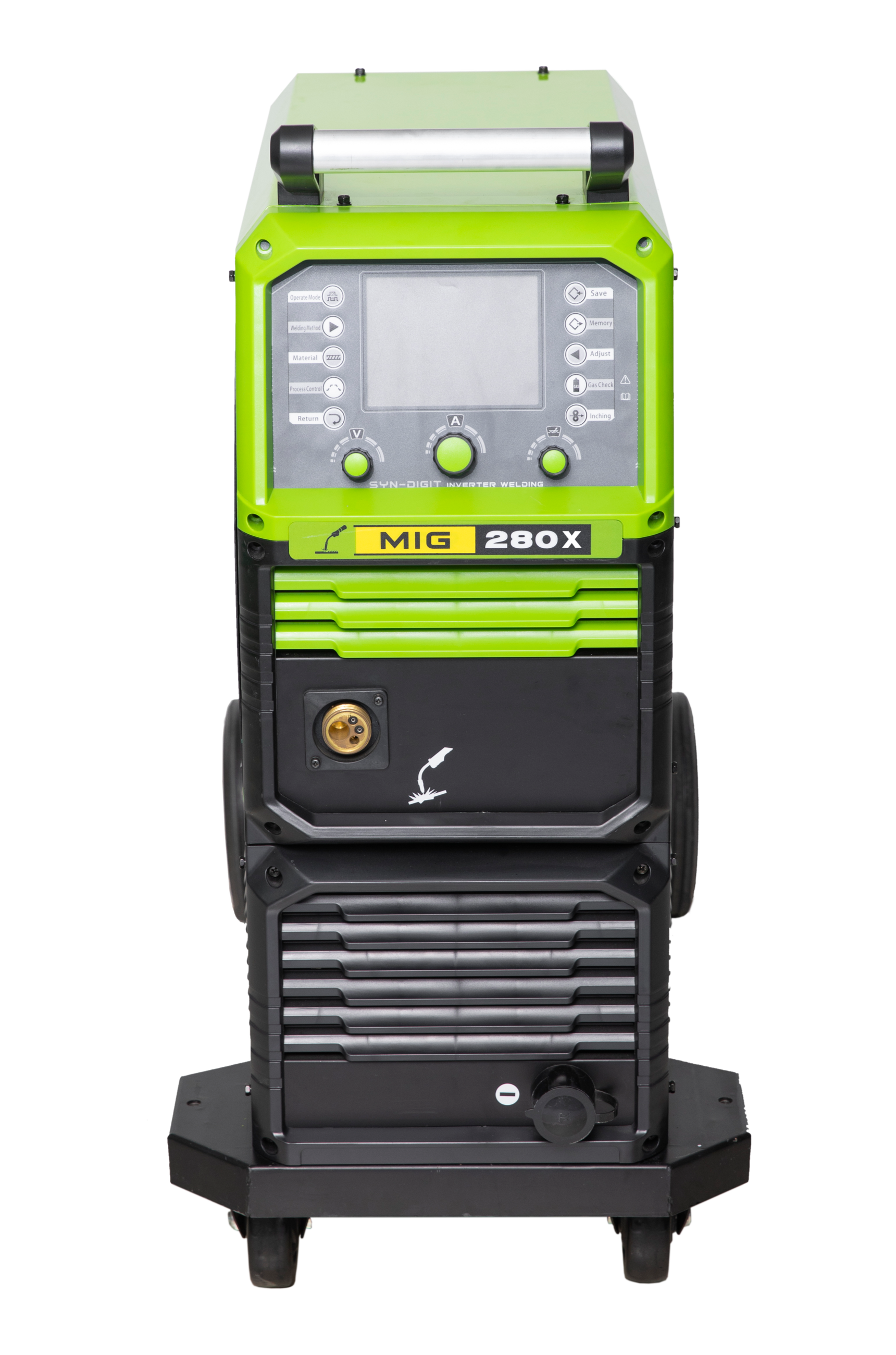

MIG-280X High Speed Pulse MIG Welding Machine
The MIG-280X is an advanced high-speed pulse MIG welding machine designed for professional welding applications. With its intuitive LED display, precise parameter adjustment, and speed feedback monitoring system, it delivers exceptional performance across a wide range of materials and welding scenarios.
Key Features & Benefits
Advanced Display System
Large LED display screen provides intuitive parameter visualization, allowing welders to monitor and adjust settings with greater precision and confidence during operation.
Precision Control
Enhanced parameter adjustment capabilities with wire feeder featuring speed feedback monitoring ensure consistent wire delivery and superior weld quality across various materials and thicknesses.
Versatile Welding Modes
Four comprehensive welding modes: manual welding, standard MIG/MAG welding, high-speed single pulse, and high-speed double pulse. The reverse connection method enables gas-free protective welding operations for added flexibility.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MIG-280X |
| Rated Input Voltage | AC380V±10% 50Hz 3PH |
| Rated Input Power | 9.2KVA |
| Rated Input Current | 14A |
| Rated Load Duty Cycle | 60% |
| Output Current Range | 10~280A |
| No-load Output Voltage | 70V |
| Power Factor | ≥0.93 |
| Efficiency | ≥85% |
| Wire Diameter | Ø0.8/Ø1.0/Ø1.2/Ø1.6mm |
| Gas Flow Rate | 5~15L/min |
| Insulation Class | F |
| Main Unit Dimensions | 90.5×44.5×63.5cm |
| Main Unit Weight | 48kg |
| Wire Feeder Dimensions | 66×28.5×46.5cm |
| Wire Feeder Weight | 21kg |
Synergic Control System
The MIG-280X features an advanced synergic control system that automatically coordinates multiple welding parameters based on a single adjustment. Instead of manually setting voltage and wire feed speed separately, the synergic system links these parameters together, allowing welders to make adjustments with a single control.
Simplified Operation
The machine's computer precisely coordinates wire feed speed, voltage, and pulse parameters, creating an intuitive "one knob" control system that maintains optimal parameter relationships.
Consistent Quality
Automatic parameter coordination ensures consistent weld quality across different materials and thicknesses, reducing the possibility of operator error.
Reduced Setup Time
Quick setup and parameter adjustment allows for faster transitions between different welding tasks and materials, increasing overall productivity.

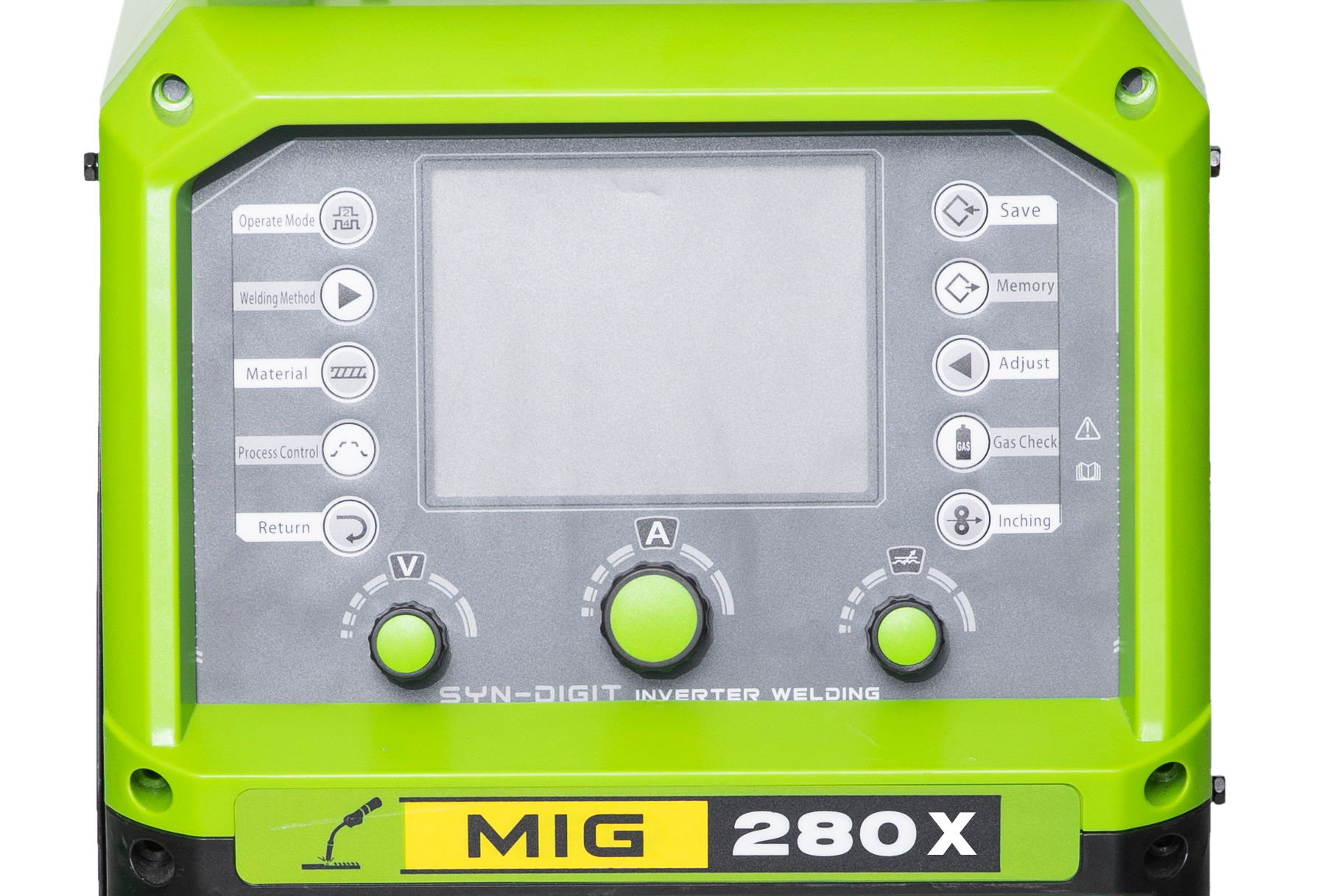

Control Panel Overview
The MIG-280X features a comprehensive control panel with intuitive organization and bilingual labeling:
Parameter Control
- Dual adjustment knobs for voltage (V) and amperage (A)
- Precise control over voltage, arc voltage, inductance, current, wire speed, and plate thickness
- Complete welding process flow control from pre-gas to post-gas phases
- Additional parameters: frequency, welding time, duty cycle, interval time, and amplitude
Operation Modes
- 2T: Standard two-stroke operation
- Special 2T: Enhanced two-stroke operation
- 4T: Four-stroke operation for longer welds
- Spot Welding (点焊) and Continuous Spot Welding (连续点焊)
- Function buttons for save, recall, wire check, gas check, and factory reset
Welding Methods
- Single Pulse (单脉冲) welding
- Double Pulse (双脉冲) welding
- Manual Welding (手工焊)
- MIG/MAG Welding (气保焊)
- Welding process control from pre-flow gas through arc end and post-flow gas
Material Compatibility
The MIG-280X welding machine is engineered to work with a diverse range of materials, making it exceptionally versatile for various welding applications:
Carbon Steel
碳钢Stainless Steel
不锈钢Aluminum-Silicon
铝硅Aluminum-Magnesium
铝镁Copper & Copper Alloys
铜及铜合金Other Non-ferrous Metals
其他有色金属Wire Compatibility
The MIG-280X supports a wide range of wire diameters to accommodate various welding applications:
- Ø0.8mm - For thin materials and delicate work
- Ø1.0mm - For general-purpose welding applications
- Ø1.2mm - For medium to heavy-duty applications
- Ø1.6mm - For heavy-duty industrial applications
Applications
The MIG-280X's versatile capabilities make it suitable for a wide range of welding applications:
Industrial Manufacturing
- Heavy equipment fabrication
- Production line welding
- Gas-free protective welding using reverse connection method
Specialized Materials
- Aluminum fabrication (0.5-6mm thickness)
- Stainless steel precision welding
- Copper and copper alloy joining
Advanced Techniques
- TIG-like fish-scale pattern welding
- Spatter-free pulse welding
- Precision control for critical applications
The machine's super double pulse technology is particularly effective for aluminum alloy workpieces with thickness of 0.5-6mm, creating high-quality welds with fish-scale pattern formation similar to TIG welding but with significantly higher efficiency.
Product Advantages
Performance
- High Power Output: 60% duty cycle with output current range of 10-280A
- Energy Efficient: High power factor (≥0.93) and efficiency (≥85%)
- Superior Display: LED large display screen for intuitive parameter visualization
Versatility
- Multiple Welding Modes: Four distinct welding methods including gas-free capability
- Material Compatibility: Works with various metals and alloys
- Wire Diameter Range: Compatible with Ø0.8mm to Ø1.6mm wire
User Experience
- Program Storage: Save up to 10 welding programs
- Feedback System: Wire feeder with speed feedback monitoring
- Comprehensive Controls: Intuitive interface with extensive parameter adjustment
Summary
The MIG-280X High Speed Pulse MIG Welding Machine represents an industrial-grade solution that balances power, precision, and user-friendly operation. With its advanced synergic control system, multiple welding modes, and comprehensive parameter adjustment capabilities, it delivers exceptional results across a wide range of materials and applications.
Key Highlights
- Advanced LED display system with precise parameter adjustment
- Wire feeder with speed feedback monitoring for consistent performance
- Four versatile welding modes with program storage capability
- Super double pulse welding for aluminum alloys up to 6mm thickness
- Gas-free protective welding capability through reverse connection method
- Compatible with multiple materials including carbon steel, stainless steel, aluminum alloys, and copper
The MIG-280X excels in aluminum alloy welding, producing splash-free welds with fish-scale patterns similar to TIG welding but with higher efficiency. Its comprehensive control panel, feedback monitoring system, and versatile material compatibility make it an ideal solution for professionals seeking a high-performance welding machine for demanding industrial applications.
