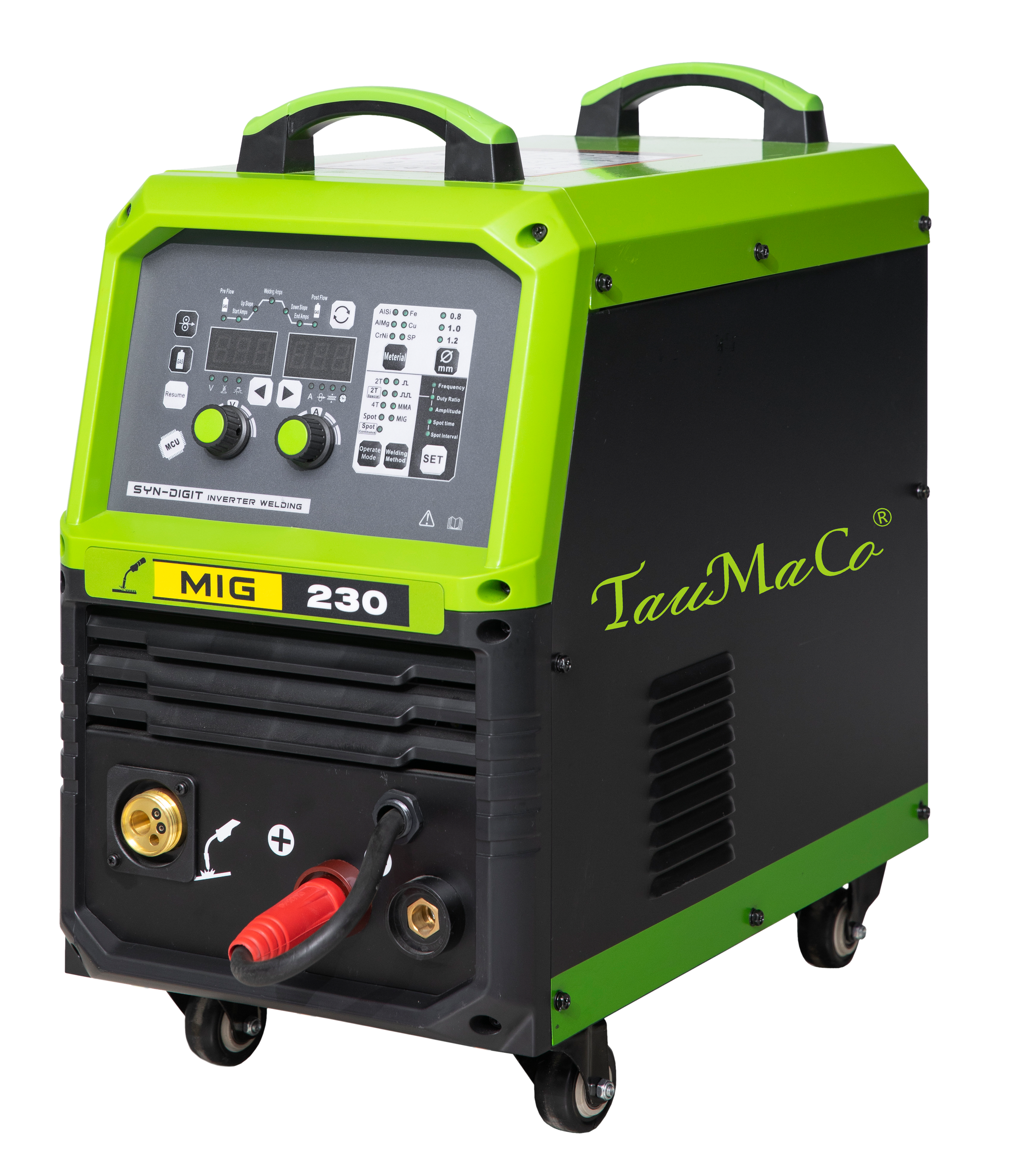

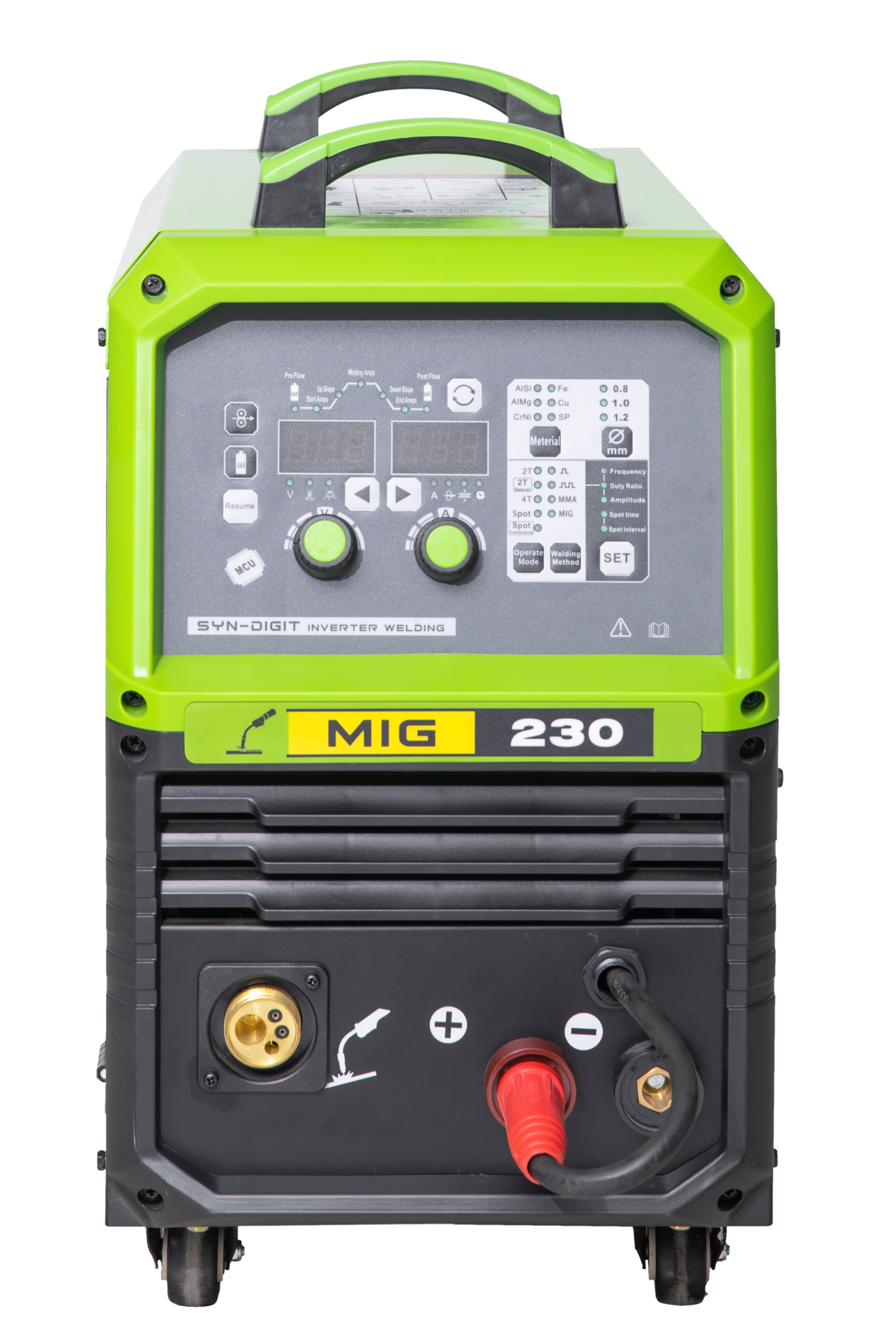

MIG-230 High Speed Pulse MIG Welding Machine
The MIG-230 is a professional-grade high-speed pulse MIG welding machine designed for versatility and precision. With its advanced synergic control system and multiple welding modes, it offers exceptional performance for a wide range of materials and applications.
Key Features & Benefits
Versatile Welding Modes
Four comprehensive welding modes: manual welding, standard MIG welding, high-speed single pulse, and high-speed double pulse. The reverse connection method enables gasless welding operations for added flexibility.
Advanced Program Storage
Store up to 10 welding programs with comprehensive functionality including 2T/4T/Special 2T/spot welding/continuous spot welding operations for quick recall of optimal settings.
Superior Pulse Technology
Specialized super double pulse welding for multiple materials with splash-free operation on 0.5-5mm aluminum alloy workpieces. Creates TIG-like fish-scale pattern formation with significantly higher efficiency.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MIG-230 |
| Rated Input Voltage | AC220V±10% 50Hz 1PH AC380V±10% 50Hz 3PH |
| Rated Input Power | 7.6KVA |
| Rated Input Current | 34.5A (220V) / 11.8A (380V) |
| Rated Duty Cycle | 60% |
| Output Current Range | 10~230A |
| No-load Output Voltage | 65V |
| Power Factor | ≥0.93 |
| Efficiency | ≥85% |
| Wire Diameter | Ø0.8/Ø1.0/Ø1.2mm |
| Gas Flow Rate | 5~15L/min |
| Insulation Class | F |
| Machine Dimensions | 54.5×30.5×54.5cm |
| Net Weight | 24kg |
Synergic Control System
The MIG-230 features an advanced synergic control system that automatically coordinates multiple welding parameters based on a single adjustment. Instead of manually setting voltage and wire feed speed separately, the synergic system links these parameters together, allowing welders to make adjustments with a single control.
Simplified Operation
The machine's computer precisely coordinates wire feed speed, voltage, and pulse parameters, creating an intuitive "one knob" control system that maintains optimal parameter relationships.
Consistent Quality
Automatic parameter coordination ensures consistent weld quality across different materials and thicknesses, reducing the possibility of operator error.
Reduced Setup Time
Quick setup and parameter adjustment allows for faster transitions between different welding tasks and materials, increasing overall productivity.

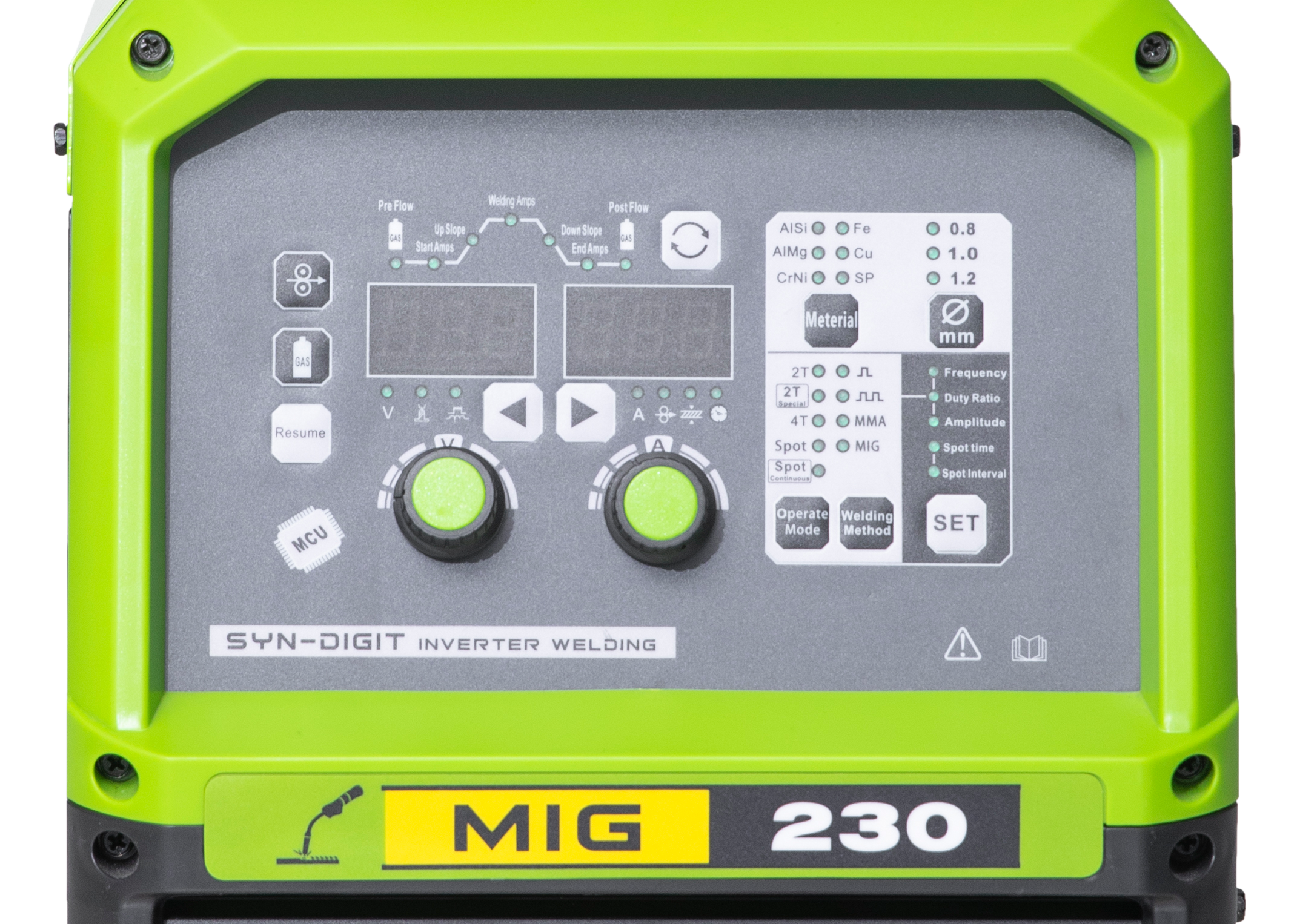

Control Panel Overview
The MIG-230 features an intuitive control panel designed for efficient operation with comprehensive parameter management:
Parameter Control
- Dual adjustment knobs for voltage (V) and amperage (A)
- Precise control over voltage, arc voltage, inductance, current, wire speed, and plate thickness
- Complete gas flow control including pre-flow, post-flow, upslope, and downslope phases
Operation Modes
- 2T: Standard two-stroke operation
- Special 2T: Enhanced two-stroke operation
- 4T: Four-stroke operation for longer welds
- Spot Welding (点焊) and Continuous Spot Welding (连续点焊)
Welding Methods
- Single Pulse (单脉冲) welding
- Double Pulse (双脉冲) welding
- Manual Welding (手工焊)
- MIG/MAG Welding (气保焊)
Material Compatibility
The MIG-230 welding machine is engineered to work with a diverse range of materials, making it exceptionally versatile for various welding applications:
Carbon Steel
碳钢Stainless Steel
不锈钢Aluminum-Silicon
铝硅Aluminum-Magnesium
铝镁Copper & Copper Alloys
铜及铜合金Other Non-ferrous Metals
其他有色金属Machine Features
- Integrated wire feeder for smooth wire delivery
- Compatible with 20/30cm wire spools
- Wire diameter compatibility: Ø0.8mm, Ø1.0mm, and Ø1.2mm
- Dual voltage capability: 220V single-phase or 380V three-phase power
Applications
The MIG-230's versatile capabilities make it suitable for a wide range of welding applications:
Precision Work
- Thin material welding (0.5-5mm)
- Detailed fabrication projects
- Automotive components and repairs
Industrial Applications
- Sheet metal fabrication
- General manufacturing processes
- Production environments requiring high efficiency
Specialized Welding
- Aluminum fabrication with fish-scale pattern requirements
- Stainless steel precision welding
- Non-ferrous metal joining applications
The machine's super double pulse technology is particularly effective for aluminum alloy workpieces with thickness of 0.5-5mm, creating high-quality welds with fish-scale pattern formation similar to TIG welding but with significantly higher efficiency.
Product Advantages
Performance
- High Power Output: 60% duty cycle with output current range of 10-230A
- Energy Efficient: High power factor (≥0.93) and efficiency (≥85%)
- Precise Control: Advanced synergic system for parameter coordination
Versatility
- Multiple Welding Modes: Four distinct welding methods
- Material Compatibility: Works with various metals and alloys
- Dual Voltage: Compatible with both 220V and 380V power supplies
User Experience
- Program Storage: Save up to 10 welding programs
- Integrated Features: Built-in wire feeder for convenience
- Comprehensive Controls: Intuitive interface with extensive parameter adjustment
Summary
The MIG-230 High Speed Pulse MIG Welding Machine represents a professional-grade solution that balances versatility, precision, and user-friendly operation. With its advanced synergic control system and multiple welding modes, it delivers exceptional results across a wide range of materials and applications.
Key Highlights
- Four versatile welding modes with program storage capability
- Specialized pulse technology for superior welding results
- Compatible with multiple materials including carbon steel, stainless steel, aluminum alloys, and copper
- Dual voltage capability for flexible deployment in various workshop environments
The MIG-230 excels in aluminum alloy welding, producing splash-free welds with TIG-like fish-scale patterns at higher efficiency. Its intuitive control panel, comprehensive parameter adjustment capabilities, and versatile material compatibility make it an ideal solution for professionals seeking a high-performance welding machine that combines advanced technology with ease of use.
