MIG Welding Machines Series
-
Process: DC TIG, Stick, MMA, ARC
Input: AC 220V±10% 1PH, 4.2 KVA
Output: TIG: 190A / MMA: 150A
-
Input: 1220V/2380V 50Hz, 9.8 KVA
Output: MMA: 200A & TIG: 250A
Current Range: 5~315A
-
Input: 3~380V 50Hz, 12.5KVA/8.7KVA
Output: MMA: 280A & TIG: 315A
Current Range: 5~315A
-
Input: AC 380V±10%, MMA: 17.84KVA / TIG: 12.88KVA
Output: 400A (TIG), 400A (MMA)
Duty Cycle: 60% (40°C)
-
Input: AC380V±10% 3PH
Output: MMA: 20-315A / TIG: 5-315A
AC Features: 20-100Hz frequency, 10-50% clear width
Pulse Features: 0.2-20Hz frequency, 10-90% width
TIG Series Welding Machines
Professional TIG welding solutions engineered for precision, versatility, and superior performance across diverse applications
Series Highlights
Advanced Pulse Technology
Precise control over welding parameters with adjustable pulse frequency, peak current, base current, and pulse width for superior weld quality and appearance.
Versatile Process Options
Multi-process capability with DC TIG, Pulse TIG, AC/DC TIG (select models), and MMA/Stick welding modes to handle diverse materials and applications.
Professional Performance
High-frequency arc ignition, pre/post gas flow control, and slope up/down adjustments with 60% duty cycle at 40°C for industrial-grade reliability.
IMPORTANT DISCLAIMER
All technical specifications are provided for reference only and may vary based on specific welding conditions, materials, and power sources. Always refer to the product manual for complete operational guidelines and safety information. Proper training and protective equipment are required for welding operations. Performance parameters may vary depending on material properties, operator skill, and specific application requirements.
Technical Specifications Comparison
| Model | Specifications | Primary Applications | Industry Sectors |
|---|---|---|---|

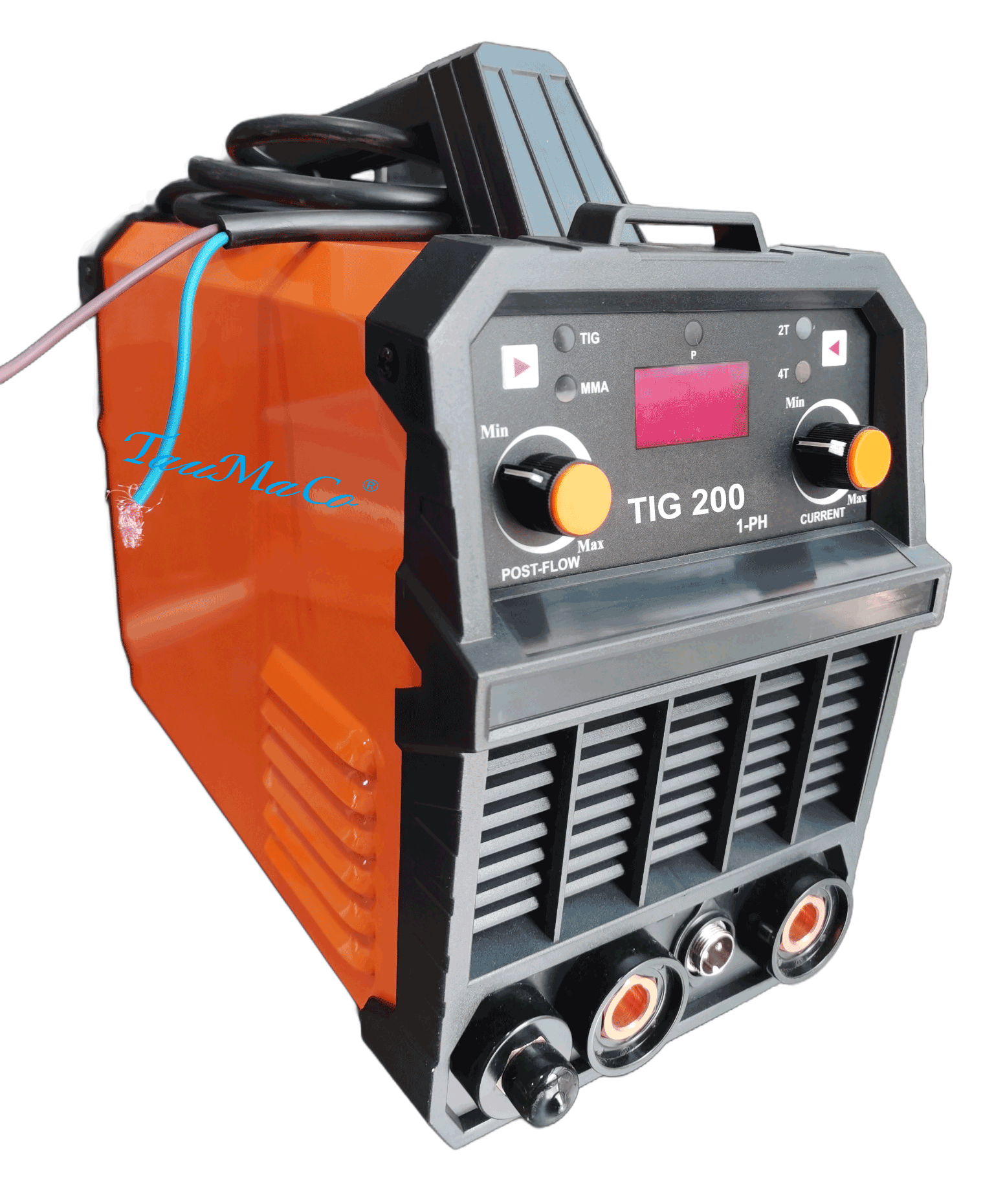

| TIG 200 |
|
|
Automotive Small Workshops DIY/Hobbyist |
| TIG 250P |
|
|
Metal Fabrication HVAC General Manufacturing |

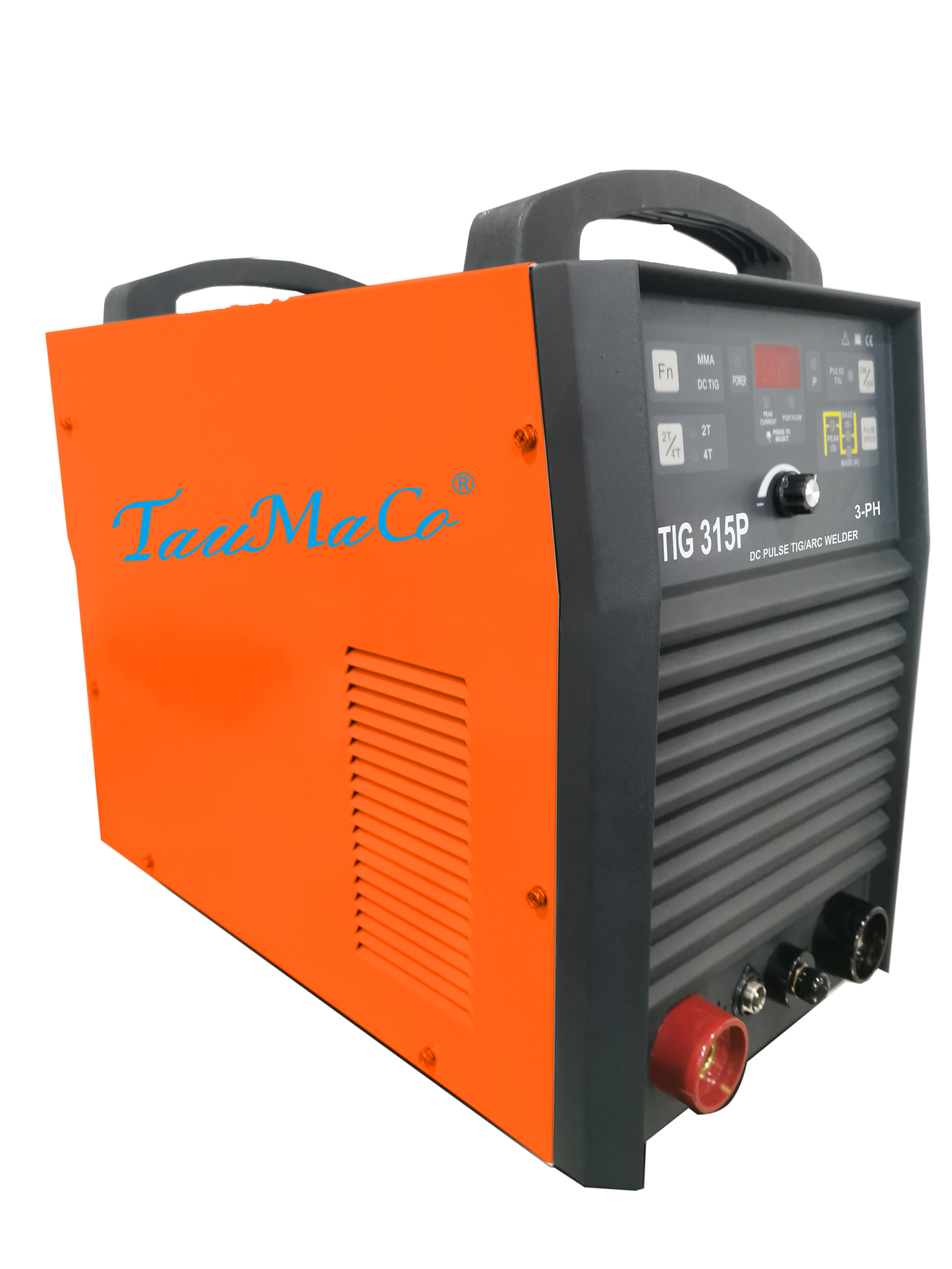

| TIG 315P |
|
|
Industrial Manufacturing Fabrication Shops Construction |
| TIG 400P |
|
|
Heavy Industry Shipbuilding Pipeline Construction |

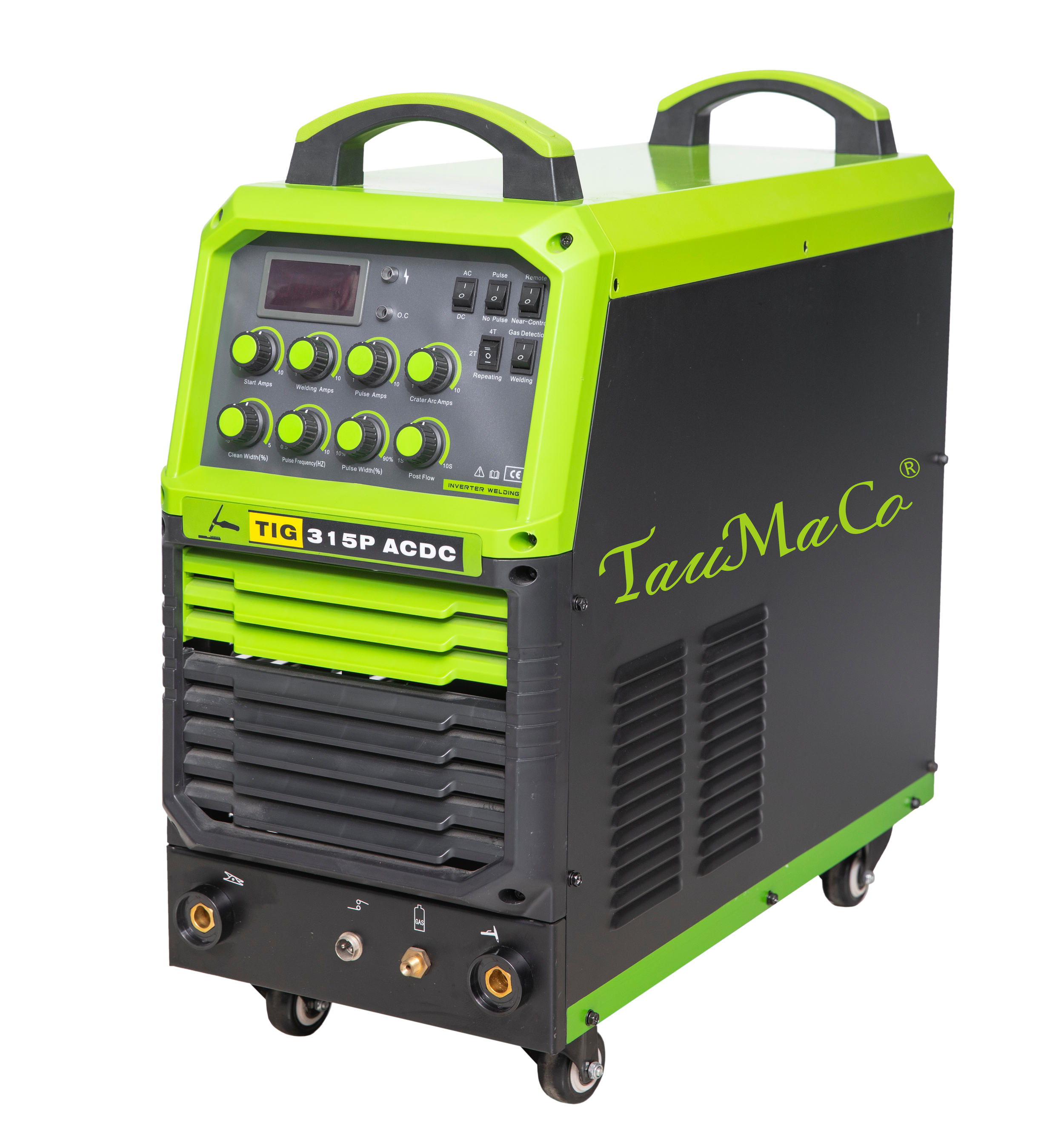

| TIG 315PAC |
|
|
Aerospace Aluminum Fabrication Food & Beverage Equipment |
Product Categories
| Category | Model | Key Features |
|---|---|---|
| Entry Level DC TIG | TIG 200 |
• Single phase 220V operation • Compact and lightweight design (7.5kg) • Hot Start function • Basic DC TIG and MMA capabilities |
| Professional DC Pulse | TIG 250P TIG 315P |
• Pulse welding functionality • Advanced parameter control • Pre/post flow and slope adjustments • High frequency arc ignition • Versatile input power options |
| Industrial Series | TIG 400P TIG 315PAC |
• High output current capacity • AC/DC capability (TIG 315PAC) • Complete pulse parameter control • Advanced crater filling functions • Three-phase power for industrial use |
TIG Welding Machines Series
Explore our specialized range of TIG welding power sources engineered for precision and superior finish quality. Our machines deliver exceptional arc stability, fine control capabilities, and advanced features for professional welding results on critical applications.
Key Features
Advanced Technology
- HF and Lift-Arc ignition systems for contamination-free starts
- AC/DC functionality for welding all common metals
- Pulse TIG capability for heat control on thin materials
- Programmable memory slots for storing optimal parameters
Professional Design
- Microprocessor-controlled inverter technology
- Adjustable pre/post gas flow for weld pool protection
- Precise amperage control with foot pedal compatibility
- Water cooling interfaces for extended high-amperage operation
Safety Features
- VRD (Voltage Reduction Device) for increased operator safety
- Thermal overload protection with warning indicators
- Self-diagnostic system for troubleshooting assistance
- IP23 rating for moisture and dust resistance
Applications
- Aerospace component fabrication
- Stainless steel and aluminum welding
- Pressure vessel manufacturing
- Precision fabrication industries
- Food and pharmaceutical equipment
- Thin material joining operations
Technical Support
Our technical team provides comprehensive support including:
- Tungsten electrode selection guidance
- Gas flow and shielding recommendations
- AC balance and frequency optimization
- Torch setup and maintenance assistance
