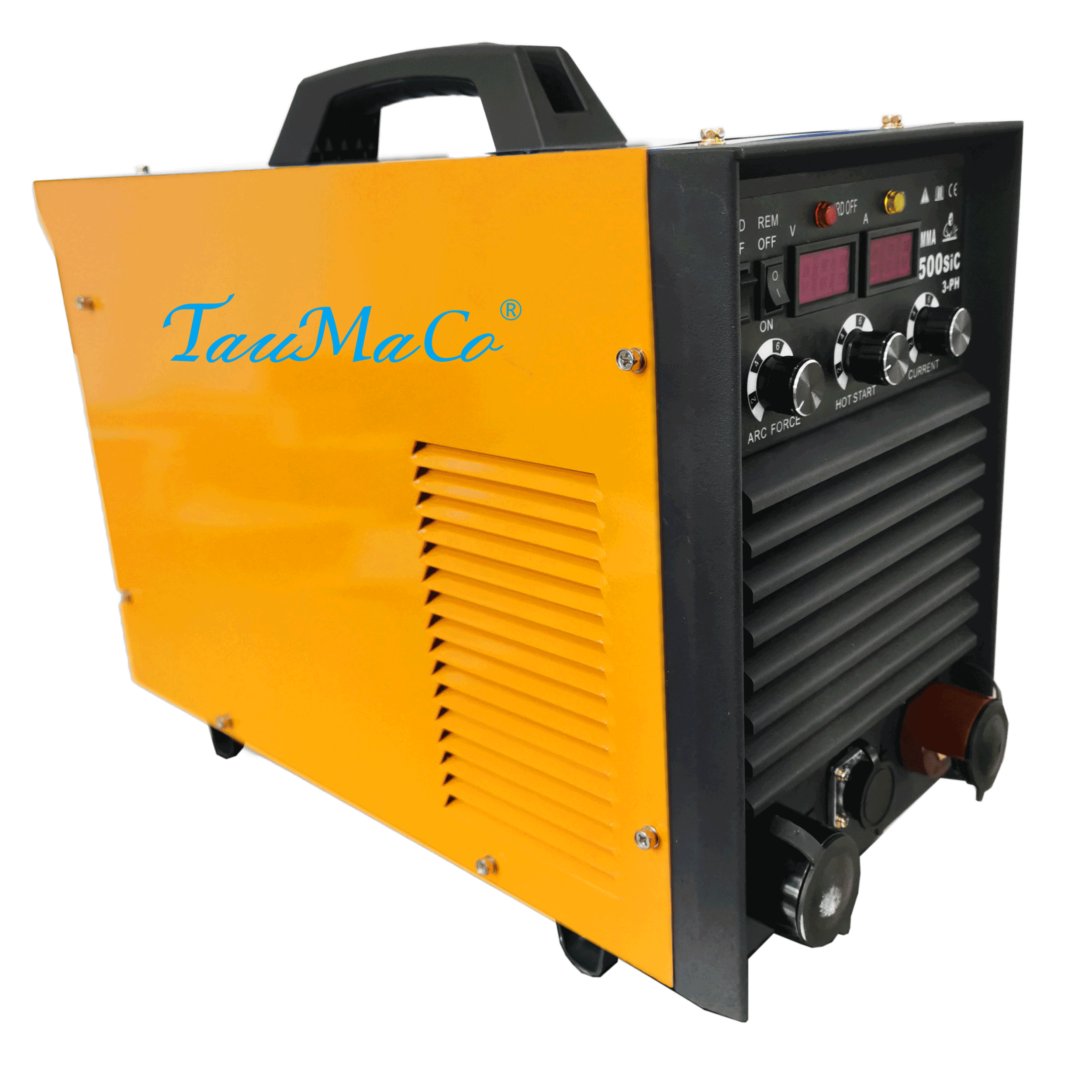

MMA-500SiC Silicon Carbide Welding Machine
Product Overview
Next-Generation Power
Advanced Silicon Carbide technology delivers superior performance with 85% efficiency
Industrial-Grade Performance
Exceptional 100% duty cycle at 500A for continuous heavy-duty operation
Versatile Applications
Supports both MMA welding and Carbon Arc Gouging for complete workflow solutions
Technical Specifications
| Model |
MMA-500SiC
Customizable upon request
|
| Power Specifications | |
| Power Frequency | 50 Hz |
| Rated Input Voltage | 3 Phase; 380V ±10% |
| Permissible Input Voltage Range | 320~415 V |
| Performance | |
| Rated Input Capacity | 21 KVA |
| Rated Input Current | 40 A |
| Output No-load Voltage | 75 V |
| Welding Current Range | 0-500 A |
| Rated Duty Cycle (40℃) | 100% |
| Output Current at 100% Duty Cycle | 500 A |
| Efficiency | 85% |
| Power Factor | 0.8 (Cosφ) |
| Features | |
| Technology |
Silicon Carbide Technology
Next-generation technology for welding power sources
|
| Welding Process | MMA, Carbon Arc Gouging |
| Applicable Welding Rod Diameter | Φ2.5--Φ5.0 mm |
| Arc Force Function | Yes |
| Hot Start Function | Yes |
| Long Cable Support | Up to 50 meters |
| General | |
| Quick Connector | 50-70 |
| Protection | Overheat |
| Cooling Method | Air Cooling |
| Handle | Yes |
| Enclosure/Standards/Approvals | |
| Insulation Class | H Grade |
| Enclosure Protection Level | IP21S |
| Dimensions and Weight | |
| Net Weight | 18 kg |
| Gross Weight | 19.6 kg |
| Dimensions (L×W×H) | 512.5 × 220 × 398 mm |
Key Features & Benefits
Silicon Carbide Advantage
- Next-generation power semiconductor technology
- Superior efficiency at 85%
- Enhanced thermal performance
Advanced Welding Functions
- Adjustable Arc Force for superior penetration
- Hot Start function for easy arc initiation
- Carbon Arc Gouging capability for material preparation
Industrial Performance
- 100% duty cycle at 500A output
- No downtime for cooling
- High power-to-weight ratio at only 18 kg
Compatibility
Power Supply Flexibility
Compatible with 3-phase power systems and generators with wide voltage tolerance (320~415V)
Process Versatility
Supports both MMA welding with rods from Φ2.5mm to Φ5.0mm and Carbon Arc Gouging applications
Extended Workspace Range
Supports welding cables up to 50 meters for reaching distant workpieces
Applications
Heavy Industrial Fabrication
500A output with 100% duty cycle makes it ideal for continuous heavy-duty operations
Remote Construction Sites
Generator compatibility with long cable support ensures versatility in field operations
Repair and Maintenance
Carbon Arc Gouging capability allows for material removal and weld preparation in a single machine
Product Advantages
Superior Welding Experience
High inverter frequency delivers smooth operation with reduced spatter and guaranteed penetration
Dual-Process Capability
Combined MMA welding and Carbon Arc Gouging functionality reduces the need for multiple machines
Field-Ready Design
Generator compatibility with stable output ensures consistent performance in remote locations
Summary
Advanced Technology
Silicon Carbide technology delivers 85% efficiency with superior thermal performance
Industrial Power
500A output at 100% duty cycle with Carbon Arc Gouging capability for complete workflow solutions
Versatile Operation
Generator compatible with long cable support up to 50 meters for extended workspace flexibility
