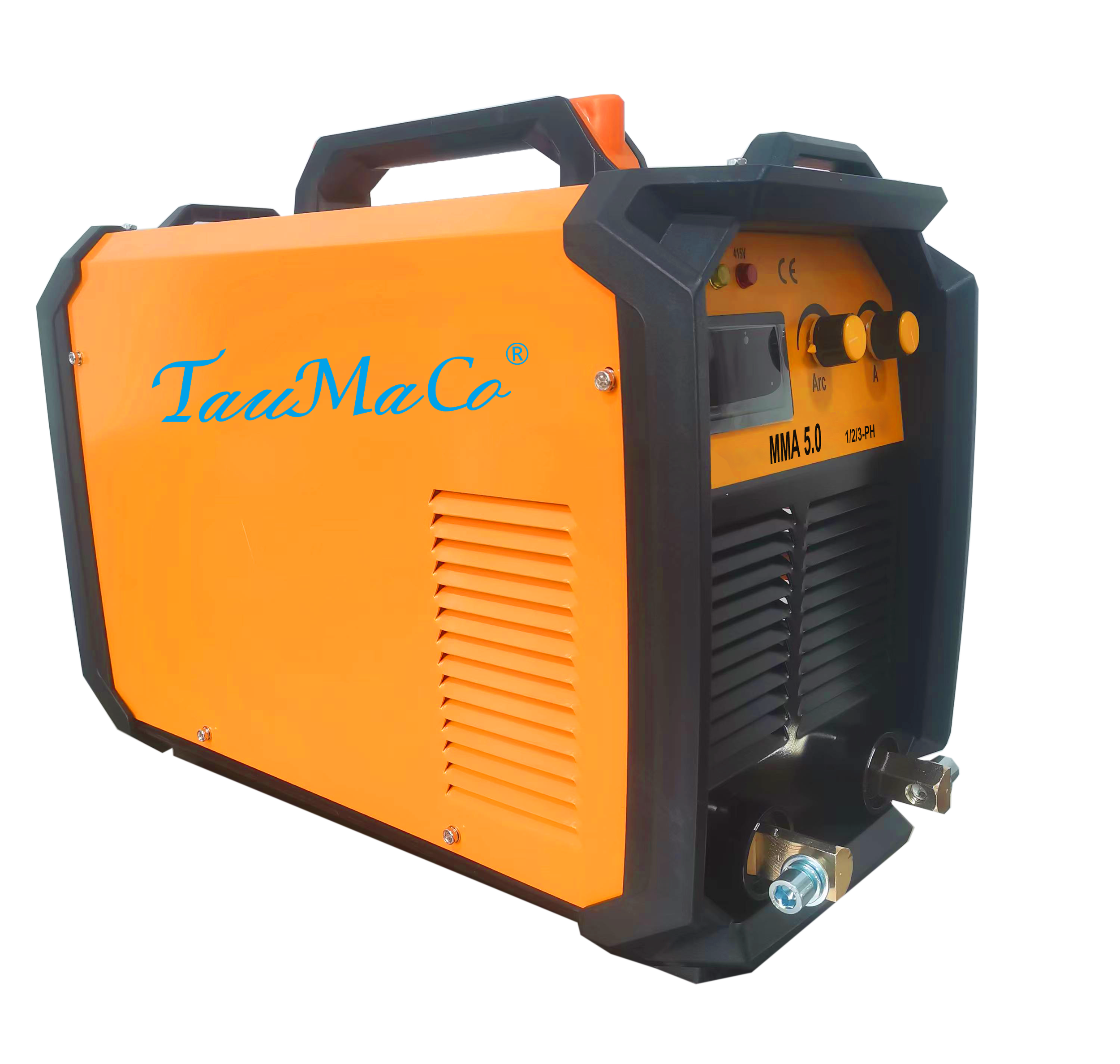

MMA 5.0 Arc Welding Machine
Product Overview
Multi-Phase Capability
Versatile 1/2/3 phase operation with up to 310A output on 3-phase power
Generator Compatible
Wide voltage range of 180V~490V for field operations and remote sites
Advanced Arc Control
Features Arc Force function for superior weld quality and control
Technical Specifications
| Model |
MMA 5.0
Customizable upon request
|
| Input Voltage | 1/2/3 PH: 180V~490V |
| Input Power | 7.80 KVA (1ph/2ph) / 14 KVA (3ph) |
| REAL Max Output Current | 200A @ 1ph/2ph; 310A @ 3ph |
| Rod Compatibility | Dedicated to 5.0mm rods |
| VRD | 24V |
| No Load Voltage |
75V (220V input) / 65V (380V input)
|
| Advanced Functions |
Hot Start, Arc Force
|
| Protection & Insulation | IP 23S & H |
| Dimensions | 457×228×373 mm |
| Weight | 12 kg |
Key Features & Benefits
Heavy-Duty Welding Power
- Optimized for 5.0mm rod welding
- Up to 310A output on 3-phase power
- Consistent 60% duty cycle across all modes
Field-Ready Design
- Generator compatible operation
- Wide voltage range: 180V~490V
- Arc Force function for challenging conditions
Professional Features
- Hot Start capability
- 24V VRD system for safety
- IP 23S protection with H-class insulation
Compatibility
Power Source Flexibility
Compatible with 1/2/3 phase power systems and generators from 180V to 490V
Electrode Optimization
Specifically engineered for optimal performance with 5.0mm welding rods
Environmental Adaptability
IP 23S protection with H-class insulation for various work environments
Applications
Heavy-Duty Industrial Welding
310A output capacity for demanding industrial applications with 5.0mm rods
Remote Construction Sites
Generator compatibility and multi-phase operation for field work
Structural Fabrication
Consistent performance with 5.0mm rods for heavy structural steel applications
Product Advantages
Adaptive Power System
Seamless operation across 1/2/3 phase power with optimized output for each
Enhanced Welding Control
Arc Force function and Hot Start for superior arc stability with large 5.0mm rods
Industrial-Grade Performance
60% duty cycle at both 200A and 310A output levels for continuous operation
Summary
Heavy-Duty Welding Solution
Versatile 1/2/3 phase operation with up to 310A output for 5.0mm rod applications
Field & Factory Ready
Generator compatible with wide voltage range and advanced arc control functions
Industrial Durability
Robust 12 kg design with 457×228×373 mm dimensions for demanding environments
Arc Welding Machines Series
Explore our specialized range of arc welding power sources engineered for precision and reliability. Our machines deliver stable arc performance and accurate control for professional welding results across various applications.
Key Features
Advanced Technology
Digital control panels for precise parameter adjustment
Stable arc characteristics across the entire amperage range
Anti-stick function for improved electrode welding
Hot start technology for optimal arc initiation
Professional Design
Robust construction for industrial environments
Efficient cooling systems for extended operation
IP23 protection class for outdoor use capability
Compact design with integrated carrying handles
Safety Features
VRD (Voltage Reduction Device) for increased operator safety
Thermal overload protection
Fan-on-demand cooling system
CE certified for international safety standards
Applications
Industrial fabrication
Construction sites
Shipbuilding
Pipeline welding
Maintenance and repair
Manufacturing facilities
Technical Support
Our technical team provides comprehensive support including:
Machine selection guidance
Parameter optimization
Maintenance recommendations
Troubleshooting assistance
