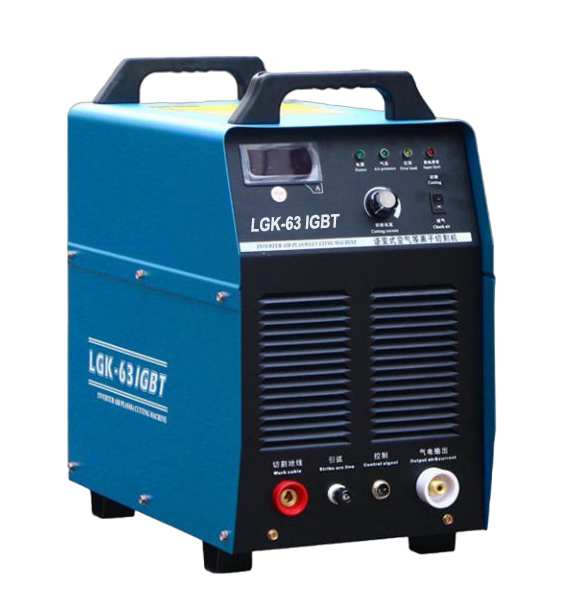

LGK-63IGBT Plasma Cutting System
Product Overview
The LGK-63IGBT is a compact yet powerful plasma cutting system designed for professional industrial applications. Featuring IGBT inverter technology, this system delivers precise cutting performance with a 63A output capacity, making it ideal for small to medium fabrication shops, maintenance facilities, and production environments where quality and reliability are essential.
Key Features & Benefits
- IGBT inverter technology provides stable performance and energy efficiency
- 63A output capacity for cutting carbon steel up to 12mm with exceptional quality
- 60% duty cycle at 40°C ensures reliable operation in demanding environments
- Air cooling system optimizes component longevity and performance stability
- Compact design with dimensions of 585×280×485mm facilitates workspace efficiency
- IP21S protection rating ensures durability in industrial environments
Specifications
| Item | Unit | LGK-63IGBT |
|---|---|---|
| Input Power | V/Hz | 3~380±15% 50/60 |
| Rated Input Capacity | KVA | 9.5 |
| Rated Input Current | A | 14.5 |
| Rated Output Current | A | 63 |
| Rated Output Voltage | V | 106 |
| Rated Open Circuit Voltage | V | 300 |
| Rated Duty Cycle | - | 60% (40°C) |
| Output Current Adjust Range | A | 30~63 |
| Arc Voltage Output Ratio | - | 1:1/1:20/1:50/1:100 |
| Quality Cut Thickness (Carbon Steel) | mm | 0.3~12 |
| Handheld Severance Cut Thickness (Carbon Steel) | mm | 25 |
| Plasma Gas | - | Compressed Air |
| Air Pressure | MPa | 0.3~0.5 |
| Torch Cooling Mode | - | Air Cooling |
| Power Source Cooling Mode | - | Air Cooling |
| Insulation Grade | - | F |
| Ingress Protection | - | IP21S |
| Dimension (L×W×H) | mm | 585×280×485 |
| Net Weight | Kg | 26 |
Compatibility
The LGK-63IGBT is engineered for versatility across multiple applications:
- Compatible with standard compressed air systems (0.3~0.5 MPa)
- Works with industry-standard consumables for cost-effective maintenance
- Integrates with CNC systems for automated cutting operations
Applications
- Light to medium metal fabrication
- Automotive repair and restoration
- HVAC ductwork production
- General maintenance and repair operations
- Small-scale manufacturing
- Educational and training environments
Product Advantages
Performance
- Stable arc for consistent cutting quality
- Adjustable current range (30-63A) for versatile applications
- Precision cutting of materials up to 12mm thickness
Reliability
- IGBT technology for superior electrical efficiency
- 60% duty cycle for extended operational periods
- IP21S protection against environmental factors
Usability
- Lightweight design at only 26kg for enhanced portability
- Compact dimensions for workspace optimization
- Multiple arc voltage output ratios for precision control
Summary
The LGK-63IGBT Plasma Cutting System represents an excellent balance of power, precision, and portability for professional cutting applications. With its 63A capacity, ability to quality-cut carbon steel up to 12mm, and compact industrial design, this system delivers reliable performance for small to medium fabrication shops and maintenance facilities. The integration of IGBT technology ensures energy efficiency and arc stability, while the 60% duty cycle at 40°C allows for extended operation in demanding industrial environments. With its air-cooled design and IP21S protection rating, the LGK-63IGBT provides the durability and performance needed for professional cutting applications in a more compact and portable package.
