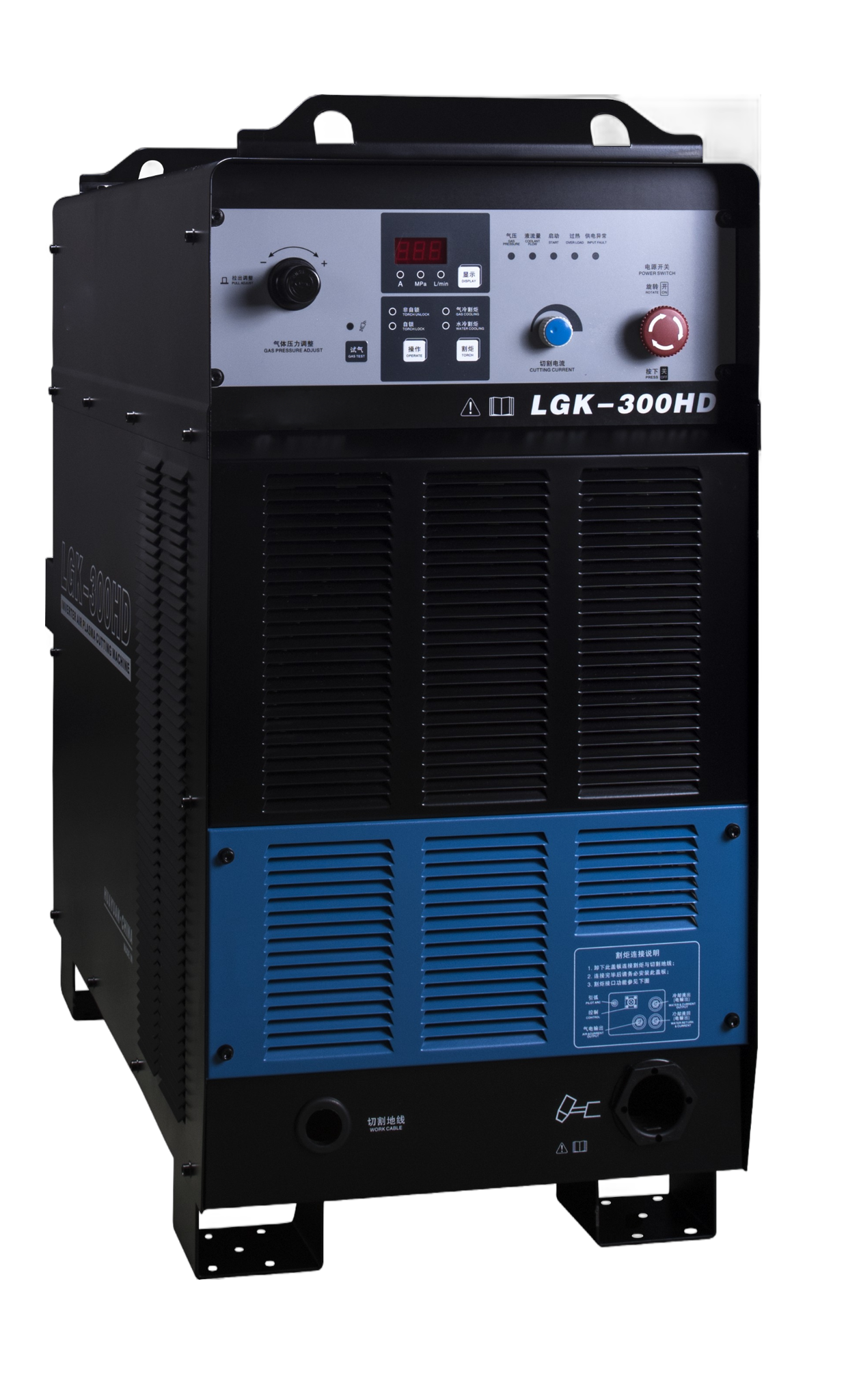

LGK-300HD Plasma Cutting System
Product Overview
The LGK-300HD is a high-performance heavy-duty plasma cutting system designed for demanding industrial applications. With its powerful 300A output capacity and advanced non-contact arc ignition technology, this system delivers exceptional cutting performance on carbon steel up to 50mm thickness with precision and efficiency. The HD series represents the pinnacle of industrial plasma cutting technology, engineered for continuous operation in the most challenging environments.
Key Features & Benefits
- Powerful 300A output capacity for cutting carbon steel up to 50mm with exceptional quality
- 100% duty cycle at 40°C ensures continuous operation in demanding environments
- High efficiency (92%) and power factor (0.92) for reduced operational costs
- Non-contact arc ignition system for reliable starts and extended consumable life
- Dual cooling options (air/water) for torch flexibility in various applications
- IP21S protection rating ensures durability in industrial environments
Specifications
| Item | Unit | LGK-300HD |
|---|---|---|
| Input Power | V/Hz | 3~380±15% 50/60 |
| Rated Input Capacity | kVA | 70.4 |
| Rated Output Current | A | 300 |
| Rated Output Voltage | V | 200 |
| Rated Open Circuit Voltage | V | 370 |
| Rated Duty Cycle | - | 100% (40°C) |
| Efficiency | - | 92% |
| Power Factor | - | 0.92 |
| Output Current Adjust Range | A | 60~300 |
| Quality Cut Thickness (Carbon Steel) | mm | 1~50 |
| Severance Cut Thickness (Carbon Steel) | mm | 100 |
| Arc Starting Method | - | Non-contact arc ignition |
| Plasma Gas | - | Compressed Air |
| Gas Supply Pressure | MPa | 0.5~0.8 |
| Torch Cooling Method | - | Air/Water Cooling |
| Power Source Cooling Method | - | Air Cooling |
| Insulation Grade | - | Class F |
| Protection Class | - | IP21S |
| Dimensions (L×W×H) | mm | 985×445×910 |
| Net Weight | kg | 129 |
Compatibility
The LGK-300HD is engineered for versatility across multiple applications:
- Compatible with standard compressed air systems (0.5~0.8 MPa)
- Supports both air-cooled and water-cooled torch configurations
- Works with industry-standard consumables for cost-effective maintenance
- Integrates with CNC systems for automated cutting operations
Applications
- Heavy metal fabrication and manufacturing
- Shipbuilding and maritime construction
- Large-scale structural steel work
- Industrial equipment manufacturing
- Heavy equipment repair and maintenance
- Production environments requiring continuous operation
Product Advantages
Superior Performance
- High-capacity 300A output for demanding applications
- Quality cutting of materials up to 50mm thickness
- Severance cutting capability up to 100mm
Enhanced Efficiency
- 92% electrical efficiency reduces operational costs
- 0.92 power factor minimizes electrical system impact
- 100% duty cycle enables continuous production
Operational Reliability
- Non-contact arc ignition for consistent starts
- Dual cooling options for application flexibility
- IP21S protection against environmental factors
Summary
The LGK-300HD Plasma Cutting System represents the pinnacle of industrial plasma cutting technology. With its powerful 300A output capacity, ability to quality-cut carbon steel up to 50mm, and severance cutting capability up to 100mm, this unit delivers exceptional performance for heavy industrial applications. The integration of non-contact arc ignition ensures reliable starts and extended consumable life, while the 100% duty cycle at 40°C allows for continuous operation in demanding production environments. With high efficiency (92%) and power factor (0.92), the LGK-300HD minimizes operational costs while maximizing productivity. The dual cooling options provide flexibility for various applications, making the LGK-300HD an ideal solution for fabrication shops, manufacturing facilities, and industrial operations requiring power, precision, and reliability.
