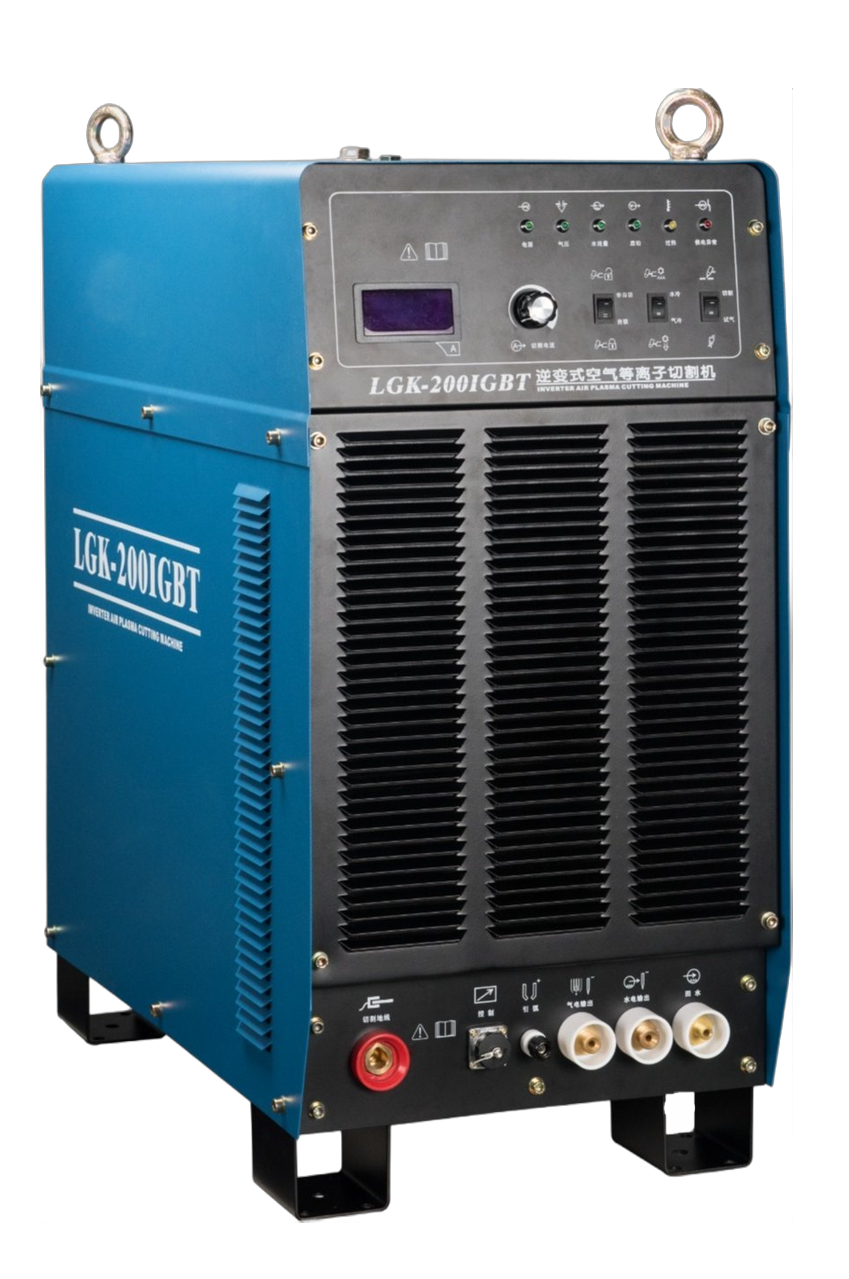

LGK-200IGBT Plasma Cutting System
Product Overview
The LGK-200IGBT is a high-capacity plasma cutting system designed for demanding industrial applications. Featuring advanced IGBT inverter technology, this system delivers exceptional cutting performance with a 200A output capacity, making it ideal for heavy fabrication shops, manufacturing facilities, and production environments where power, precision, and efficiency are essential.
Key Features & Benefits
- IGBT inverter technology provides superior performance and energy efficiency
- 200A output capacity for cutting carbon steel up to 45mm with exceptional quality
- 100% duty cycle at 40°C ensures continuous operation in demanding environments
- Dual cooling options (air/water) for torch flexibility in various applications
- Multiple arc voltage output ratios (1:1/1:20/1:50/1:100) for precise control
- IP21S protection rating ensures durability in industrial environments
Specifications
| Item | Unit | LGK-200IGBT |
|---|---|---|
| Input Power | V/Hz | 3~380±15% 50/60 |
| Rated Input Capacity | KVA | 38.8 |
| Rated Input Current | A | 71 |
| Rated Output Current | A | 200 |
| Rated Output Voltage | V | 160 |
| Rated Open Circuit Voltage | V | 315 |
| Rated Duty Cycle | - | 100% (40°C) |
| Output Current Adjust Range | A | 40~200 |
| Arc Voltage Output Ratio | - | 1:1/1:20/1:50/1:100 |
| Quality Cut Thickness (Carbon Steel) | mm | 1~45 |
| Handheld Severance Cut Thickness (Carbon Steel) | mm | 65 |
| Plasma Gas | - | Compressed Air |
| Air Pressure | MPa | 0.4~0.6 |
| Torch Cooling Mode | - | Air Cooling/Water Cooling |
| Power Source Cooling Mode | - | Air Cooling |
| Insulation Grade | - | F |
| Ingress Protection | - | IP21S |
| Dimension (L×W×H) | mm | 800×380×810 |
| Net Weight | kg | 82 |
Compatibility
The LGK-200IGBT is engineered for versatility across multiple applications:
- Compatible with standard compressed air systems (0.4~0.6 MPa)
- Supports both air-cooled and water-cooled torch configurations
- Works with industry-standard consumables for cost-effective maintenance
- Integrates with CNC systems for automated cutting operations
Applications
- Heavy metal fabrication and manufacturing
- Shipbuilding and maritime construction
- Large-scale structural steel work
- Industrial equipment manufacturing
- Heavy equipment repair and maintenance
- Production environments requiring continuous operation
Product Advantages
Performance
- High-capacity 200A output for demanding applications
- Quality cutting of materials up to 45mm thickness
- Precise control with multiple voltage output ratios
Reliability
- 100% duty cycle for continuous operation
- IGBT technology for superior electrical efficiency
- IP21S protection against environmental factors
Versatility
- Dual cooling options (air/water) for application flexibility
- Wide current range (40-200A) for various material thicknesses
- Suitable for both manual and CNC cutting operations
Summary
The LGK-200IGBT Plasma Cutting System represents the pinnacle of industrial plasma cutting technology. With its powerful 200A output capacity, ability to quality-cut carbon steel up to 45mm, and 100% duty cycle at 40°C, this unit delivers exceptional performance for heavy industrial applications. The integration of IGBT technology ensures energy efficiency and arc stability, while the dual cooling options provide flexibility for various applications. With its robust construction, comprehensive features, and industrial-grade protection, the LGK-200IGBT is an ideal solution for fabrication shops, manufacturing facilities, and industrial operations requiring power, precision, and reliability.
