LGK-120IGBT Plasma Cutting System | Professional Plasma Cutter

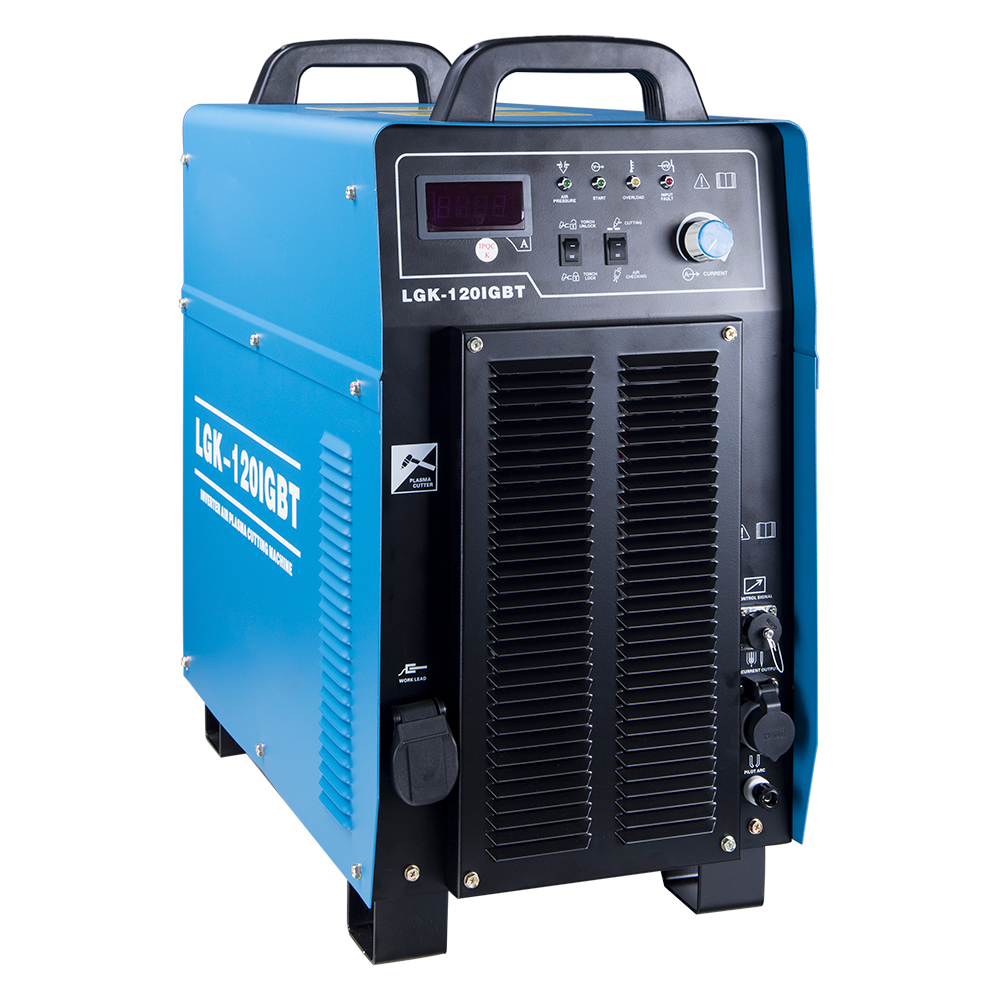

LGK-120IGBT Plasma Cutting System

Product Overview

The LGK-120IGBT is an advanced plasma cutting system designed for professional industrial applications. Featuring IGBT inverter technology, this system delivers precise cutting performance with a 120A output capacity, making it ideal for fabrication shops, maintenance facilities, and production environments where quality and reliability are paramount.

Key Features & Benefits

  • IGBT inverter technology provides stable performance and energy efficiency
  • 120A output capacity for cutting carbon steel up to 25mm with exceptional quality
  • 100% duty cycle at 40°C ensures continuous operation in demanding environments
  • Air cooling system optimizes component longevity and performance stability
  • Compact design with dimensions of 695×320×580mm facilitates workspace efficiency
  • IP21S protection rating ensures durability in industrial environments

Specifications

Technical Specifications
Item Unit LGK-120IGBT
Input Power V/Hz 3~380±15% 50/60
Rated Input Capacity KVA 22.4
Rated Input Current A 34
Rated Output Current A 120
Rated Output Voltage V 128
Rated Open Circuit Voltage V 300
Rated Duty Cycle - 100% (40°C)
Output Current Adjust Range A 30~120
Arc Voltage Output Ratio - 1:1/1:20/1:50/1:100
Quality Cut Thickness (Carbon Steel) mm 0.3~25
Handheld Severance Cut Thickness (Carbon Steel) mm 45
Plasma Gas - Compressed Air
Air Pressure MPa 0.4~0.6
Torch Cooling Mode - Air Cooling
Power Source Cooling Mode - Air Cooling
Insulation Grade - F
Ingress Protection - IP21S
Dimension (L×W×H) mm 695×320×580
Net Weight Kg 52

Compatibility

The LGK-120IGBT is engineered for versatility across multiple applications:

  • Compatible with standard compressed air systems (0.4~0.6 MPa)
  • Works with industry-standard consumables for cost-effective maintenance
  • Integrates with CNC systems for automated cutting operations

Applications

  • Metal fabrication and manufacturing
  • Automotive repair and restoration
  • HVAC ductwork production
  • Construction and structural steel work
  • Shipbuilding and repair
  • Agricultural equipment maintenance

Product Advantages

Performance

  • Stable arc for consistent cutting quality
  • Wide current range (30-120A) for versatile applications
  • 100% duty cycle for continuous operation

Reliability

  • IGBT technology for superior electrical efficiency
  • Optimized cooling system for component longevity
  • IP21S protection against environmental factors

Usability

  • Intuitive control interface for operator efficiency
  • Compact design for workspace optimization
  • Multiple arc voltage output ratios for precision control

Summary

The LGK-120IGBT Plasma Cutting System represents an optimal balance of power, precision, and reliability for professional cutting applications. With its 120A capacity, ability to quality-cut carbon steel up to 25mm, and robust industrial design, this system delivers exceptional performance for fabrication shops and manufacturing facilities. The integration of IGBT technology ensures energy efficiency and arc stability, while the 100% duty cycle at 40°C allows for continuous operation in demanding industrial environments. With its air-cooled design and IP21S protection rating, the LGK-120IGBT provides the durability and performance needed for professional cutting applications.

EN 60974-1: Welding Power Sources and Plasma Cutting Systems
EN 50199: Electromagnetic Compatibility (EMC) Standards
Low Voltage Directive (LVD)
Electromagnetic Compatibility (EMC) Directive
