WP27 | TIG Torches
Water Cooled TIG Welding Torch
High-capacity water-cooled TIG welding torch engineered for heavy-duty industrial applications, featuring an exceptional 500A DC rating with advanced water cooling system for continuous operation.
DC Rating
500 Amperes
Duty Cycle
100%
Electrode Range
1.6 - 6.4mm
Technical Specifications
| Parameter | Specification |
|---|---|
| DC Current Rating | 500 Amperes |
| Duty Cycle | 100% |
| Tungsten Electrode Range | 1.6 - 6.4mm |
| Cooling System | Water Cooled |
| Compliance Standard | EN60974-7 |
Key Features
Performance
- 500A DC capacity
- 100% duty cycle
- Extended electrode range
Cooling System
- Advanced water cooling
- Continuous operation capability
- Enhanced heat dissipation
Design
- Heavy-duty construction
- Optimized water flow
- Industrial-grade durability
Compliance Standards
Industry Certification
- EN60974-7 certified
- International safety standards compliant
- Industrial specifications
Performance Summary
Key Capabilities
- Industry-leading 500A DC rating for heavy-duty applications
- 100% duty cycle for continuous operation
- Advanced water-cooling system for maximum performance
- Wide electrode range: 1.6 - 6.4mm
- Heavy-duty industrial construction

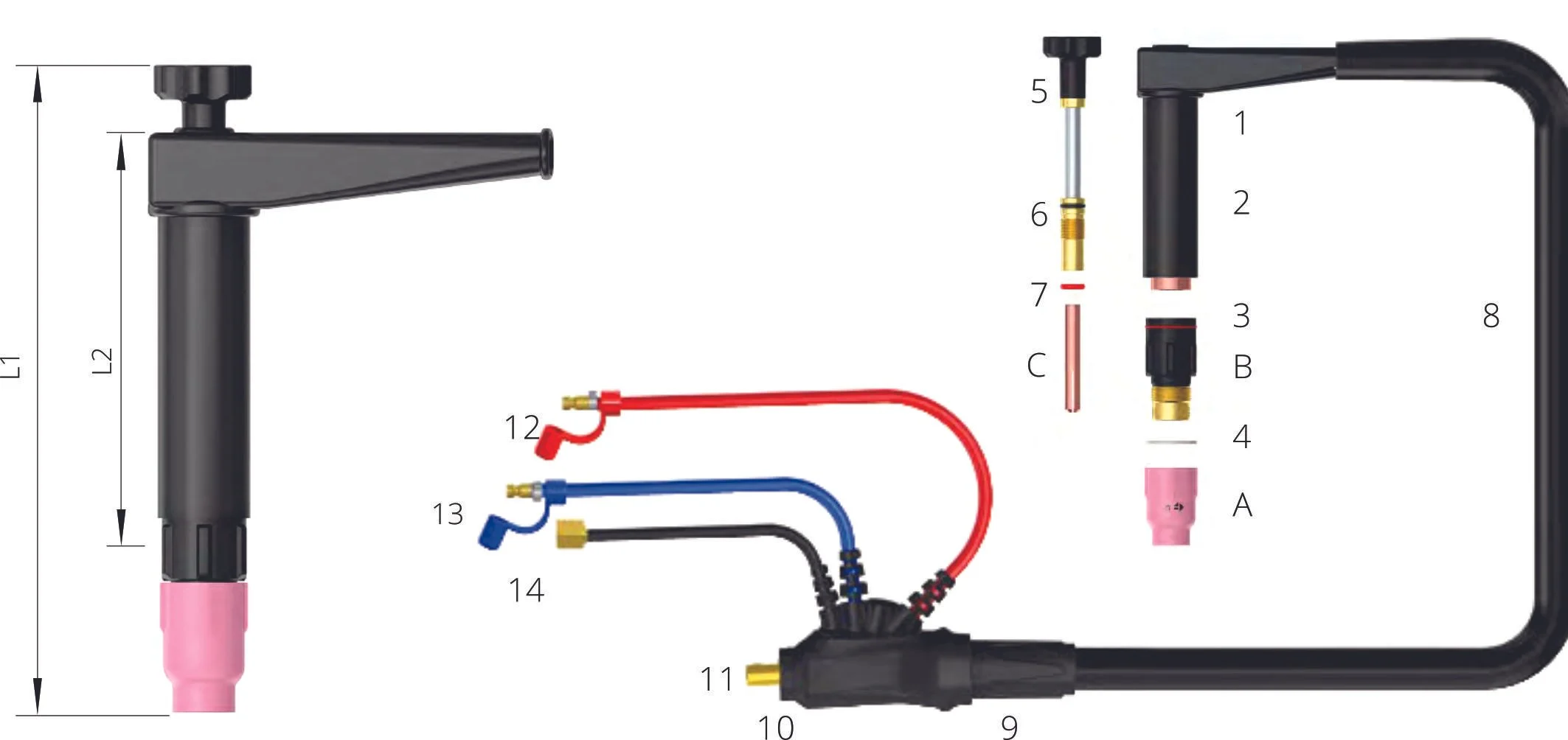

WP27 Water-Cooled TIG Welding Torch
| Order Code | Description |
|---|---|
| 940-089 | TIG Torch x 12.5ft (3.8m) with Rubber Cable |
| 889-951 | TIG Torch x 25ft (7.6m) with Rubber Cable |
| Order Code | Length Total (L1) | Length Body (L2) |
|---|---|---|
| 339-788 | 234mm | 142mm |
| 542-422 | 510mm | 418mm |
| 973-110 | 357mm | 270mm |
| Order Code | REF. | Description |
|---|---|---|
| 438-569 | 57N75 | Gas Lens Cup 3/8" / 10mm Bore |
| 764-963 | 57N74 | Gas Lens Cup 1/2" / 13mm Bore |
| 475-901 | 53N88 | Gas Lens Cup 5/8" / 16mm Bore |
| 318-529 | 53N87 | Gas Lens Cup 3/4" / 19mm Bore |
| Order Code | REF. | Description |
|---|---|---|
| 784-019 | 49V22 | Gas Lens Body 0.040" / 1.0mm Bore |
| 686-127 | 49V23 | Gas Lens Body 1/16" / 1.6mm Bore |
| 444-055 | 49V24 | Gas Lens Body 3/32" / 2.4mm Bore |
| 471-266 | 49V25 | Gas Lens Body 1/8" / 3.2mm Bore |
| 405-398 | 49V26 | Gas Lens Body 5/32" / 4.0mm Bore |
| 499-454 | 49V27 | Gas Lens Body 3/16" / 4.8mm Bore |
| 696-676 | 49V28 | Gas Lens Body 1/4" / 6.4mm Bore |
| Order Code | REF. | Description |
|---|---|---|
| 860-594 | 57N45 | Collet 0.040" / 1.0mm Bore |
| 520-837 | 57N46 | Collet 1/16" / 1.6mm Bore |
| 127-871 | 57N47 | Collet 3/32" / 2.4mm Bore |
| 312-231 | 57N48 | Collet 1/8" / 3.2mm Bore |
| 436-511 | 57N49 | Collet 5/32" / 4.0mm Bore |
| 450-335 | 57N50 | Collet 3/16" / 4.8mm Bore |
| 992-624 | 57N51 | Collet 1/4" / 6.4mm Bore |
| Order Code | Description |
|---|---|
| 483-231 | Insulating boot |
| 852-735 | Barrel assembly "A" model (includes 3 screws and washers) |
| 238-991 | Barrel assembly "B" model (includes 3 screws and washers) |
| 539-666 | Barrel assembly "C" model (includes 3 screws and washers) |
| 828-065 | O-ring |
| 385-346 | Gasket |
| 164-816 | Shaft assembly "A" model (includes shaft, knob, and O-ring) |
| 916-221 | Shaft assembly "B" model (includes shaft, knob, and O-ring) |
| 361-316 | Shaft assembly "C" model (includes shaft, knob, and O-ring) |
| 921-850 | O-ring |
| 471-540 | O-ring |
| 611-266 | Neoprene Sheath x 12.5ft (3.8m) |
| 927-548 | Neoprene Sheath x 25ft (7.6m) |
| 772-343 | Cable Support |
| 489-067 | Gun Plug Housing |
| 775-241 | Gun Plug Body |
| 426-430 | 12.5ft (3.8m) Gas Hose |
| 787-482 | 25ft (7.6m) Gas Hose |
| 129-221 | 12.5ft (3.8m) Water In Hose |
| 323-065 | 25ft (7.6m) Water In Hose |
| 303-101 | 12.5ft (3.8m) Power Cable |
| 422-045 | 25ft (7.6m) Power Cable |
