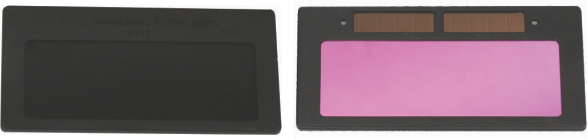

Welding Helmet Lens Group Specifications
Compare our professional welding helmet lens options designed for optimal protection and visibility. Each model offers specific features to match your precise welding requirements.
Superior Protection
All models feature high optical grade classification with DIN 16 UV/IR protection, ensuring maximum eye safety during all welding operations.
Lightning Response
Experience ultra-fast reaction times of less than 0.1ms at 23°C, providing immediate protection the instant an arc is struck.
Reliable Power
Advanced solar cell technology combined with lithium battery backup ensures consistent operation in all lighting conditions.

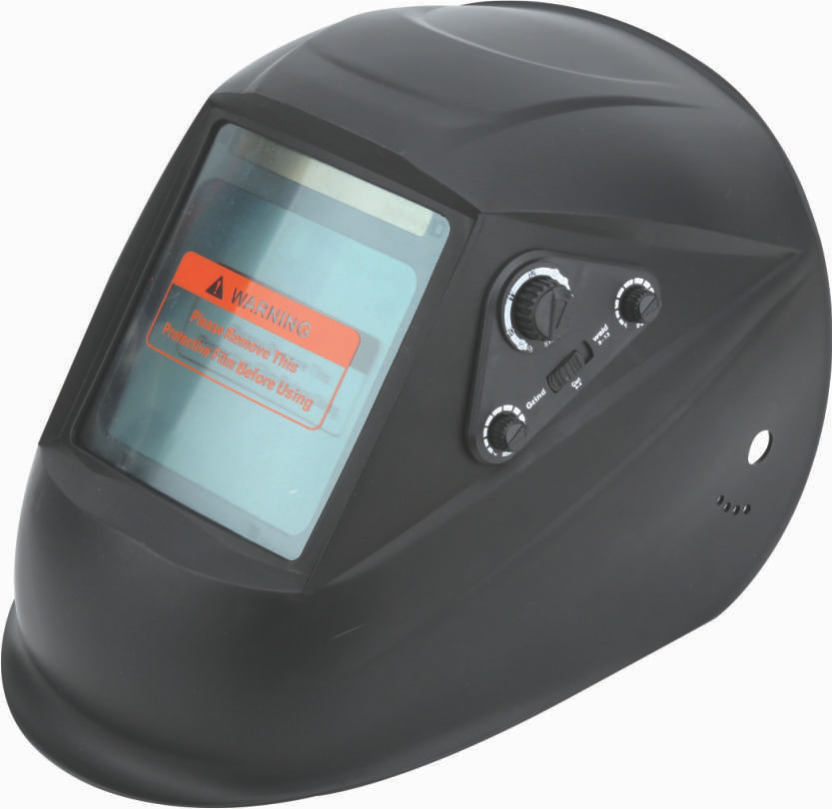

Welding Helmet Safety Features
Low Voltage Alarm
An advanced warning system that alerts users when battery power is running low. This critical safety feature ensures the auto-darkening function will not fail unexpectedly during welding operations.
Self-Check Function
Integrated self-diagnostic capability that performs automatic checks to verify all electronic components are functioning properly before each use, ensuring reliable protection.
Key Benefits
- Prevents unexpected failures during critical welding operations
- Extends helmet lifespan through proper maintenance alerts
- Increases user confidence with reliable performance verification
- Enhances workplace safety by minimizing eye injury risks
These advanced safety features are standard across all welding helmet models in our specifications, contributing to their exceptional safety and reliability.
Model Series
| REF Welding Helmet Lens Group | Model 1 | Model 2 | Model 3 |
|---|---|---|---|
| Order code | 566-857 | 642-176 | 637-210 |
| Optical grade | 1/1/1/1 | 1/1/1/1 | 1/1/1/1 |
| Photosensitive tubes | 2 | 4 | 4 |
| UV/IR protection | DIN 16 | DIN 16 | DIN 16 |
| Mirror box size | 110×90×9mm | 110×90×9mm | 133×114×9mm |
| Viewing area | 92×43mm | 100×60mm | 100×100mm |
| Dark state | DIN9~13 | DIN5~8/9~13 | DIN5~8/9~13 |
| Bright state | DIN4 | DIN4 | DIN4 |

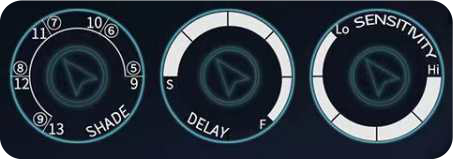

| Sensitivity | Adjustable by knob | Adjustable by knob | Adjustable by knob |
| Return time | Adjustable by knob | Adjustable by knob | Adjustable by knob |
| Function | Welding/Grinding with GRIND external adjustment | Welding/Grinding with GRIND external adjustment | Welding/Grinding with GRIND external adjustment |
| Power supply | Solar cell + 1×2032 lithium battery | Solar cell + 1×2032 lithium battery | Solar cell + 1×2032 lithium battery |
| Reaction time | <0.1ms (23°C) | <0.1ms (23°C) | <0.1ms (23°C) |
| Power on/off | Automatic | Automatic | Automatic |
| Welding Helmet Safety Features | (Low Voltage Alarm) & (Self-Check Function) | (Low Voltage Alarm) & (Self-Check Function) | (Low Voltage Alarm) & (Self-Check Function) |
| Minimum TIG current | 5amps DC/AC | 5amps DC/AC | 5amps DC/AC |
Basic Series
| REF Welding Helmet Lens Group | Basic A | Basic B | Basic C | Basic D |
|---|---|---|---|---|
| Order code | 441-858 | 754-820 | 636-340 | 724-318 |
| Optical Grade | 1/1/1/2 | 1/1/1/2 | 1/1/1/2 | 1/1/1/2 |
| Photosensitive Tubes | 2 | 2 | 2 | 2 |
| UV/IR Protection | DIN 16 | DIN 16 | DIN 16 | 16 |
| Mirror Box Size | 108×50.8×5mm | 110×90×9mm | 110×90×9mm | 110×90×9mm |
| Viewing Area | 90×32mm | 90×32mm | 90×32mm | 92×43mm |
| Dark State | DIN11 (Fixed) | DIN11 (Fixed) | DIN11 (Fixed) | DIN9~13 |
| Bright State | DIN4 | DIN4 | DIN4 | DIN4 |
| Power Supply | Solar cell + 1×927 lithium battery | Solar cell + 1×2032 lithium battery | Solar cell + 1×2032 lithium battery | Solar + 1×2032 lithium battery (Non-replaceable) |
| Sensitivity Control | Automatic (fixed) | Automatic (fixed) | Automatic (fixed) | Adjustable via knob |
| Return Time Control | Non-adjustable | Non-adjustable | Adjustable via knob | Adjustable via knob |
| Function | Basic | Basic | Basic | Welding/Grinding with GRIND adjustment |
| Reaction Time | <0.1ms (23°C) | <0.1ms (23°C) | <0.1ms (23°C) | <0.1ms (23°C) |
| Power On/Off | Automatic | Automatic | Automatic | Automatic |
| Welding Helmet Safety Features | (Low Voltage Alarm) & (Self-Check Function) | (Low Voltage Alarm) & (Self-Check Function) | (Low Voltage Alarm) & (Self-Check Function) | (Low Voltage Alarm) & (Self-Check Function) |
| Minimum TIG Current | 5amps DC/AC | 5amps DC/AC | 5amps DC/AC | 5amps DC/AC |
Premium Series
| REF Welding Helmet Lens Group | Premium A | Premium B | Premium C | Premium D |
|---|---|---|---|---|
| Order code | 981-520 | 390-254 | 891-780 | 897-768 |
| Optical Grade | 1/1/1/2 | 1/1/1/1 | 1/1/1/1 | 1/1/1/1 |
| Photosensitive Tubes | 2 | 2 | 2 | 2 |
| UV/IR Protection | DIN 16 | DIN 16 | DIN 16 | DIN 16 |
| Mirror Box Size | 110×90×9mm | 110×90×9mm | 110×90×9mm | 110×90×9mm |
| Viewing Area | 93×43mm | 93×43mm | 93×43mm | 92×43mm |
| Dark State | DIN9~13 | DIN9~11 | DIN9~13 | DIN9~13 |
| Bright State | DIN4 | DIN4 | DIN4 | DIN4 |
| Power Supply | Solar cell + 1×2032 lithium battery | Solar + 1×2032 lithium battery (Non-replaceable) | Solar cell + 1×2032 lithium battery | Solar + 1×2032 lithium battery (Non-replaceable) |
| Sensitivity Control | Adjustable via knob | Adjustable via knob | Adjustable via knob | Adjustable via knob |
| Return Time Control | Adjustable via knob | Adjustable via knob | Adjustable via knob | Adjustable via knob |
| Function | Welding/Grinding with GRIND adjustment | Welding/Grinding with GRIND adjustment | Welding/Grinding with GRIND adjustment | Welding/Grinding with GRIND adjustment |
| Reaction Time | <0.1ms (23°C) | <0.1ms (23°C) | <0.1ms (23°C) | <0.1ms (23°C) |
| Power On/Off | Automatic | Automatic | Automatic | Automatic |
| Welding Helmet Safety Features | (Low Voltage Alarm) & (Self-Check Function) | (Low Voltage Alarm) & (Self-Check Function) | (Low Voltage Alarm) & (Self-Check Function) | (Low Voltage Alarm) & (Self-Check Function) |
| Minimum TIG Current | 5amps DC/AC | 5amps DC/AC | 5amps DC/AC | 5amps DC/AC |
