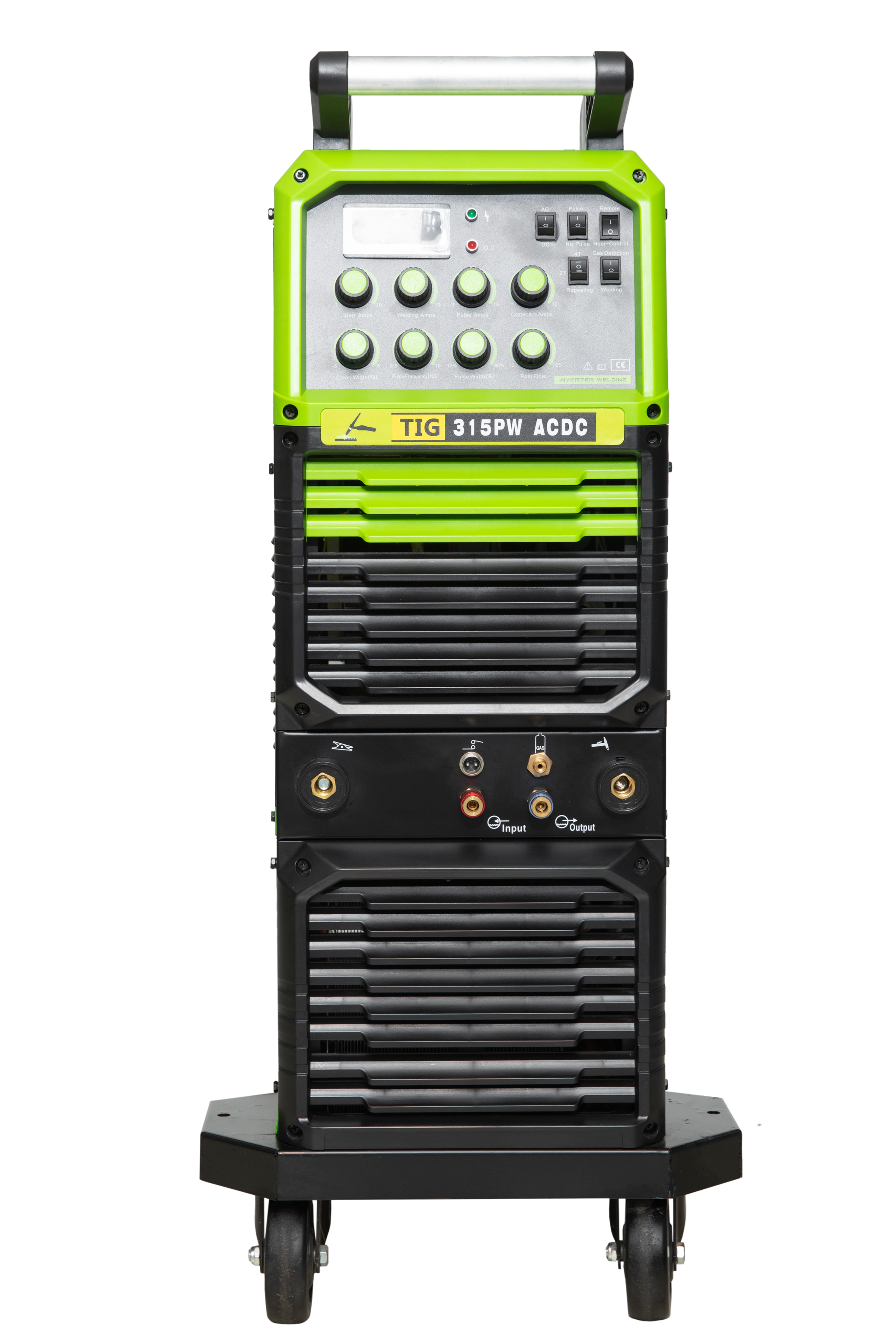

TIG 315PW AC/DC Pulse TIG Welding Machine
The TIG 315PW AC/DC extends the 315A AC/DC TIG platform with an integrated water-cooled configuration for longer high-load welding cycles and better thermal control in production environments. It combines advanced MOSFET inverter technology, broad AC and DC process coverage, and precise pulse capability for aluminum, stainless steel, carbon steel, copper, and mixed-material fabrication.
Built for extended-duty welding with integrated water cooling, MMA plus full AC/DC TIG process coverage, 2T/4T/Repeat operation, high-frequency starting, and stable multi-material arc control.
TIG 315PW AC/DC Technical Specifications
Official technical specifications for the TIG 315PW AC/DC water-cooled model, kept aligned with the published Taumaco listing while the explanatory content is rewritten for a stronger professional presentation.
| Parameter | Specification |
|---|---|
| Model | TIG 315PW AC/DC (Water-Cooled) |
| Rated Input Voltage | AC380V±10% 50Hz 3PH |
| Rated Input Power | 8.9 KVA |
| Rated Input Current | 13.5A |
| Rated Load Duty Cycle | 60% |
| Output Current Range | 30~315A |
| No-load Output Voltage | 45V |
| Power Factor | >0.93 |
| Efficiency | >85% |
| Insulation Class | F |
| Machine Dimensions (Water-Cooled) | 92.5×44.5×94 cm |
| Net Weight (Water-Cooled) | 63kg |
| Certification | CE |
| Compliance | LVD 2014/35/EU, EMC 2014/30/EU |

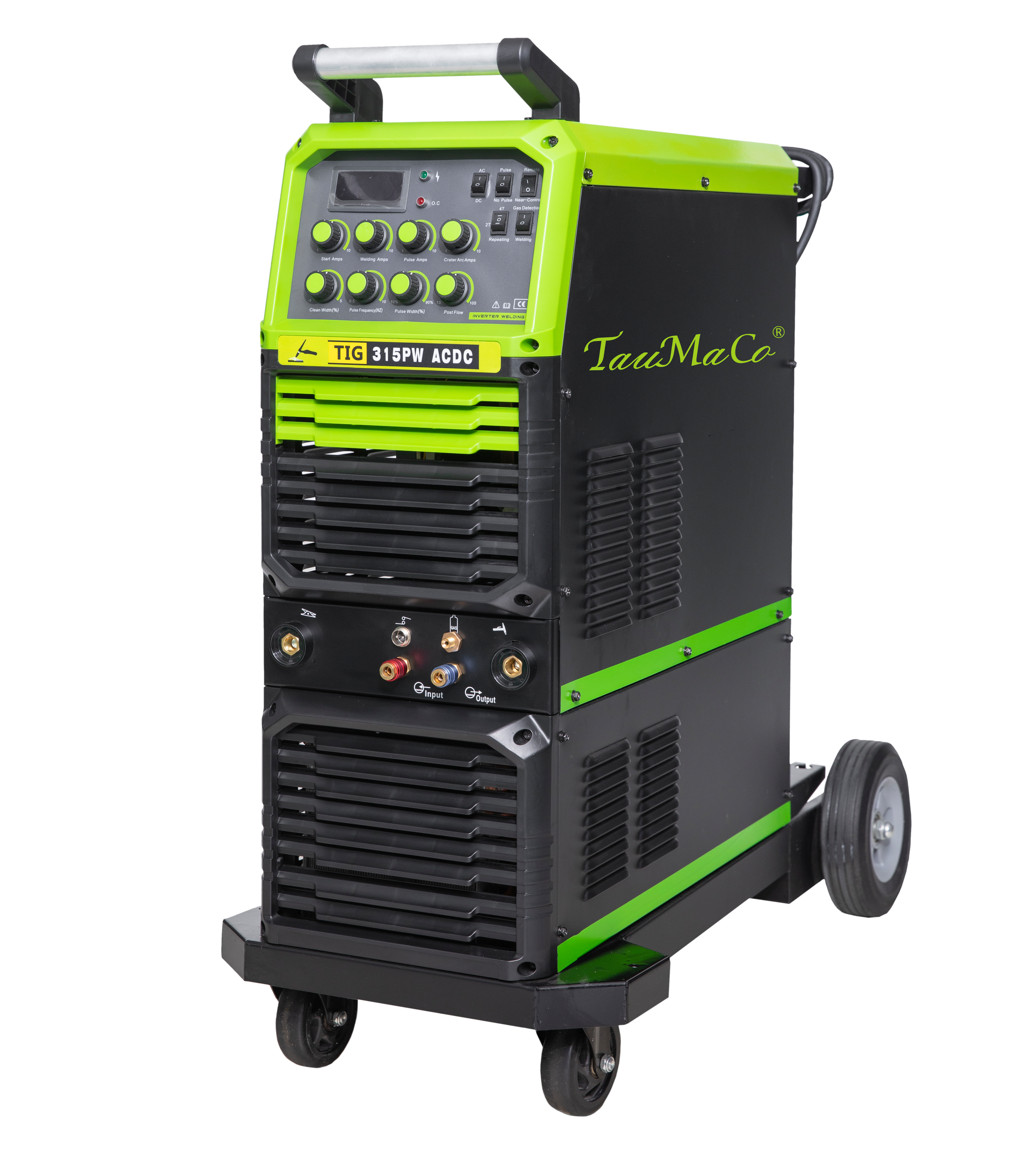

Integrated Water Cooling For Longer Duty Cycles
The built-in water-cooled configuration helps the system manage heat more effectively during longer high-load welding sessions, making it a stronger fit for demanding production work and extended TIG runs.
Five Welding Processes With AC/DC Flexibility
Operators can switch between MMA, DC TIG, Pulse TIG, AC TIG, and AC Pulse TIG from one platform, covering precision work, aluminum welding, routine fabrication, and more advanced pulse-controlled jobs.

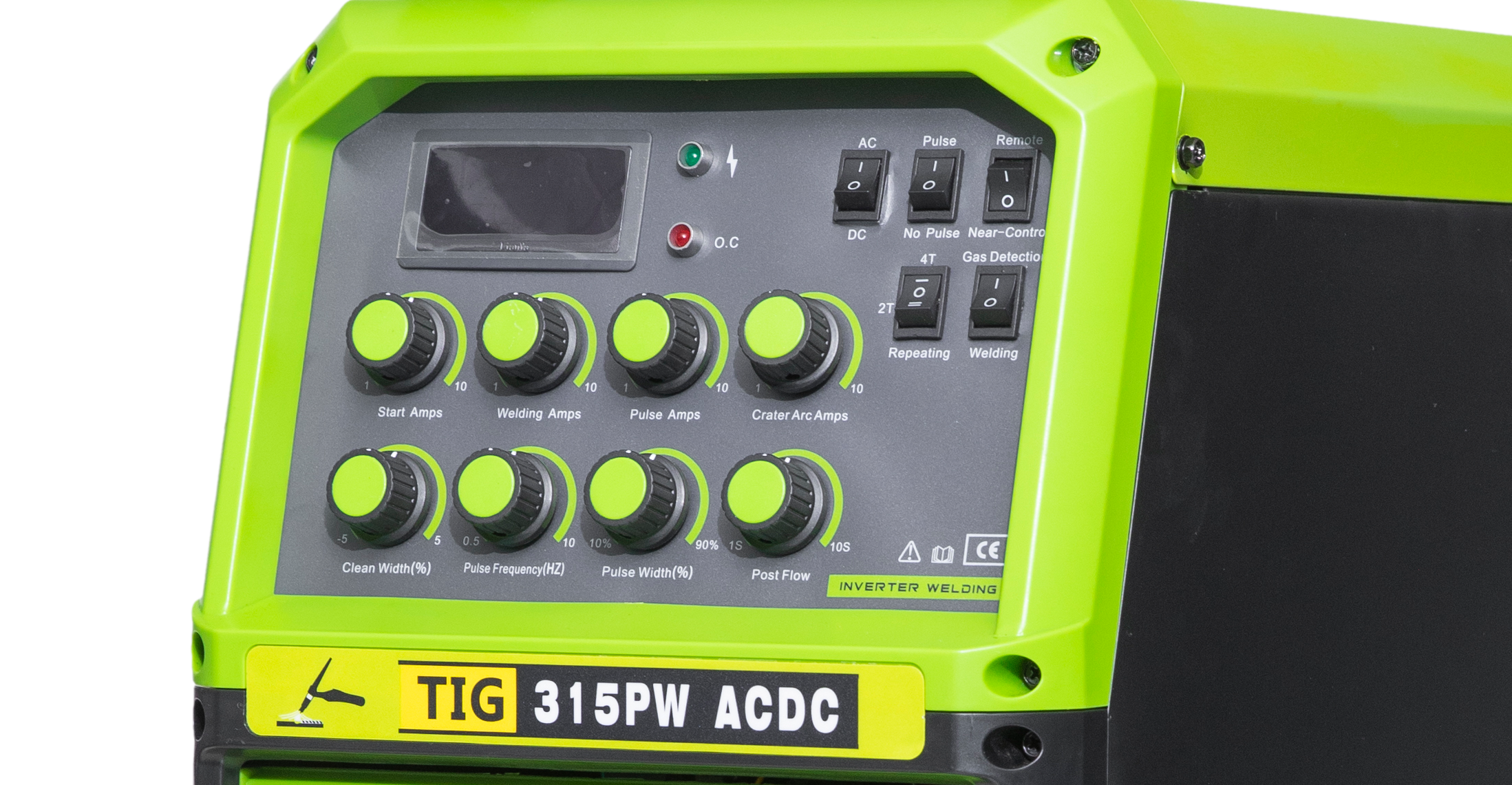

MOSFET Inverter Performance For Clean Control
Advanced MOSFET inverter technology supports stable arc behavior, responsive adjustment, and consistent weld quality across the working range while maintaining the flexibility needed for mixed-material production.
Select compact DC TIG, AC/DC aluminum TIG, or transformer and SCR platforms by output type, cooling, and material demand.
This TIG lineup covers portable DC TIG and MMA inverters, higher-output pulse TIG machines, AC/DC inverter systems for aluminum and non-ferrous work, and transformer or SCR models for conventional workshop and industrial applications.
Portable and production-ready DC TIG machines for steel, stainless steel, repair, and fabrication work
- TIG-200, TIG-250mos, TIG-250D, and TIG-250P cover compact DC TIG and multi-process welding for workshop and field use.
- TIG-315P, TIG-400P, and TIG-500P extend the range for higher-output pulse TIG and industrial fabrication demand.
- Choose this group when DC TIG performance, portability, or wider pulse-control range is the main requirement.
AC/DC TIG systems for aluminum, non-ferrous metals, and higher-duty production welding
- AC-DC-TIG-250P, AC-DC-TIG-315P, AC-DC-TIG-315PW, AC-DC-TIG-500P, and AC-DC-TIG-500PW cover AC/DC TIG across air-cooled and water-cooled formats.
- These models are the preferred choice when aluminum welding, AC output, or longer high-load operating cycles are required.
- Water-cooled versions are better suited to continuous higher-current work where torch temperature and long-run stability matter more.
Conventional transformer-class and SCR-controlled TIG platforms for workshop durability and heavier-duty operation
- AC-DC-TIG-350PT and AC-DC-TIG-500PT serve thicker-section AC/DC TIG applications in transformer-class format.
- TIG-200SCR-1PH-220V, TIG-200SCR-1PH-380V, TIG-250SCR-1PH-380V, and TIG-300SCR-1PH-380V provide transformer SCR DC TIG coverage for conventional workshop use.
- Select this group when traditional machine construction, single-phase transformer supply, or heavier-duty shop use is preferred.
Verify package scope and application suitability before order confirmation.
Published specifications, standard delivery scope, and accessory ratings are for reference only and may change without notice. Included TIG torches, electrode holders, work clamps, gas regulators, flowmeters, water-cooling units, foot pedals, remote controls, plugs, and other accessories may vary by model, package, and destination market. Before supply, confirm the required TIG or MMA process, AC or DC output type, input power, output current, duty cycle, cooling configuration, torch or work-lead length, and applicable local compliance requirements for the intended application.
