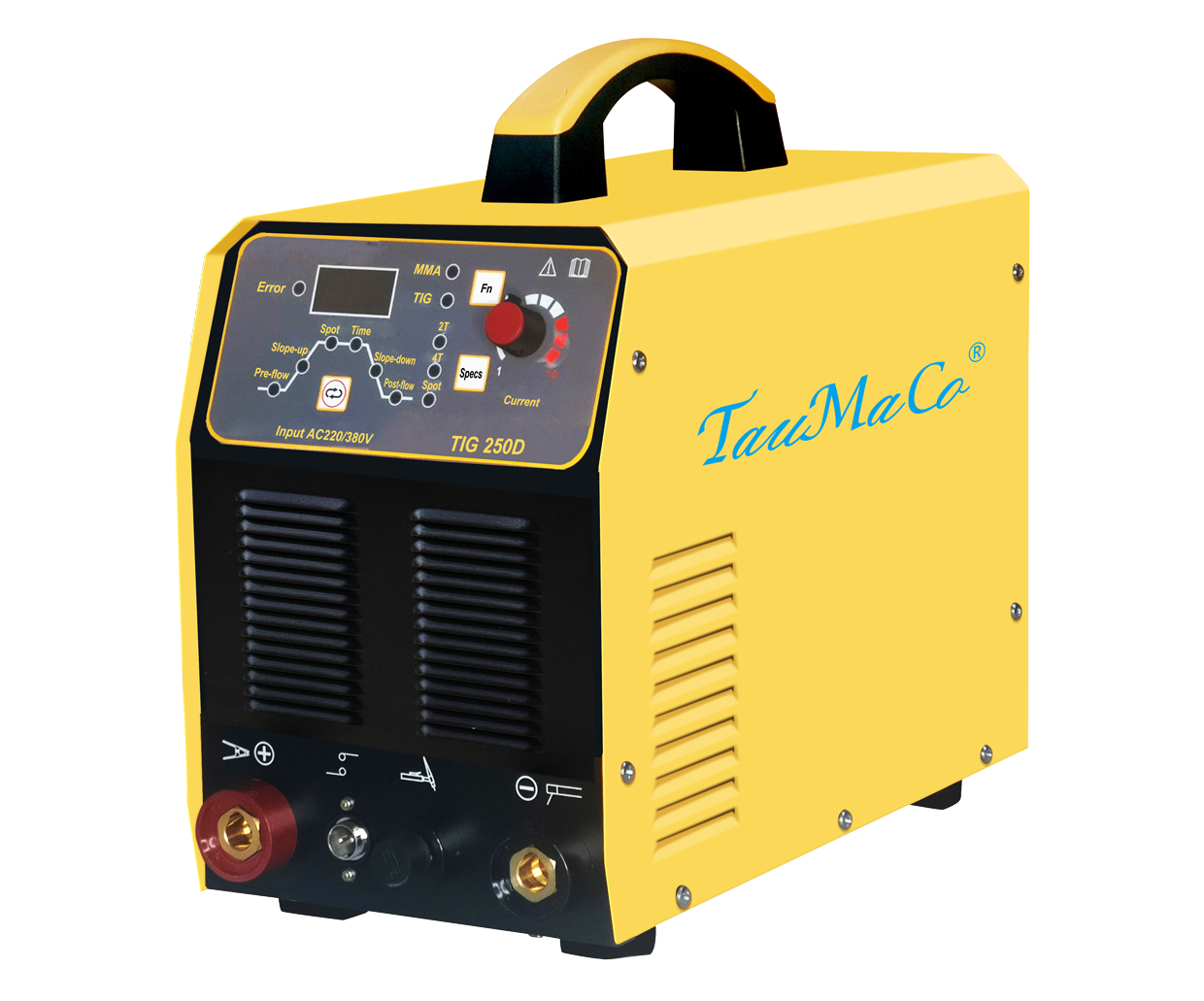

TIG-250D
TIG-250D is an inverter DC TIG / MMA welding machine for stainless steel and ferrous-metal fabrication up to 4 mm. With 1-phase 220V or 3-phase 380V input, a 10-240 A output range, 60% duty cycle, and compact 10.22 kg construction, it delivers flexible installation and reliable performance for workshop and field use.
Built with advanced IGBT inverter technology to provide stable arc output, concentrated arc energy, efficient power conversion, and portable dual-process welding for workshop and outdoor operation.
TIG-250D Technical Specifications
Core electrical data, welding scope, and physical dimensions for the TIG-250D inverter DC TIG / MMA welding machine.
| Parameter | TIG-250D |
|---|---|
| Model | TIG-250D |
| Product Type | DC TIG / MMA inverter welding machine |
| Current Type | DC |
| Stainless Steel Capacity | Up to 4 mm |
| Input Voltage (V) | 1 Phase 220V / 3 Phase 380V ±10% |
| Rated Frequency (Hz) | 50 / 60 |
| Rated Input Power (kVA) | 14.5 |
| Open Circuit Voltage (V) | 71 |
| Duty Cycle (%) | 60% |
| Output Current Range (A) | 10-240 |
| Pulse Current (A) | — |
| Base Current (A) | — |
| Pulse Frequency (Hz) | — |
| Thrust Current (A) | — |
| Dimensions L×W×H (mm) | 410 × 205 × 366 |
| Net Weight (kg) | 10.22 |
| Certification | CE |
| Compliance | LVD 2014/35/EU, EMC 2014/30/EU |
Stable DC arc performance, dual-voltage flexibility, and compact inverter portability for stainless and ferrous fabrication.
TIG-250D combines advanced IGBT inverter technology, DC TIG and MMA dual-process capability, and a compact portable body for stainless steel fabrication, repair work, and general ferrous-metal welding in workshop or field conditions.
Advanced IGBT inverter technology for stable arc output and high efficiency
The IGBT power platform delivers stable welding performance, efficient energy conversion, and dependable output characteristics for daily fabrication and repair work.
DC TIG and MMA functionality combined in one compact machine
Its dual-function design allows users to switch between precision DC TIG welding and manual metal arc welding, improving practical flexibility without moving to a second machine.
Easy arc ignition with concentrated arc energy for cleaner, more precise welding
Easy arc starting and concentrated arc characteristics help improve welding control, support smoother bead appearance, and reduce spatter during stainless and ferrous-metal applications.
Suitable for stainless steel, alloy steel, carbon steel, and other ferrous metals
As a DC TIG machine, TIG-250D is built for iron-based materials rather than aluminum welding, making it a strong fit for stainless steel fabrication and general ferrous workshop jobs.
Compact lightweight structure with simple controls for workshop and outdoor use
The 10.22 kg body, straightforward operating interface, and stable output characteristics support convenient transport, quick parameter adjustment, and reliable portable deployment.
Standardized product positioning
- Model: TIG-250D
- Type: inverter DC TIG / MMA welding machine
- Current type: DC output only
- Input voltage: 1-phase 220V / 3-phase 380V ±10%
- Stainless steel capacity: up to 4 mm
DC versus AC/DC TIG at a glance
- TIG welding is divided into DC and AC/DC types.
- DC can weld iron and stainless steel.
- AC/DC can weld aluminum, iron, stainless steel, copper, and other non-ferrous metals.
- Choose TIG-250D when stainless and ferrous work matters more than aluminum capability.
Built for flexible workshop and field deployment
- Stainless steel fabrication up to 4 mm
- Carbon steel and alloy steel welding tasks
- Maintenance, repair, and portable field service work
- Shops that may use either 220V or 380V supply conditions
Choose DC inverter TIG for stainless and ferrous work, or AC/DC inverter TIG when aluminum capability is required.
This lineup separates inverter TIG machines by current type and material focus. DC models are built for iron and stainless steel welding, while AC/DC models extend coverage to aluminum, copper, and other non-ferrous materials.
Stainless steel and ferrous-metal coverage across compact to higher-output models
- TIG-250mos: 220V inverter DC TIG model for stainless steel below 2 mm.
- TIG-250D: dual-voltage 220V / 380V inverter DC TIG model for stainless steel up to 4 mm.
- TIG-400P and TIG-500P: 380V DC pulse TIG models for stainless steel below 6 mm and 10 mm.
Aluminum-ready AC/DC machines for non-ferrous and mixed-metal fabrication
- AC-DC-TIG-250P (INVERTER): 220V AC/DC model for aluminum plate below 2 mm.
- AC-DC-TIG-315P (INVERTER): 380V AC/DC model for aluminum plate below 6 mm.
- AC-DC-TIG-500P (INVERTER): 380V AC/DC model for aluminum plate below 14 mm.
Verify package scope and application suitability before order confirmation.
Published specifications, standard delivery scope, and accessory ratings are for reference only and may change without notice. Included TIG torches, electrode holders, work clamps, gas regulators, flowmeters, remote controls, plugs, and other accessories may vary by model, package, and destination market. Before supply, confirm the required TIG or MMA process, DC or AC/DC output type, input power, output current, duty cycle, cable length, and applicable local compliance requirements for the intended application.
