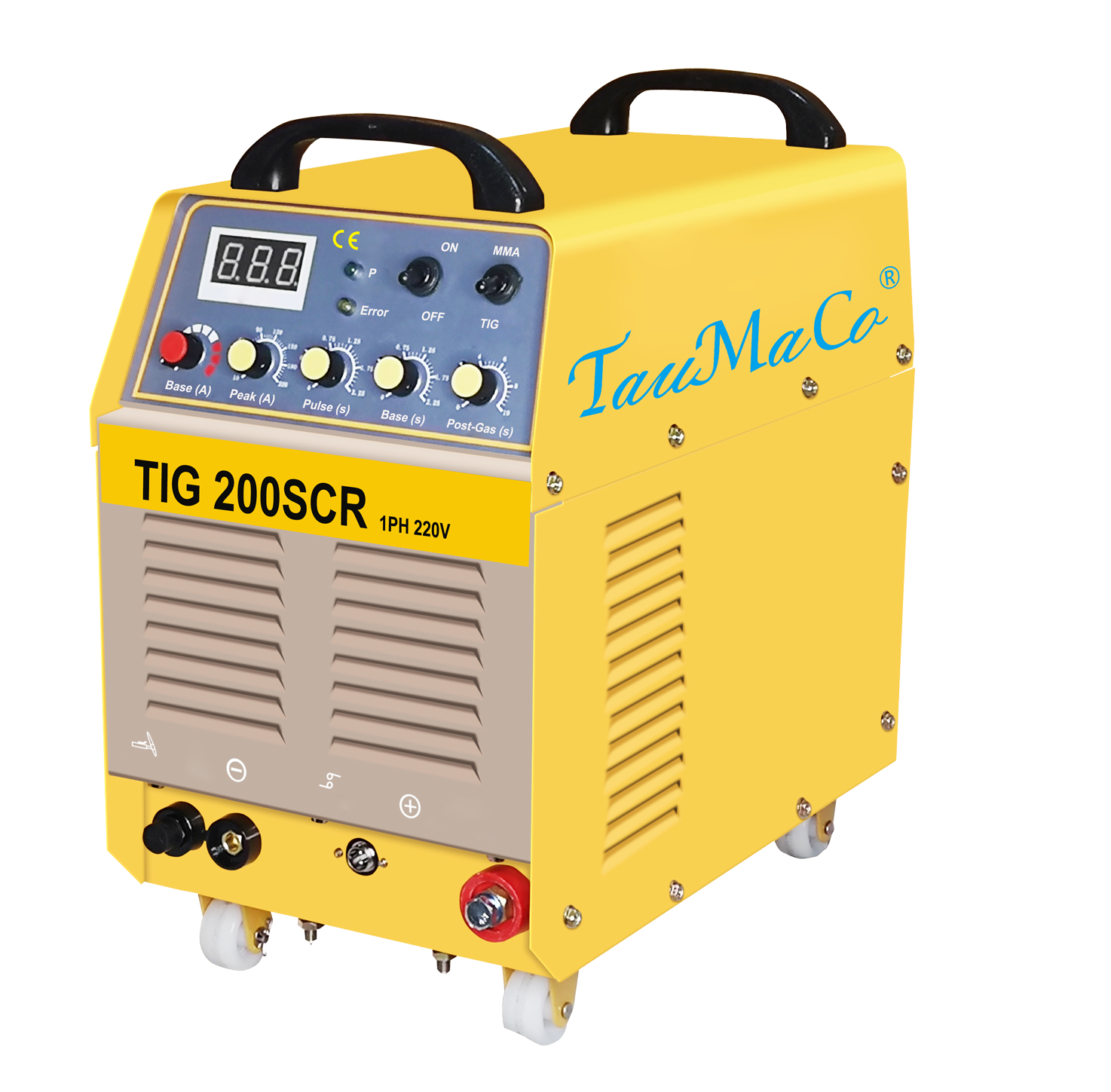

TIG-200SCR-1PH 220V
Transformer-based SCR DC argon welding machine with single-phase 220V input, 10-180 A rated output, pulse function, gas post-flow control, and 0.3-3.0 mm material-thickness coverage for precision stainless steel and general thin-to-medium fabrication work.
Built with transformer-based silicon-controlled rectifier technology, advanced control circuitry, gas post-flow delay, and practical pulse control for dependable DC TIG welding in workshop and fabrication environments.
TIG-200SCR-1PH 220V Technical Specifications
Core electrical data, process coverage, and physical dimensions for the TIG-200SCR-1PH 220V SCR DC argon welding machine.
| Parameter | TIG-200SCR-1PH 220V |
|---|---|
| Model | TIG-200SCR-1PH 220V |
| Technology | Transformer-based silicon-controlled rectifier (SCR) |
| Product Type | SCR DC argon welding machine |
| Welding Process | DC TIG welding with pulse function |
| Supply Voltage | Single Phase 220V ±10% |
| Rated Input Power | 8 kVA |
| Rated Output Current | 10-180 A |
| Rated Duty Cycle | 35% @ maximum output |
| Suitable Material Thickness | 0.3-3.0 mm |
| Functions | Pulse function and gas post-flow control |
| Exterior Dimensions (L×W×H) | 503 × 290 × 510 mm |
| Net Weight | 55 kg |
| Certification | CE |
| Compliance | LVD 2014/35/EU, EMC 2014/30/EU |
Transformer SCR durability, stable argon shielding, and practical thin-to-medium DC TIG control.
TIG-200SCR-1PH 220V combines transformer-based SCR DC output, pulse control, and gas post-flow delay to support precise welding quality on stainless steel and other supplied-material applications in fabrication shops, maintenance work, and professional workshop use.
Advanced control circuit with enhanced gas post-flow delay
The supplied product information highlights advanced control circuitry with improved gas delay behavior, helping the machine better match different operator requirements and welding conditions.
Tungsten electrode with argon shielding for precision DC TIG welding
The process uses a tungsten electrode together with argon shielding gas for manual TIG welding, and the supplied description positions it for stainless steel, copper, titanium, iron plate, and alloy steel plate work.
Argon shielding helps prevent oxidation and improve weld formation
During welding, argon shielding is described as protecting the weld zone from oxidation, supporting higher weld quality, cleaner bead formation, and stronger finished weld properties.
Pulse function supports thinner material work and heat-sensitive applications
The supplied product notes position pulse control as useful for thinner workpieces and for applications where better heat-input control helps improve welding stability and appearance.
Transformer-based SCR construction positioned for long working life
The supplied product highlights position the main unit for 12-20 years of service life under normal operating conditions, emphasizing transformer-based durability and dependable workshop use.
Standardized product positioning
- Model: TIG-200SCR-1PH 220V
- Type: transformer-based SCR DC argon welding machine
- Input voltage: Single Phase 220V ±10%
- Output range: 10-180 A
- Duty cycle: 35%
Core configuration for SCR DC TIG control
- Transformer-based silicon-controlled rectifier output stage
- Advanced control circuit with gas post-flow delay
- Pulse function for heat-input management
- Argon-shielded tungsten electrode TIG process
- Manual process adjustment for workshop TIG applications
Built for precision workshop welding on thin-to-medium sections
- Fabrication shops and maintenance operations
- Manufacturing facilities and professional welding work
- Stainless steel, copper, titanium, iron plate, and alloy steel plate as supplied in the product description
- Applications requiring cleaner weld appearance and practical TIG control on 0.3-3.0 mm workpieces
DC TIG for supplied-material coverage, AC/DC TIG for aluminum work
- The supplied TIG range summary separates DC TIG and AC/DC TIG models.
- Use the AC/DC TIG range when aluminum welding capability is required.
- This SCR DC TIG model is positioned for precision sheet and workshop welding with dependable transformer-style operation.
- Single-phase 220V input supports standard workshop electrical setups.
Select compact DC TIG, AC/DC aluminum TIG, or transformer and SCR platforms by output type, cooling, and material demand.
This TIG lineup covers portable DC TIG and MMA inverters, higher-output pulse TIG machines, AC/DC inverter systems for aluminum and non-ferrous work, and transformer or SCR models for conventional workshop and industrial applications.
Portable and production-ready DC TIG machines for steel, stainless steel, repair, and fabrication work
- TIG-200, TIG-250mos, TIG-250D, and TIG-250P cover compact DC TIG and multi-process welding for workshop and field use.
- TIG-315P, TIG-400P, and TIG-500P extend the range for higher-output pulse TIG and industrial fabrication demand.
- Choose this group when DC TIG performance, portability, or wider pulse-control range is the main requirement.
AC/DC TIG systems for aluminum, non-ferrous metals, and higher-duty production welding
- AC-DC-TIG-250P, AC-DC-TIG-315P, AC-DC-TIG-315PW, AC-DC-TIG-500P, and AC-DC-TIG-500PW cover AC/DC TIG across air-cooled and water-cooled formats.
- These models are the preferred choice when aluminum welding, AC output, or longer high-load operating cycles are required.
- Water-cooled versions are better suited to continuous higher-current work where torch temperature and long-run stability matter more.
Conventional transformer-class and SCR-controlled TIG platforms for workshop durability and heavier-duty operation
- AC-DC-TIG-350PT and AC-DC-TIG-500PT serve thicker-section AC/DC TIG applications in transformer-class format.
- TIG-200SCR-1PH-220V, TIG-200SCR-1PH-380V, TIG-250SCR-1PH-380V, and TIG-300SCR-1PH-380V provide transformer SCR DC TIG coverage for conventional workshop use.
- Select this group when traditional machine construction, single-phase transformer supply, or heavier-duty shop use is preferred.
Verify package scope and application suitability before order confirmation.
Published specifications, standard delivery scope, and accessory ratings are for reference only and may change without notice. Included TIG torches, electrode holders, work clamps, gas regulators, flowmeters, water-cooling units, foot pedals, remote controls, plugs, and other accessories may vary by model, package, and destination market. Before supply, confirm the required TIG or MMA process, AC or DC output type, input power, output current, duty cycle, cooling configuration, torch or work-lead length, and applicable local compliance requirements for the intended application.
