Model: RB 610D
BZL TORCH SERIES
MIG TORCHES
Need to find something?
Give it a search for what you are looking for!
RB 610D Water-Cooled MIG Welding Torch
Specifications:
Rated Current: 650A (CO₂) / 500A (Mixed Gas)
Duty Cycle: 100%
Wire Diameter: 1.6mm – 3.2mm (0.063" – 0.126")
Standard Compliance: EN60974-7
Features & Benefits:
High-Performance Welding: Provides stable arc control and smooth wire feeding for precise welding operations.
Robust Construction: Designed for durability, ensuring reliable performance in demanding industrial environments.
Efficient Cooling System: The water-cooled design ensures optimal heat dissipation, allowing for continuous operation at high amperage.
Ergonomic Design: Features a comfortable grip and flexible cable assembly to reduce operator fatigue during extended use.
Versatile Application: Suitable for various welding tasks, accommodating a wide range of wire diameters.
The RB 610D is a high-quality welding torch recognized worldwide for its robust design and reliable performance. Its ergonomic construction and efficient cooling system make it an excellent choice for professionals seeking durability and precision in their welding applications.
| Specification | Details |
|---|---|
| Model | RB 610D |
| Cooling Type | Water-Cooled |
| Rated Capacity | 650A (CO₂) / 500A (Mixed Gas) |
| Duty Cycle | 100% |
| Wire Diameter | .063"–.126" / 1.6mm–3.2mm |
| Order Code / 订单代码 | Description / 描述 | Model / 型号 |
|---|---|---|
| 674-240 | Welding Torch Packabe c/w Euro Fitting | RB 610D |
| 322-996 | Welding Torch Packabe c/w Euro Fitting | RB 610D |
| 123-353 | Welding Torch Packabe c/w Euro Fitting | RB 610D |
| 826-157 | Auto Welding Torch Packabe c/w Euro Fitting | RB 610D |
| 374-867 | Auto Welding Torch Packabe c/w Euro Fitting | RB 610D |
| 751-119 | Auto Welding Torch Packabe c/w Euro Fitting | RB 610D |

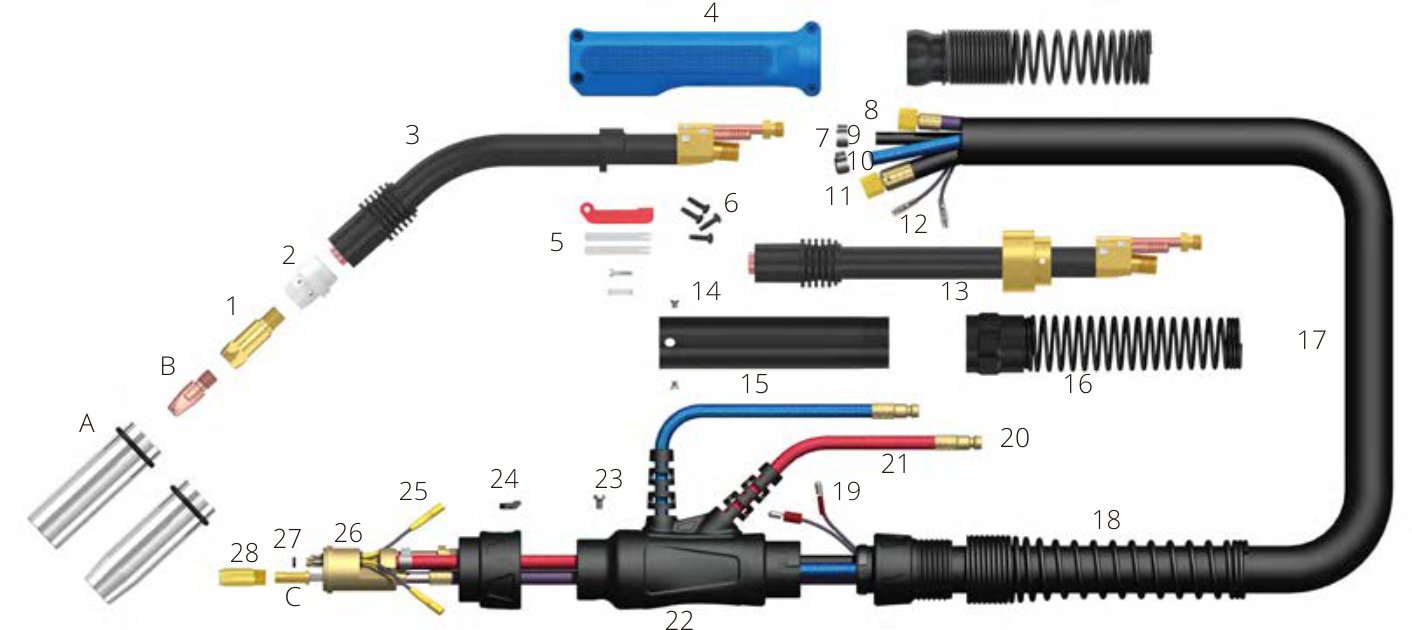

| Order Code / 订单代码 | Description / 描述 | OEM Part No. / OEM 零件号 | Model / 型号 |
|---|---|---|---|
| 145.0048 | Gas Nozzle, Cylindrical, ND Ø23mm | RB 610D | |
| 145.0081* | Gas Nozzle, Conical, ND Ø20mm | RB 610D | |
| 865-622 | Contact Tip, .063” / 1.6mm, M10, CuCrZr | RB 610D | |
| 395-010 | Contact Tip, .080” / 2.0mm, M10, CuCrZr | RB 610D | |
| 335-132 | Contact Tip, .095” / 2.4mm, M10, CuCrZr | RB 610D | |
| 786-437 | Contact Tip, .110” / 2.8mm, M10, CuCrZr | RB 610D | |
| 203-933 | Contact Tip, .126” / 3.2mm, M10, CuCrZr | RB 610D | |
| 903-278 | Plain Liner, 1/16"-5/64" / 1.6mm-2.0mm × 3m | RB 610D | |
| 408-768 | Plain Liner, 1/16"-5/64" / 1.6mm-2.0mm × 4m | RB 610D | |
| 584-871 | Plain Liner, 1/16"-5/64" / 1.6mm-2.0mm × 5m | RB 610D | |
| 600-720 | Plain Liner, 3/32" / 2.4mm × 3m | RB 610D | |
| 158-978 | Plain Liner, 3/32" / 2.4mm × 4m | RB 610D | |
| 362-885 | Plain Liner, 3/32" / 2.4mm × 5m | RB 610D | |
| 489-440 | Plain Liner, .110"-1/8" / 2.8mm-3.2mm × 3m | RB 610D | |
| 534-675 | Plain Liner, .110"-1/8" / 2.8mm-3.2mm × 4m | RB 610D | |
| 583-873 | Plain Liner, .110"-1/8" / 2.8mm-3.2mm × 5m | RB 610D | |
| 516-531 | Contact Tip Adaptor, Ø40.0mm M10 | RB 610D | |
| 450-438 | Diffuser | RB 610D | |
| 496-830 | Swan Neck RB 610D, 35° Bent | RB 610D | |
| 280-466 | Industrial Handle, Blue, Complete | RB 610D | |
| 295-600 | Trigger | RB 610D | |
| 906-687 | Flat Headed Screw, M4 × 12mm | RB 610D | |
| 647-711 | Water Hose Clamp, Ø9.5mm | RB 610D | |
| 982-060 | Outer Liner Assembly, 3m | RB 610D | |
| 746-897 | Outer Liner Assembly, 4m | RB 610D | |
| 209-558 | Outer Liner Assembly, 5m | RB 610D | |
| 674-929 | Gas Hose Assembly, 3m | RB 610D | |
| 179-920 | Gas Hose Assembly, 4m | RB 610D | |
| 581-859 | Gas Hose Assembly, 5m | RB 610D | |
| 544-051 | Water Inlet Hose Assembly, 3m | RB 610D | |
| 697-192 | Water Inlet Hose Assembly, 4m | RB 610D | |
| 287-374 | Water Inlet Hose Assembly, 5m | RB 610D | |
| 861-767 | Power Cable Assembly, 3m | RB 610D | |
| 822-516 | Power Cable Assembly, 4m | RB 610D | |
| 332-231 | Power Cable Assembly, 5m | RB 610D | |
| 195-951 | Switch Lead Assembly, 3m | RB 610D | |
| 419-945 | Switch Lead Assembly, 4m | RB 610D | |
| 921-248 | Switch Lead Assembly, 5m | RB 610D | |
| 393-101 | Swan Neck AUT 610D, Straight | RB 610D | |
| 378-339 | Handle Screw | RB 610D | |
| 369-584 | Automatic Handle | RB 610D | |
| 706-928 | Cable Support Spring | RB 610D | |
| 932-841 | Canvas Cover Assembly, 3m | RB 610D | |
| 119-525 | Canvas Cover Assembly, 4m | RB 610D | |
| 985-517 | Canvas Cover Assembly, 5m | RB 610D | |
| 405-710 | Spring Cable Support (Rear) | RB 610D | |
| 427-547 | Cable Terminal (Male) | RB 610D | |
| 450-312 | Water Hose Nipple | RB 610D | |
| 510-940 | Water Outlet Hose (Braided) | RB 610D | |
| 561-032 | Gun Plug Housing, c/w Lock Nut & Hose Supports | RB 610D | |
| 558-578 | Gun Plug Screw | RB 610D | |
| 291-228 | Gun Plug Nut, c/w Insert | RB 610D | |
| 511-167 | Spring Pin Assembly | RB 610D | |
| 122-122 | Gun Plug Body, c/w Spring Pins | RB 610D | |
| 749-144 | Gun Plug ‘O’ Ring | RB 610D | |
| 843-307 | Liner Nut | RB 610D |
