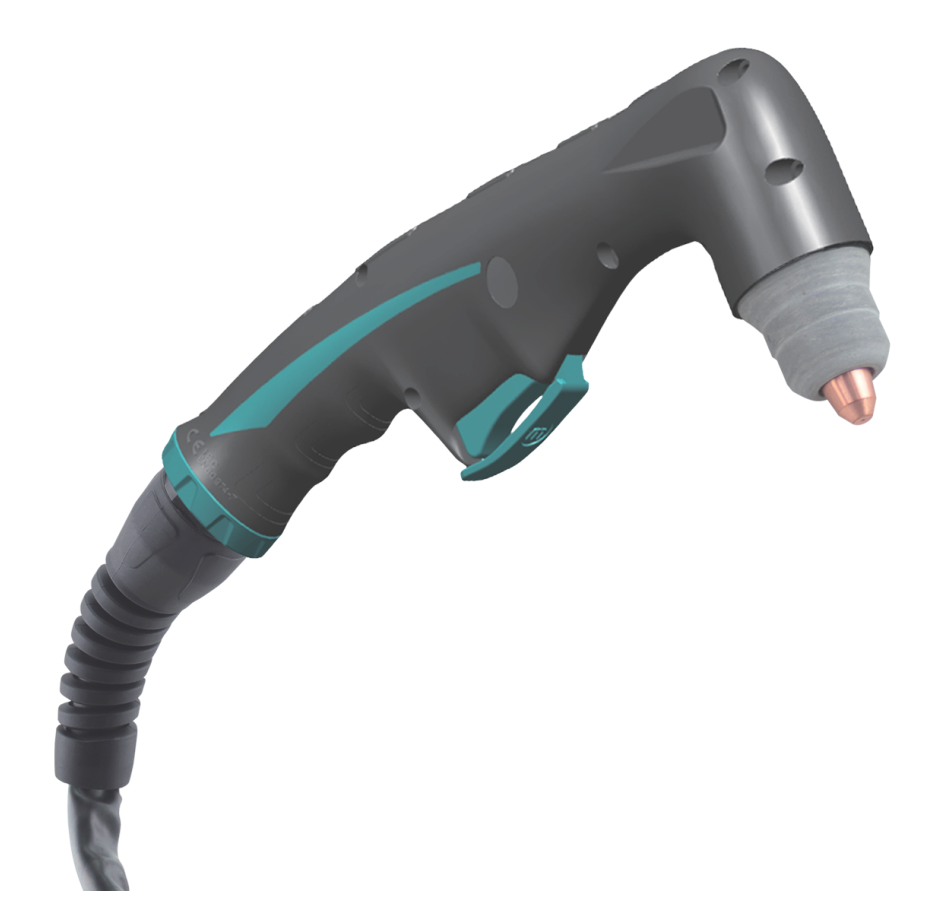

PT 25C Plasma Cutting Torch
A professional-grade plasma cutting solution available in two configurations, delivering precise cutting capabilities with 25 Amp power rating and advanced Air/N₂ gas system.
Power Rating
25 Amp rated current for both configurations
Gas System
Air/N₂ compatibility with optimized flow control
Ignition Type
Non-HF (High Frequency) ignition system
Technical Specifications
| Parameter | PT 25C | PT25 |
|---|---|---|
| Rated Current | 25 Amp | 25 Amp |
| Duty Cycle | 35% | 60% |
| Gas Type | Air/N₂ | Air/N₂ |
| Gas Pressure | 2.8 Bar | 4 Bar |
| Gas Flow Rate | 40 LPM | 95 LPM |
| Post Flow Duration | 20 sec. recommended | 25 sec. recommended |
| Standard Length | 4M | 4M |
Key Features & Benefits
Performance
- 25 Amp rated current capacity
- Dual duty cycle options (35% and 60%)
- Optimized gas flow system
Safety
- Non-HF ignition system
- Controlled post-flow cooling
- Stable arc performance
Versatility
- Air/N₂ gas compatibility
- 4M standard length
- Adjustable flow parameters
Applications
Industrial
- Metal fabrication
- Production cutting
- Manufacturing processes
Professional
- Maintenance operations
- Repair workshops
- Custom metalwork
Specialized
- Precision cutting tasks
- Detail work
- Complex fabrication
Product Advantages
Efficiency
- Optimized gas consumption
- Quick start-up time
- Reduced maintenance needs
Reliability
- Robust construction
- Consistent performance
- Long service life
Flexibility
- Multiple gas options
- Adaptable settings
- Wide application range
Summary
PT 25C Model
- 35% duty cycle operation
- 2.8 Bar gas pressure
- 40 LPM flow rate
PT25 Model
- 60% duty cycle operation
- 4 Bar gas pressure
- 95 LPM flow rate
Common Features
- 25 Amp rated current
- Non-HF ignition system
- 4M standard length

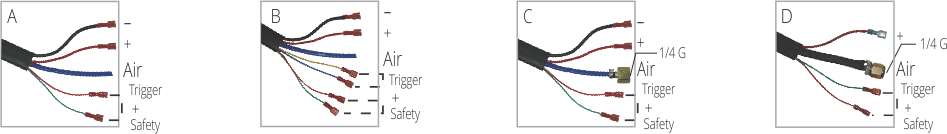

PT25C Series Plasma Torches
| Order Code | OEM Ref. | Description |
|---|---|---|
| 702-485 | — | Professional PT25C Plasma Torch, 4m Length, 2-Wire Configuration |
| 218-538 | — | Professional PT25C Plasma Torch, 4m Length, 2-Wire Configuration with Back-Strike Ignition |
| 102-136 | — | Professional PT25C Plasma Torch, 4m Length, 4-Wire Configuration |
| 374-822 | — | Professional PT25C Plasma Torch, 4m Length, 4-Wire Configuration with Back-Strike Ignition |
PT25 Series Professional Plasma Torches
| Order Code | OEM Ref. | Description |
|---|---|---|
| 630-074 | PA0375 | Professional PT25 Plasma Torch, 4m Length, 2-Wire Configuration |
| 413-141 | — | Professional PT25 Plasma Torch, 4m Length, 2-Wire Configuration with Back-Strike Ignition |
| 711-222 | — | Professional PT25 Plasma Torch, 4m Length, 4-Wire Configuration |
| 593-879 | — | Professional PT25 Plasma Torch, 4m Length, 4-Wire Configuration with Back-Strike Ignition |
| 358-964 | — | Professional PT25 Plasma Torch, 4m Length, 1/4G Configuration |
| 293-292 | — | Professional PT25 Plasma Torch, 4m Length, 1/4G Configuration with Back-Strike Ignition |
| 495-306 | — | Professional PT25 Plasma Torch, 4m Length, 1/4G Configuration with Separated Design |
| 493-017 | — | Professional PT25 Plasma Torch, 4m Length, 1/4G Configuration with Separated Design and Back-Strike Ignition |
Precision Nozzle Components
| Order Code | OEM Ref. | Description |
|---|---|---|
| 634-272 | — | Single-Aperture Precision External Nozzle |
| 397-744 | — | Extended-Life Single-Aperture External Nozzle |
| 597-069 | PC0117 | Dual-Aperture External Nozzle for PT25C Series (60389K) |
| 123-624 | — | Extended-Life Dual-Aperture External Nozzle |
Precision Plasma Tips
| Order Code | OEM Ref. | Description |
|---|---|---|
| 889-120 | — | Precision Plasma Tip, Ø 0.6mm, 10-20A Range with Back-Strike Ignition |
| 500-901 | — | Precision Plasma Tip, Ø 0.8mm, 20-30A Range with Back-Strike Ignition |
| 609-498 | PD0116-06 | Professional PT25-40 Plasma Tip, Ø 0.6mm, 10-20A Operating Range |
| 245-637 | PD0116-08 | Professional PT25-40 Plasma Tip, Ø 0.8mm, 20-30A Operating Range |
| 270-174 | PD0116-09 | Professional PT25-40 Plasma Tip, Ø 0.9mm, 30-40A Operating Range |
Extended-Reach Plasma Tips
| Order Code | OEM Ref. | Description |
|---|---|---|
| 641-455 | — | Extended-Reach Plasma Tip, Ø 0.6mm, 10-20A Range with Back-Strike Ignition |
| 161-686 | — | Extended-Reach Plasma Tip, Ø 0.8mm, 20-30A Range with Back-Strike Ignition |
Professional Components and Electrodes
| Order Code | OEM Ref. | Description |
|---|---|---|
| 992-515 | PE0106 | Professional PT25-60 Series Gas Diffuser |
| 944-212 | — | PT25-60 Electrode with Back-Strike Ignition System |
| 900-323 | PR0110 | Standard PT25-60 Precision Electrode |
| 867-140 | — | Extended PT25-60 Electrode with Back-Strike Ignition System |
| 432-375 | — | Professional PT25C Series Torch Head Assembly |
| 445-298 | — | High-Temperature O-Ring Seal, Ø 15mm × Ø 18mm |
| 856-561 | — | Ergonomic PT20-60 Manual Torch Handle, Red |
| 444-933 | — | Safety Shield Component, Yellow, Plasma-Compatible |
| 507-082 | 185.0031 | Professional-Grade Trigger Mechanism |
| 857-594 | — | Advanced Small Joint Assembly, New Design |
Professional Cable Assemblies
| Order Code | OEM Ref. | Description |
|---|---|---|
| 838-937 | — | Professional PT20C-25 Cable Assembly, 2.5mm², 4M Length, 2-Wire Direct Connection |
| 665-018 | — | Professional PT20C-25 Cable Assembly, 2.5mm², 4M Length, 4-Wire Direct Connection |
| 985-583 | — | Professional PT20C-25 Cable Assembly, 2.5mm², 4M Length, 2-Wire Integrated Connection |
Professional Accessories
| Order Code | OEM Ref. | Description |
|---|---|---|
| 470-192 | — | Professional Plasma Torch Service Wrench |
| 223-170 | — | Precision Circle Cutting Guide Assembly |
