MZ-630
MZ-630 is a submerged arc welding power source for mechanized SAW production where long seams, stable arc characteristics, and continuous-duty industrial output matter more than manual flexibility. It combines 630A rated output, 100% duty cycle, five-level depth adjustment, and the standard MZ-1 wire feeder package for practical automated fabrication.
The entry model in this MZ power-source group is positioned for reliable submerged arc welding on production seams, vessels, structures, and plate fabrication where a compact footprint and full-duty operation are both valuable.
MZ-630 Technical Specifications
Exact model data for the MZ-630 power source together with the standard MZ-1 submerged arc wire feeder package used with this machine series.
Power Source
Standard Wire Feeder: MZ-1
Compact full-duty submerged arc welding for mechanized seam production.
MZ-630 is aimed at shops that want the process advantages of submerged arc welding in a more compact power-source format, while still keeping 100% duty-cycle positioning and the working stability expected from automated SAW applications.
Submerged arc welding for long, repeatable production seams
Submerged arc welding is generally selected for continuous butt and fillet welds where high deposition rate, strong penetration, and repeatable mechanized travel are more important than portability. MZ-630 fits that working style well for fabrication lines, tanks, beams, and plate structures.
630A rated output with 100% load duration
The machine is positioned for continuous-duty industrial use, making it a practical choice when the work requires sustained output instead of short-cycle manual welding patterns.
Five-level depth adjustment helps tune weld formation
The listed depth adjustment series supports more controlled penetration matching across joint types, thickness changes, and production requirements, helping operators tune the weld profile more precisely.

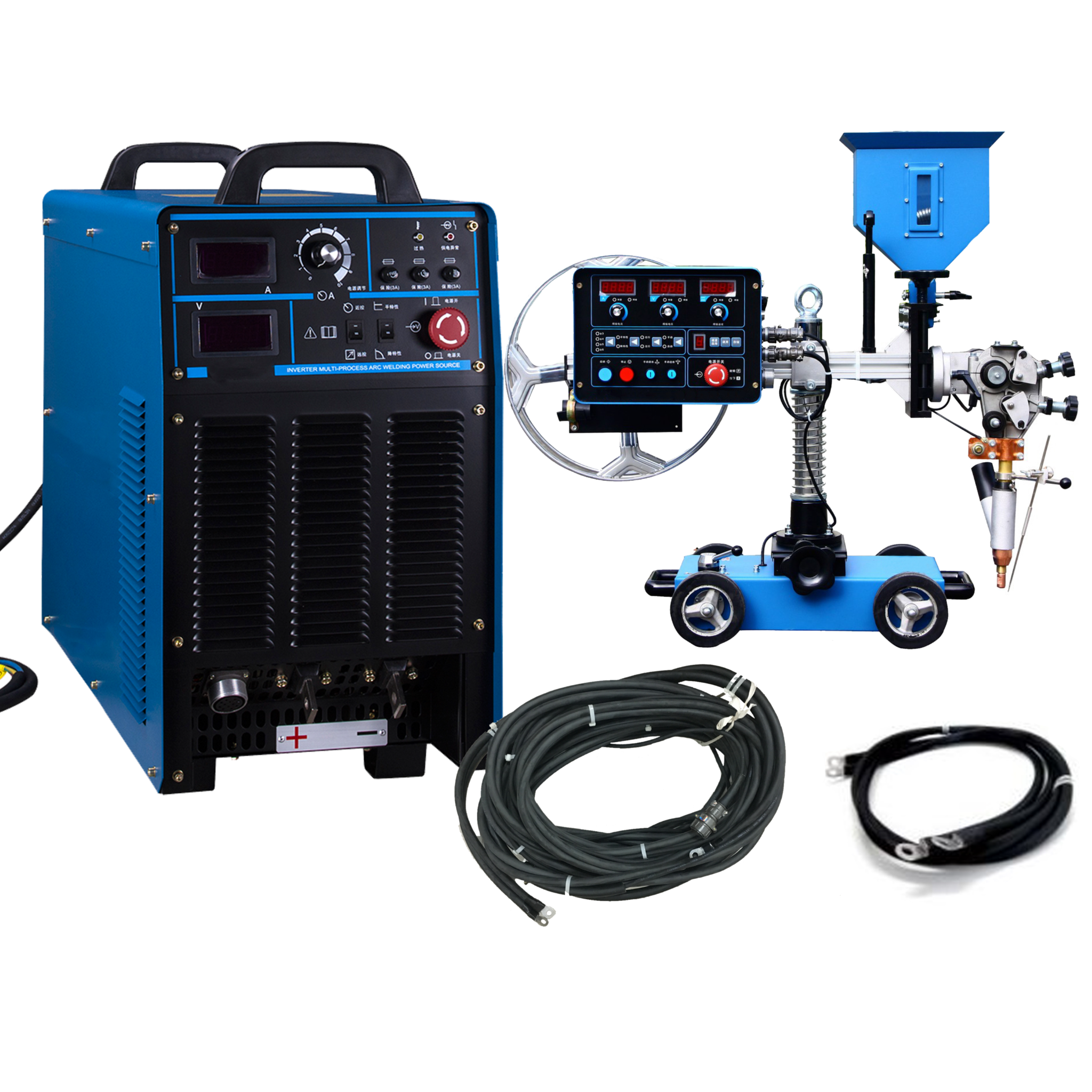

Standard mechanized wire feeder for practical SAW travel setup
The supplied MZ-1 feeder package covers large wire diameters, adjustable welding speed, and multi-axis positioning features that support the mechanized nature of submerged arc welding in production environments.
Compact power-source footprint for easier integration
Compared with the larger MZ-1600 and MZ-2000 units, MZ-630 offers a more compact 676 x 335 x 625 mm power-source size, making it easier to place where floor space is tighter but full-duty SAW is still required.
Where MZ-630 fits best
- Plate and structural fabrication
- Long seam welding on tanks, shells, and beams
- Automated production work needing steady full-duty output
Why buyers choose this process
Because the arc works beneath flux, submerged arc welding is widely valued for reduced visible spatter, stable weld formation, deep penetration potential, and productive long-run operation on repetitive industrial seams.
Main values buyers compare first
Key values include 630A rated output current, 33 KVA rated input capacity, 60~630A current adjustment range, 100% duration of rated load, and air cooling with IP21S case protection.
Choose the right MZ submerged arc power source by output level, plant-scale demand, and mechanized welding workload.
The MZ submerged arc lineup scales from compact full-duty production units up to very high-current industrial power sources for heavier deposition demand. All models in this group are paired with the MZ-1 wire feeder platform.
MZ-630 and MZ-1000
- Good fit for general submerged arc production where full-duty performance and manageable machine size matter.
- MZ-630 is the more compact option, while MZ-1000 adds a higher output tier for thicker or faster-running work.
- Suitable for many beam, vessel, and plate-fabrication lines.
MZ-1250
- Steps the series upward for stronger deposition demand and larger weld sections.
- Better suited where the work begins to exceed the comfortable output window of standard production units.
- Acts as the bridge between mid-range and ultra-high-current MZ models.
MZ-1600 and MZ-2000
- Built for very heavy industrial submerged arc applications with larger current reserve and larger machine format.
- Better matched to high-deposition welding, thicker joints, and bigger production lines.
- Best where maximum output matters more than compact equipment size.
Verify the final welding process setup, package scope, and application suitability before ordering.
Published specifications, standard delivery scope, and accessory ratings are for reference only and may change without notice. Power source, wire feeder, welding carriage, torch, flux hopper, control cables, work leads, and other accessories may vary by model, package, and destination market. Before ordering, confirm the required submerged arc welding application, input power, wire diameter, duty cycle, travel arrangement, workpiece material and thickness, and applicable local compliance requirements for the intended installation.
