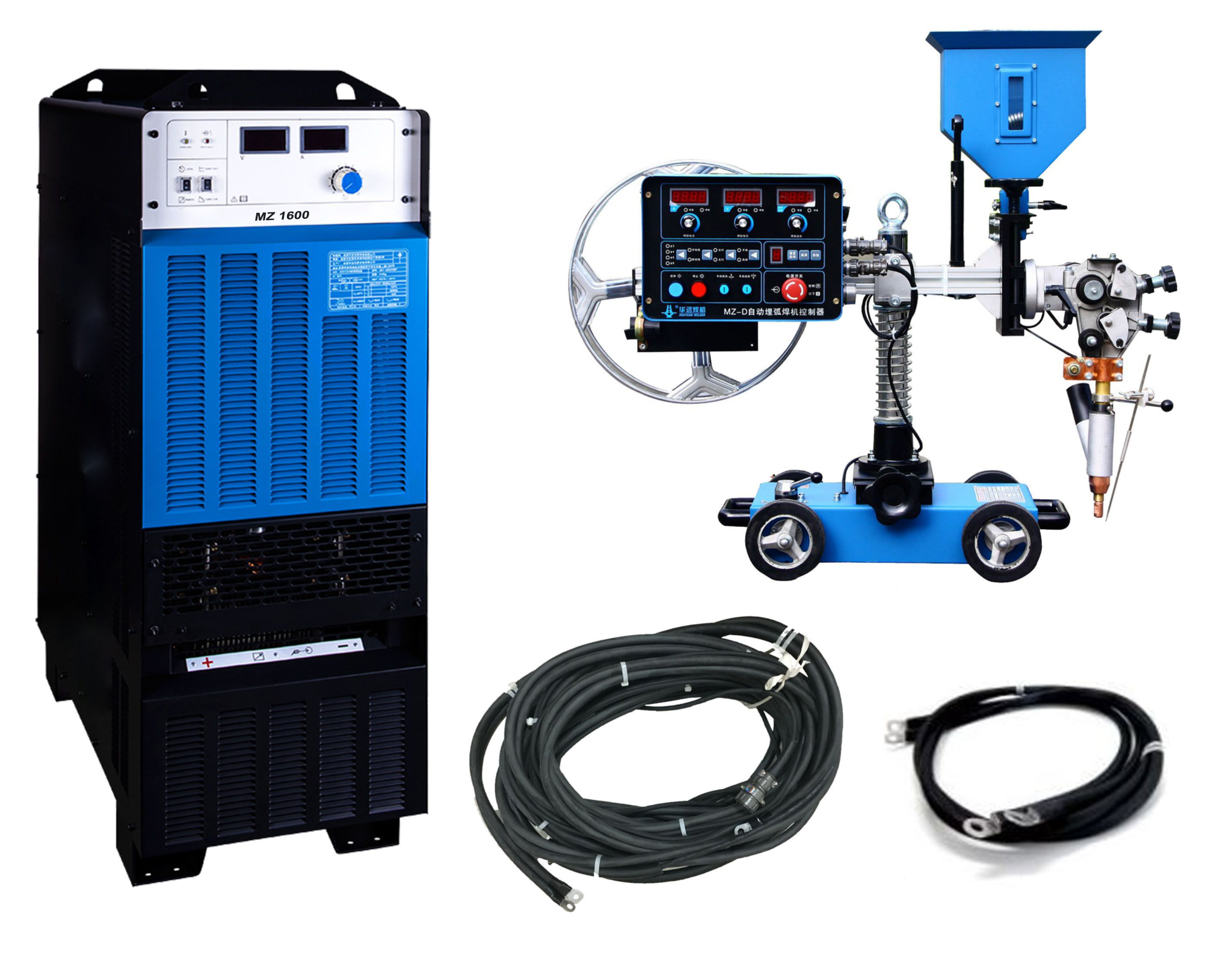

MZ-1600
MZ-1600 is an ultra-high-current submerged arc welding power source built for very heavy mechanized SAW production where larger weld sections, stronger deposition rate, and bigger industrial seams require substantially more current reserve. It combines 1600A rated output, 100% duty cycle, five-level depth adjustment, and the standard MZ-1 wire feeder package for large-scale fabrication work.
This model enters the ultra-high-current end of the MZ submerged arc range, giving large fabrication shops a stronger power reserve for high-deposition seam welding on thicker joints and heavier production sections.
MZ-1600 Technical Specifications
Exact model data for the MZ-1600 power source together with the standard MZ-1 submerged arc wire feeder package used with this machine series.
Power Source
Standard Wire Feeder: MZ-1
Ultra-high-current submerged arc welding for large joints and very heavy fabrication demand.
MZ-1600 is designed for industrial users who need substantially more SAW power than mid-range production units can provide, especially where seam size, deposition requirement, and throughput expectation all increase together.
Built for very heavy mechanized SAW production
Submerged arc welding excels where long repetitive joints are welded under controlled mechanized travel. MZ-1600 is aimed squarely at the heavier end of that process, where larger weld volume and stronger current reserve become central to productivity.
1600A class current for major industrial deposition demand
This model gives fabricators a large jump in available current and is better suited to bigger seams, heavier plate assemblies, and more aggressive production targets than standard SAW power classes.
Larger power-source format for heavier-duty industrial work
The 1050 x 475 x 1250 mm machine size and 186 kg net power weight reflect the heavier-duty class of this equipment, which is intended for plant-based production rather than compact installation needs.
Five-level depth adjustment helps tune heavy-joint welding
As current class increases, penetration control becomes even more important. The listed depth adjustment series helps operators tune weld behavior more effectively for larger joints and changing production requirements.
Standard feeder package for industrial SAW positioning
The MZ-1 feeder supports the wire range, welding speed, and positioning adjustments needed for practical mechanized submerged arc welding across large repetitive production seams.
Where MZ-1600 fits best
- Very heavy plate fabrication and structural assemblies
- Large vessels, beams, columns, and heavy seam production
- Industrial SAW lines where 1000A and 1250A classes are no longer enough
Why buyers choose this process
Submerged arc welding remains a preferred process for high-volume seam welding because it combines stable flux-covered arc behavior, productive long-run operation, and strong penetration potential on thick industrial workpieces.
Main values buyers compare first
Key values include 1600A rated output current, 84 KVA rated input capacity, 100~1600A current adjustment range, 100% duration of rated load, 90% efficiency, and 186 kg net power weight.
Choose the right MZ submerged arc power source by output level, plant-scale demand, and mechanized welding workload.
The MZ submerged arc lineup scales from compact full-duty production units up to very high-current industrial power sources for heavier deposition demand. All models in this group are paired with the MZ-1 wire feeder platform.
MZ-630 and MZ-1000
- Good fit for general submerged arc production where full-duty performance and manageable machine size matter.
- MZ-630 is the more compact option, while MZ-1000 adds a higher output tier for thicker or faster-running work.
- Suitable for many beam, vessel, and plate-fabrication lines.
MZ-1250
- Steps the series upward for stronger deposition demand and larger weld sections.
- Better suited where the work begins to exceed the comfortable output window of standard production units.
- Acts as the bridge between mid-range and ultra-high-current MZ models.
MZ-1600 and MZ-2000
- Built for very heavy industrial submerged arc applications with larger current reserve and larger machine format.
- Better matched to high-deposition welding, thicker joints, and bigger production lines.
- Best where maximum output matters more than compact equipment size.
Verify the final welding process setup, package scope, and application suitability before ordering.
Published specifications, standard delivery scope, and accessory ratings are for reference only and may change without notice. Power source, wire feeder, welding carriage, torch, flux hopper, control cables, work leads, and other accessories may vary by model, package, and destination market. Before ordering, confirm the required submerged arc welding application, input power, wire diameter, duty cycle, travel arrangement, workpiece material and thickness, and applicable local compliance requirements for the intended installation.
