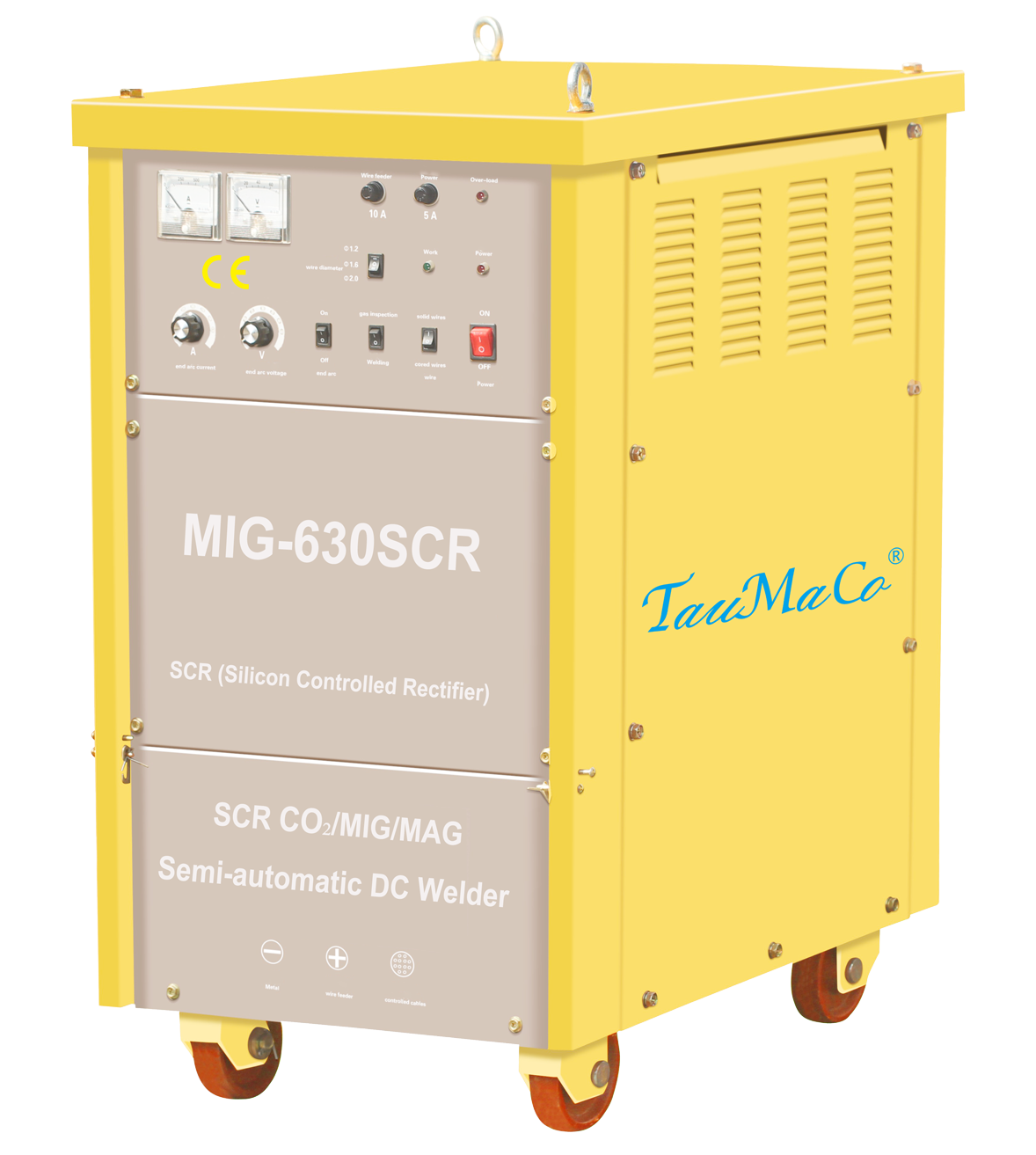

MIG-630SCR
MIG-630SCR is the highest-output transformer-based thyristor SCR semi-automatic wire feed welder in this group, using three-phase 380V input, separate wire feeder configuration, and maximum heavy-duty output for large structures, thick sections, and demanding industrial welding work.
The top-end MIG-SCR platform is positioned as the heaviest-duty transformer option in this set, combining thyristor control, deep penetration, and high output for thick-section production welding.
MIG-630SCR Technical Specifications
Core electrical data, structure classification, and maximum heavy-duty working range for the MIG-630SCR SCR transformer semi-automatic wire feed welding machine.
Maximum SCR transformer output for large structures, thick sections, and the heaviest plate work in this group.
MIG-630SCR is positioned for the highest current demand among these transformer wire-feed models, supporting large carbon steel and alloy steel structures where power reserve and deep penetration are the main priorities.
Top-end SCR transformer construction for maximum heavy-duty output
The MIG-SCR series belongs to the heavier transformer category, using thyristor SCR control to provide high power, deep penetration, and refined current and voltage adjustment for thicker and more demanding sections.
Industrial anti-interference protection for high temperature and dusty conditions
The machine is described as an industrial-grade welder with anti-interference protection technology intended to maintain stable work in harsher operating environments.
Main contactor automatically disconnects after 3 minutes of idle time
After the torch micro-switch is released and the machine remains unused for three minutes, the main contactor automatically disconnects to reduce unnecessary energy consumption.
Automatic decay of wire feed and arc voltage helps finish thicker welds
Crater fill functionality gradually decays wire feed and arc voltage after thick-wire welding, helping fill the end crater and improve finish quality on heavier and larger welded structures.
Modular and contactless switching design reduces component count
The circuitry uses modular and contactless switching with reduced electronic component count and a compact board layout intended to improve reliability in industrial service.
Standardized product positioning
- Model: MIG-630SCR
- Type: SCR transformer semi-automatic wire feed welding machine
- Configuration: separate body
- Input voltage: 380V ±10% three-phase
- Wire diameter: 1.2-1.6 mm
Separate layout supports large structures and wider working radius
- Integrated body: the torch connects directly to the welding machine for easier operation.
- Separate body: the torch connects to the wire feeder, and the feeder connects to the welding machine through an 8-10 meter cable.
- This MIG-630SCR model uses the separate configuration.
- Separate systems are especially practical for large frames, truck bodies, and similar large structures.
Designed for large steel fabrication and maximum-output industrial welding
- Low carbon steel and alloy steel welding
- Steel structures, machinery, and hardware fabrication
- Shipbuilding and large heavy workshop production tasks
- Gas-shielded and flux-cored wire feed processes depending on setup
Transformer SCR positioning emphasizes durability over light weight
- Heavy transformer machine body
- Minimal electronics compared with inverter platforms
- High reliability and long-service positioning
- Suited to thick plate welding where power and penetration matter most
Select compact pulse, advanced industrial pulse, or transformer and SCR MIG platforms by output, cooling, and working reach.
The MIG family in this catalog spans portable synergic models, higher-output pulse systems, water-cooled production units, silicon-carbide industrial power sources, and conventional transformer or SCR machines for routine fabrication through heavy structural welding.
Portable pulse and multi-process machines for workshop work, repair, and lighter fabrication
- MIG-160 and MIG-230 support compact pulse MIG work for thinner materials and general shop use.
- MIG 250ST adds MIG and MMA capability with wide 1/2/3-phase input flexibility for changing site power conditions.
- These models are a practical fit when mobility, easier setup, and moderate current demand matter most.
Separate-feeder, SiC, air-cooled, and water-cooled machines for production welding and multi-material control
- MIG-280, MIG-280X, MIG-350X, and MIG-500X cover high-speed pulse MIG with separate-feeder industrial layouts.
- MIG-350W and MIG-500W add integrated water cooling for longer high-amperage operation.
- MIG-400SiC and MIG-500SiC focus on higher real-output industrial performance with compact silicon-carbide power design.
Conventional wire-feed systems for routine fabrication, thicker plate work, and durable production environments
- MIG-250T and MIG-350T serve general semi-automatic welding with transformer-based construction.
- MIG-350SCR, MIG-500SCR, and MIG-630SCR extend the range for heavier plate welding and higher-current duty.
- Choose these models when simple structure, long-service durability, and conventional heavy fabrication positioning are priorities.
Verify package scope and application suitability before order confirmation.
Published specifications, standard delivery scope, and accessory ratings are for reference only and may change without notice. Included torch assemblies, wire feeders, interconnection cables, work return cables, regulators, water-cooling units, plugs, and other accessories may vary by model, package, and destination market. Before supply, confirm the required welding process, input power, output current, duty cycle, cable or torch length, and applicable local compliance requirements for the intended application.
