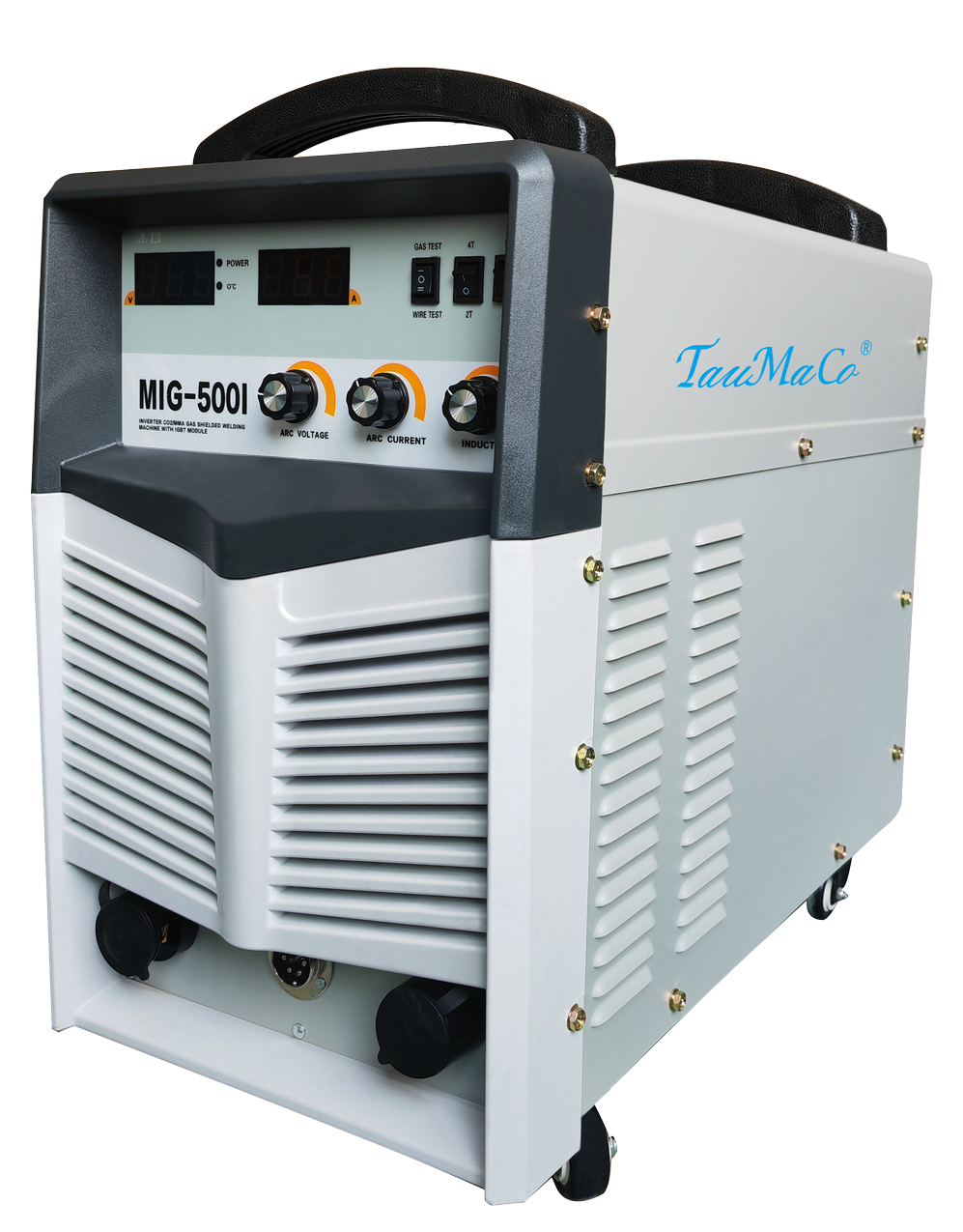

MIG-500IGenerator-Compatible Industrial MIG/MAG Welding Machine
MIG-500I is a generator-compatible 500A actual-current MIG/MAG welding machine using an Aotai soft-switching platform, T120 amorphous transformer, and 0.8-1.6mm wire support.
MIG-500I is specified for 3-Phase 415V input and 500A actual current, supporting 0.8-1.6mm welding wire.
MIG-500I at a glance
MIG-500I generator-compatible industrial MIG/MAG welder with 3-phase 415V input, 500A actual current, 100% duty cycle, and 45kg net weight.
MIG-500I technical specifications
Core electrical data, component configuration, machine dimensions, net weight, and duty-cycle information are listed according to the supplied model specification.
| Parameter | Specification |
|---|---|
| Model | MIG-500I - Generator-Compatible |
| Input Voltage | 3-Phase 415V |
| Actual Current | 500A |
| Machine Dimensions | 615 x 310 x 615 mm |
| Net Weight | 45kg |
| Applicable Welding Wire | 0.8-1.6 mm |
| Control Platform | Aotai soft-switching |
| Rectifier Bridge | 100A |
| IGBT Module | 100A |
| Main Transformer | T120 amorphous |
| Output Reactor | 550A-CD |
| Fast Recovery | 3 x 200A module |
| Capacitor | 2 x 20UF + 4 x 50UF |
| Fan Size | 200 type aluminum |
| Cabinet Plate Thickness | Galvanized 1.2 mm |
| Duty Cycle | 100% |
| Certification | CE |
| Compliance | LVD 2014/35/EU, EMC 2014/30/EU |
Professional inverter platform configured for stable welding output and practical field use.
MIG-500I Generator-Compatible is specified around verified current output, component selection, thermal duty, and real machine dimensions for accurate product positioning.
500A generator-compatible MIG/MAG output
MIG-500I is specified for 3-Phase 415V input and 500A actual current, supporting 0.8-1.6mm welding wire.
Aotai soft-switching platform with T120 amorphous transformer
The listed configuration includes a 100A rectifier bridge, 100A IGBT module, T120 amorphous main transformer, 550A-CD output reactor, and 3 x 200A fast-recovery modules.
100% duty cycle with 2 x 20UF + 4 x 50UF capacitor configuration
The 100% duty cycle is supported by a 200 type aluminum fan, 2 x 20UF + 4 x 50UF capacitors, and galvanized 1.2mm cabinet plate.
Application scope
- MIG/MAG fabrication work
- Medium and heavy metal fabrication
- Repair applications
- Shipyard and structural work
- Generator-compatible field welding where specified
Confirm package and operating requirements before order
- Confirm input supply, plug type, accessory set, cable length, and destination compliance before supply.
- Confirm welding process, output range, duty requirement, package scope, and operating environment before order confirmation.
Choose TAUMACO quality for long-term business, not short-term appearance.
Similar-looking products are common in the market, but the real value is inside: verified specifications, component configuration, duty cycle, compliance, and stable supply support. TAUMACO believes quality comes before price because successful distribution is built over years, not one quick order.
Need a quote or product files for MIG-500I Generator-Compatible Industrial MIG/MAG Welding Machine?
Share the order quantity, destination country, voltage, and working application. TAUMACO can confirm the quotation details and any required documents for this model.
Start with the order brief
- Model name and expected quantity.
- Destination country and buyer company details.
- Preferred contact email, WhatsApp, or purchasing contact.
Confirm the working conditions
- Required voltage, phase, frequency, and workshop utilities.
- Workpiece material, thickness, duty cycle, or production volume.
- Accessories, spare parts, torch, feeder, or consumable needs where relevant.
Prepare review materials
- Certificate, inspection, and destination-market document needs.
- Packaging, label, OEM, ODM, manual language, or distributor requirements.
- Photos, nameplate details, datasheets, catalogs, or manuals needed for review.
Verify final specifications before order confirmation.
Published specifications and delivery scope are for reference only and may change without notice. Confirm process, input power, output current, duty needs, accessories, and local compliance requirements before supply.
