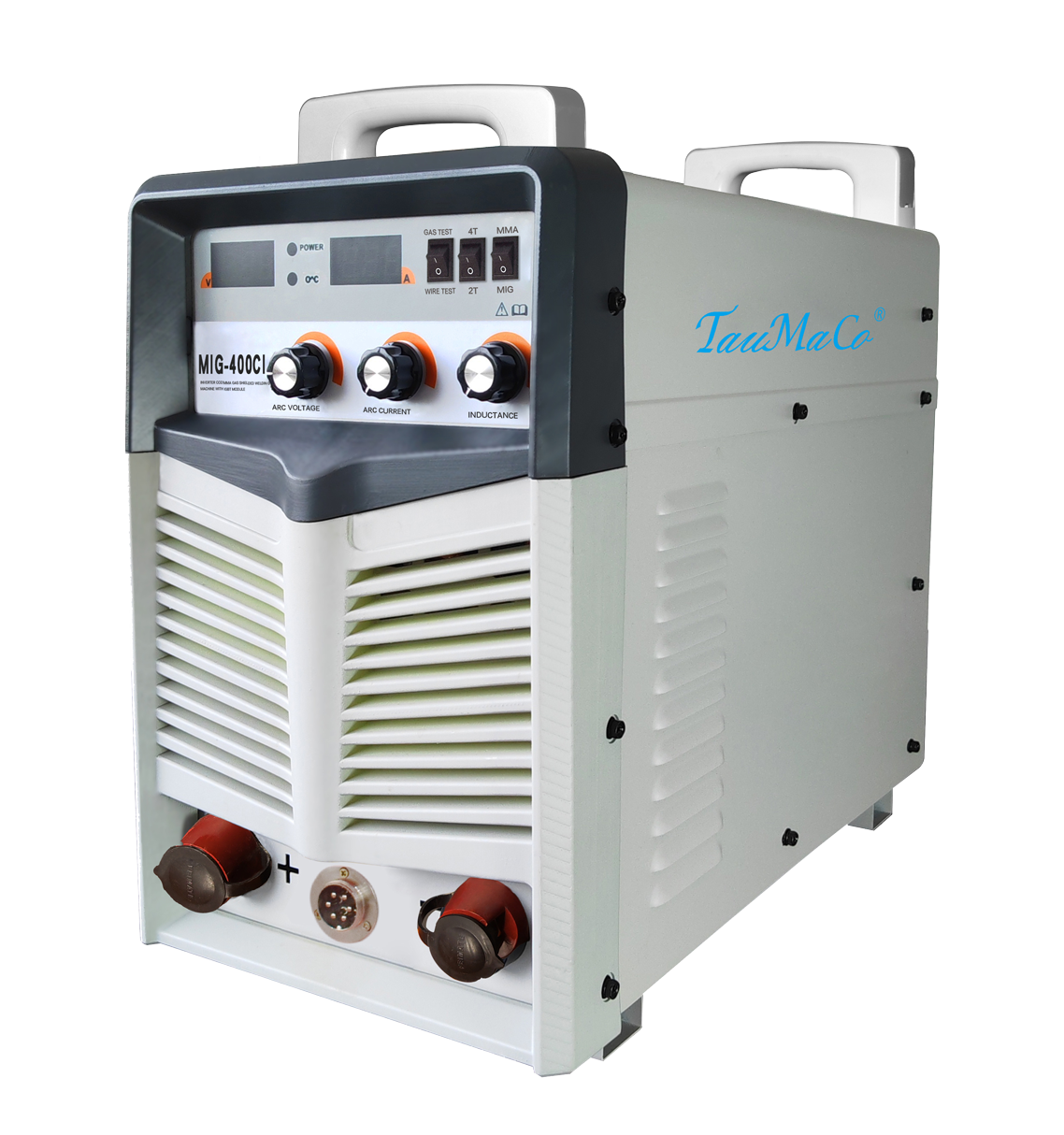

MIG-400CIIndustrial IGBT MIG/MAG Welding Machine
MIG-400CI is a 380A actual-current MIG/MAG welding machine using an Aotai hard-switching platform, T100 amorphous main transformer, and 0.8-1.2mm wire support.
MIG-400CI is specified for 3-Phase 415V input and 380A actual current, supporting 0.8-1.2mm welding wire.
MIG-400CI at a glance
MIG-400CI industrial MIG/MAG welder with 3-phase 415V input, 380A actual current, 60% duty cycle, 22kg net weight, and 0.8-1.2mm wire support.
MIG-400CI technical specifications
Core electrical data, component configuration, machine dimensions, net weight, and duty-cycle information are listed according to the supplied model specification.
| Parameter | Specification |
|---|---|
| Model | MIG-400CI |
| Input Voltage | 3-Phase 415V |
| Actual Current | 380A |
| Machine Dimensions | 515 x 270 x 465 mm |
| Net Weight | 22kg |
| Applicable Welding Wire | 0.8-1.2 mm |
| Control Platform | Aotai hard-switching |
| Rectifier Bridge | 75A |
| IGBT Module | 50A |
| Main Transformer | T100 amorphous |
| Output Reactor | 380A-CD |
| Fast Recovery | 8 x 8040 single tube |
| Capacitor | 100UF |
| Fan Size | 200 type aluminum |
| Cabinet Plate Thickness | Galvanized 1.0 mm |
| Duty Cycle | 60% |
| Certification | CE |
| Compliance | LVD 2014/35/EU, EMC 2014/30/EU |
Professional inverter platform configured for stable welding output and practical field use.
MIG-400CI is specified around verified current output, component selection, thermal duty, and real machine dimensions for accurate product positioning.
380A MIG/MAG output with 0.8-1.2mm wire support
MIG-400CI is specified for 3-Phase 415V input and 380A actual current, supporting 0.8-1.2mm welding wire.
Aotai hard-switching platform with T100 amorphous transformer
The listed configuration includes a 75A rectifier bridge, 50A IGBT module, T100 amorphous main transformer, 380A-CD output reactor, and 8 x 8040 single-tube fast recovery.
60% duty cycle with 200 type aluminum fan and galvanized cabinet
The 60% duty cycle is supported by a 200 type aluminum fan, 100UF capacitor, and galvanized 1.0mm cabinet plate.
Application scope
- MIG/MAG fabrication work
- Medium and heavy metal fabrication
- Repair applications
- Shipyard and structural work
- Generator-compatible field welding where specified
Confirm package and operating requirements before order
- Confirm input supply, plug type, accessory set, cable length, and destination compliance before supply.
- Confirm welding process, output range, duty requirement, package scope, and operating environment before order confirmation.
Choose TAUMACO quality for long-term business, not short-term appearance.
Similar-looking products are common in the market, but the real value is inside: verified specifications, component configuration, duty cycle, compliance, and stable supply support. TAUMACO believes quality comes before price because successful distribution is built over years, not one quick order.
Need a quote or product files for MIG-400CI Industrial IGBT MIG/MAG Welding Machine?
Share the order quantity, destination country, voltage, and working application. TAUMACO can confirm the quotation details and any required documents for this model.
Start with the order brief
- Model name and expected quantity.
- Destination country and buyer company details.
- Preferred contact email, WhatsApp, or purchasing contact.
Confirm the working conditions
- Required voltage, phase, frequency, and workshop utilities.
- Workpiece material, thickness, duty cycle, or production volume.
- Accessories, spare parts, torch, feeder, or consumable needs where relevant.
Prepare review materials
- Certificate, inspection, and destination-market document needs.
- Packaging, label, OEM, ODM, manual language, or distributor requirements.
- Photos, nameplate details, datasheets, catalogs, or manuals needed for review.
Verify final specifications before order confirmation.
Published specifications and delivery scope are for reference only and may change without notice. Confirm process, input power, output current, duty needs, accessories, and local compliance requirements before supply.
