DN-35P

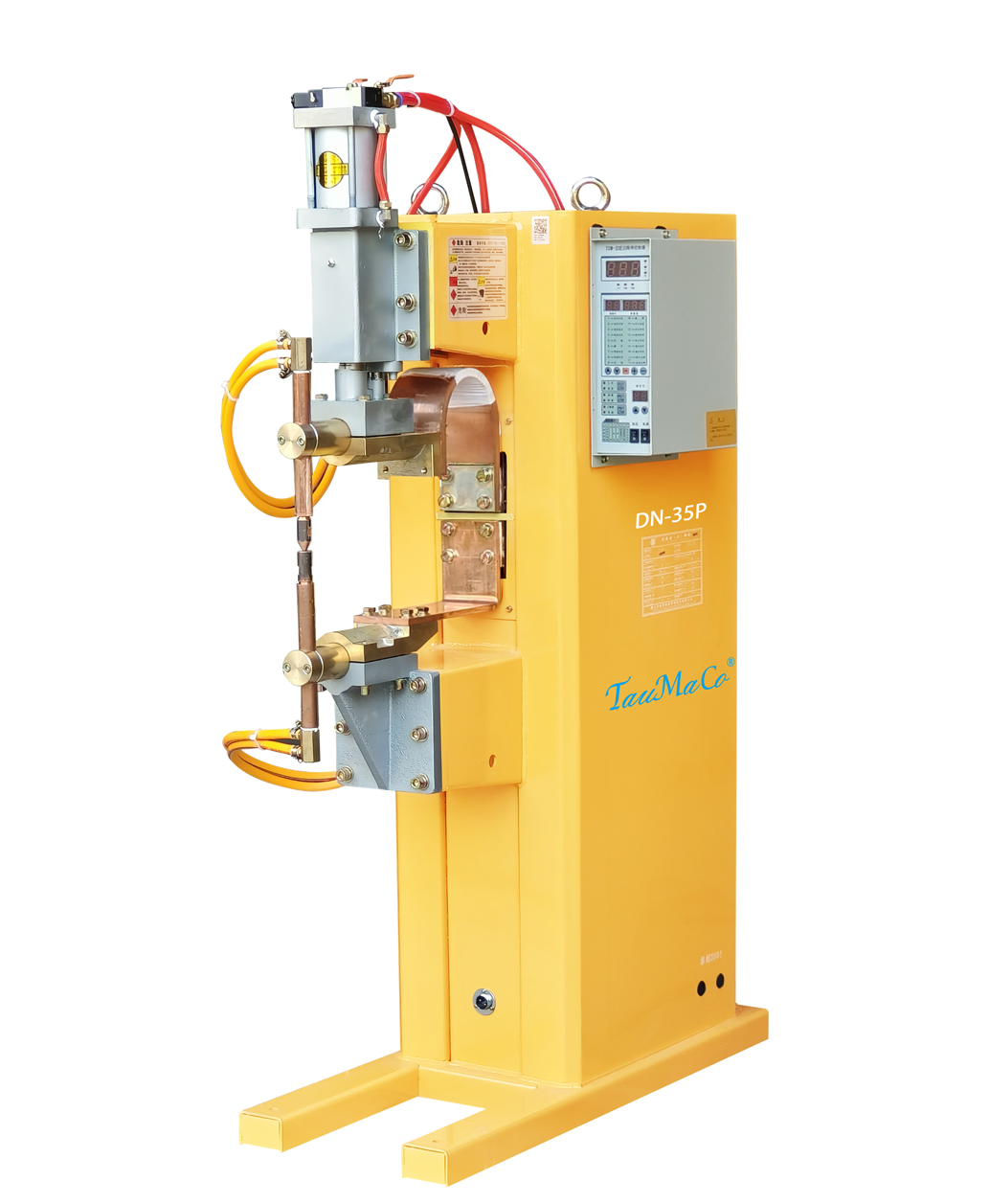

Spot Welding Machine DN-35P (Pneumatic) is a 380V pneumatic resistance spot welder for stable pressure control, repeatable weld quality, and 1.5 + 1.5 mm low carbon steel welding.
DN-35P combines stable pressure control, programmable welding settings, and industrial-oriented spot welding performance for repeatable daily use.
DN-35P Technical Specifications
This page presents the DN-35P model with its supplied pneumatic spot welding specifications and application data.
Stable pneumatic pressure for repeatable production spot welding.
DN-35P focuses on stable pressure control, programmable welding settings, and consistent industrial spot welding performance at 380V.
Constant current and constant voltage selection
The supplied pneumatic feature section states that the controller can select constant current or constant voltage control by comparing sampled welding current and voltage signals with set values.
Nine welding schedules for repeatable setup
The source text states that the controller can store nine welding schedules for user adjustment, which supports repeatable production setup.
Preheat, welding, and tempering current adjustment
The supplied description lists adjustable preheat current, welding current, and tempering current to reduce spatter and address post-weld quenching issues.
Current upslope and downslope for improved nugget quality
The feature text states that slow rise and slow fall current functions help reduce spatter and improve nugget formation.
Fault diagnosis and automatic protection for industrial use
The supplied controller description includes abnormal-condition detection, automatic output shutoff, and a microcontroller-based control platform with strong anti-interference capability.
Where DN-35P fits
DN-35P is positioned as an entry pneumatic model for stable production welding and repeatable spot quality.
Typical work scope
- Stable-pressure pneumatic spot welding
- Consistent production welding quality
- Low carbon steel sheets at 1.5 + 1.5 mm listed thickness
Key mechanical data from the supplied table
The supplied technical table lists 360 mm arm extension, 60 mm electrode stroke, 2500 N maximum pressure, and 3 L/min cooling water capacity.
Select foot-operated or pneumatic resistance spot welders by welding thickness, pressure method, and production demand.
This spot welding lineup covers DN-F foot-operated models for straightforward manual sheet work and DN-P pneumatic models for more stable pressure, repeatable production welding, and higher-capacity structural applications.
DN-F Foot-Operated Range
- DN-16F, DN-25F, and DN-40F cover simple mechanical operation for light-duty to heavier sheet-metal spot welding.
- These models suit users who prefer direct foot control, straightforward setup, and lower-volume workshop production.
- Choose this group when manual operation and simpler structure are more important than pneumatic cycle efficiency.
DN-P Pneumatic Production Range
- DN-25P, DN-35P, DN-50P, and DN-75P cover pneumatic spot welding for thicker sheet, steadier pressure, and more repeatable daily production.
- Pneumatic models are better suited to regular shop-floor use where welding consistency and operating efficiency matter more.
- Select this group when stable pressure control and higher production demand are part of the working process.
Structural And High-Capacity Models
- DN-100P and DN-160P extend the range for industrial structural and thicker-section spot welding applications.
- DN-160P keeps both supplied thickness references visible because the selection guide and parameter table are not identical.
- Confirm actual thickness requirement, arm extension, rated capacity, and utilities before final model selection.
Verify package scope and application suitability before order confirmation.
Published specifications, standard delivery scope, and accessory ratings are for reference only and may change without notice. Included electrodes, electrode arms, electrode holders, foot pedals, pneumatic components, air-service units, pressure-adjustment assemblies, cooling-water connections, control units, cables, plugs, and other accessories may vary by model, package, and destination market. Before supply, confirm the required resistance spot welding application, input power, rated capacity, duty cycle, workpiece material and thickness, arm extension, available air or cooling-water utilities, and applicable local compliance requirements for the intended application.
