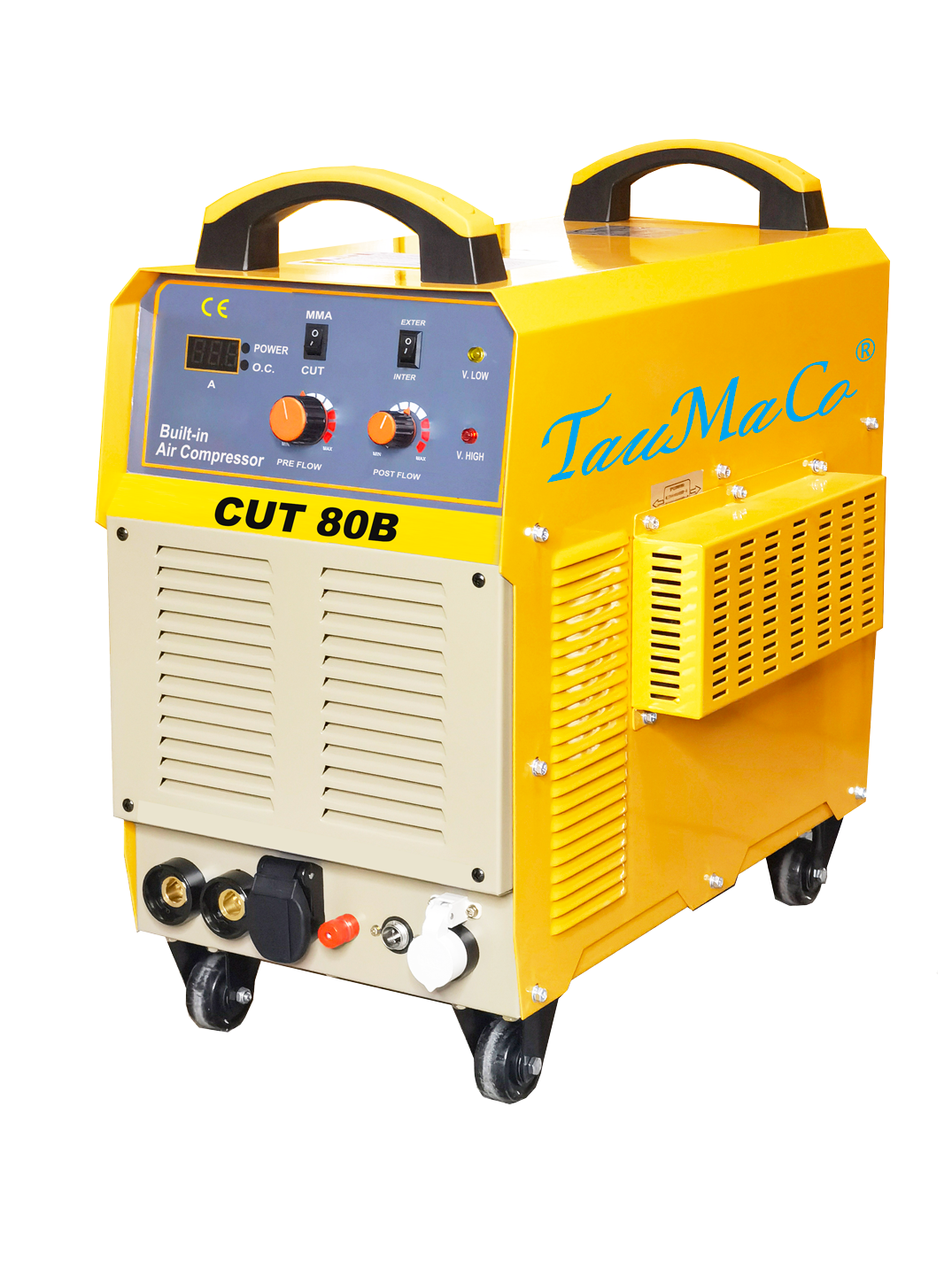

CUT-80B
CUT-80B combines 220V/380V dual power input, built-in and external air source compatibility, plasma cutting plus manual arc welding, and an inverter body designed for carbon steel, stainless steel, and aluminum plate cutting in workshop, installation, and repair work.
An all-in-one inverter plasma cutting and MMA platform with dual-power input, integrated air source support, and optional external compressed air connection for cutting and repair work without depending on a separate compressor.
CUT-80B Technical Specifications
Core electrical data, air source configuration, and cutting capability for the CUT-80B built-in air compressor plasma arc cutting machine.
Dual power, dual air supply, and integrated cut + weld capability for mobile industrial work.
CUT-80B is positioned as a field-ready inverter plasma machine for users who want an integrated built-in air source, optional external air supply, and the flexibility to switch between plasma cutting and manual arc welding on one compact platform.
Dual power input and dual air source flexibility in one machine
The CUT-80B platform supports 220V and 380V input while allowing both built-in air source operation and external compressed air connection, making it easier to adapt between workshop and field environments.
Plasma cutting and manual arc welding combined for field construction and repair
One-machine dual-use configuration combines plasma cutting and MMA welding, making the machine practical for installation work, maintenance, repair, and service tasks where combined cut-and-weld capability matters.
20 kHz IGBT inverter platform for compact and stable output
The power section uses a 20 kHz IGBT inverter platform to support stable arc characteristics, efficient operation, and continuously adjustable output in a more compact machine body.
Air-cooled construction with 60% duty cycle for practical site use
The specification table lists air cooling for both power source and torch, a 60% duty cycle, Class F insulation, and IP21S enclosure protection for routine workshop and field work.
Compressed-air cutting performance centered on the stated carbon steel range
The table specifies compressed air as the plasma gas, 12 mm quality cutting capacity on carbon steel, and maximum cutting thickness up to 20 mm with the built-in air source or 25 mm with an external air source.
Standardized product positioning
- Model: CUT-80B (Built-in Air Compressor)
- Type: inverter plasma arc cutting machine
- Functions: plasma cutting plus manual arc welding
- Air source: built-in plus external air support
- Input: 220V / 380V dual use
Independent operation without relying on a separate compressor
- Built-in air source supports more independent on-site use.
- External air connection remains available when higher flow support is preferred.
- Integrated structure reduces setup dependence in field conditions.
- Useful for repair teams and outdoor maintenance work.
Built for plate cutting and repair across fabrication environments
- Carbon steel, stainless steel, and aluminum plate cutting
- Workshop fabrication, installation, maintenance, and repair work
- Mechanical cutting, slotting, and opening tasks
- Use cases that benefit from optional external air support
Table-backed cutting references
- Quality cutting capacity: 12 mm carbon steel
- Maximum cutting thickness with built-in air: 20 mm
- Maximum cutting thickness with external air: 25 mm
- Applicable plasma gas: compressed air
Choose built-in compressor, professional IGBT, or heavy-duty HD plasma systems by air supply, output, and continuous-duty demand.
This plasma lineup combines integrated CUT-B machines for mobile cutting and repair with LGK inverter and heavy-duty HD systems for higher-output fabrication, structural work, maintenance, and CNC-ready industrial applications.
All-in-one plasma plus MMA machines for portable service work and workshop flexibility
- CUT-80B prioritizes dual-voltage mobility and lighter plate cutting in a more compact all-in-one format.
- CUT-100B and CUT-120B raise three-phase output for thicker sections while retaining built-in and external air support.
- Choose this group when independent air supply, field deployment, and combined cutting plus stick capability matter most.
External-air industrial plasma cutters for fabrication shops, maintenance teams, and medium to heavy plate work
- LGK-63IGBT covers compact 63A cutting with divided-voltage output options and a smaller 26 kg machine body.
- LGK-120IGBT and LGK-200IGBT extend the range for 100% duty cycle production cutting with higher-quality cut capacity.
- Choose this group when dedicated compressed air, industrial inverter efficiency, and manual or CNC-ready cutting are the main priorities.
Maximum-output plasma platforms for thick carbon steel, longer cycles, and demanding production environments
- LGK-300HD and LGK-400HD deliver 100% duty cycle at 40°C with non-contact arc ignition for severe industrial duty.
- These models support thicker manual or CNC cutting with air- or water-cooled torch options and compressed-air supply.
- Choose this group when thicker plate, continuous operation, and high-output structural or shipyard work are the main requirements.
Verify package scope and application suitability before order confirmation.
Published specifications, standard delivery scope, and accessory ratings are for reference only and may change without notice. Included plasma torch assemblies, work return clamps, air regulators, filters, air hoses, interconnection leads, CNC interface cables, built-in compressor components, water-cooling units, plugs, consumables, and other accessories may vary by model, package, and destination market. Before supply, confirm the required plasma cutting application, any auxiliary MMA function where applicable, input power, output current, duty cycle, air source configuration, torch or lead length, target cut thickness, and applicable local compliance requirements for the intended application.
