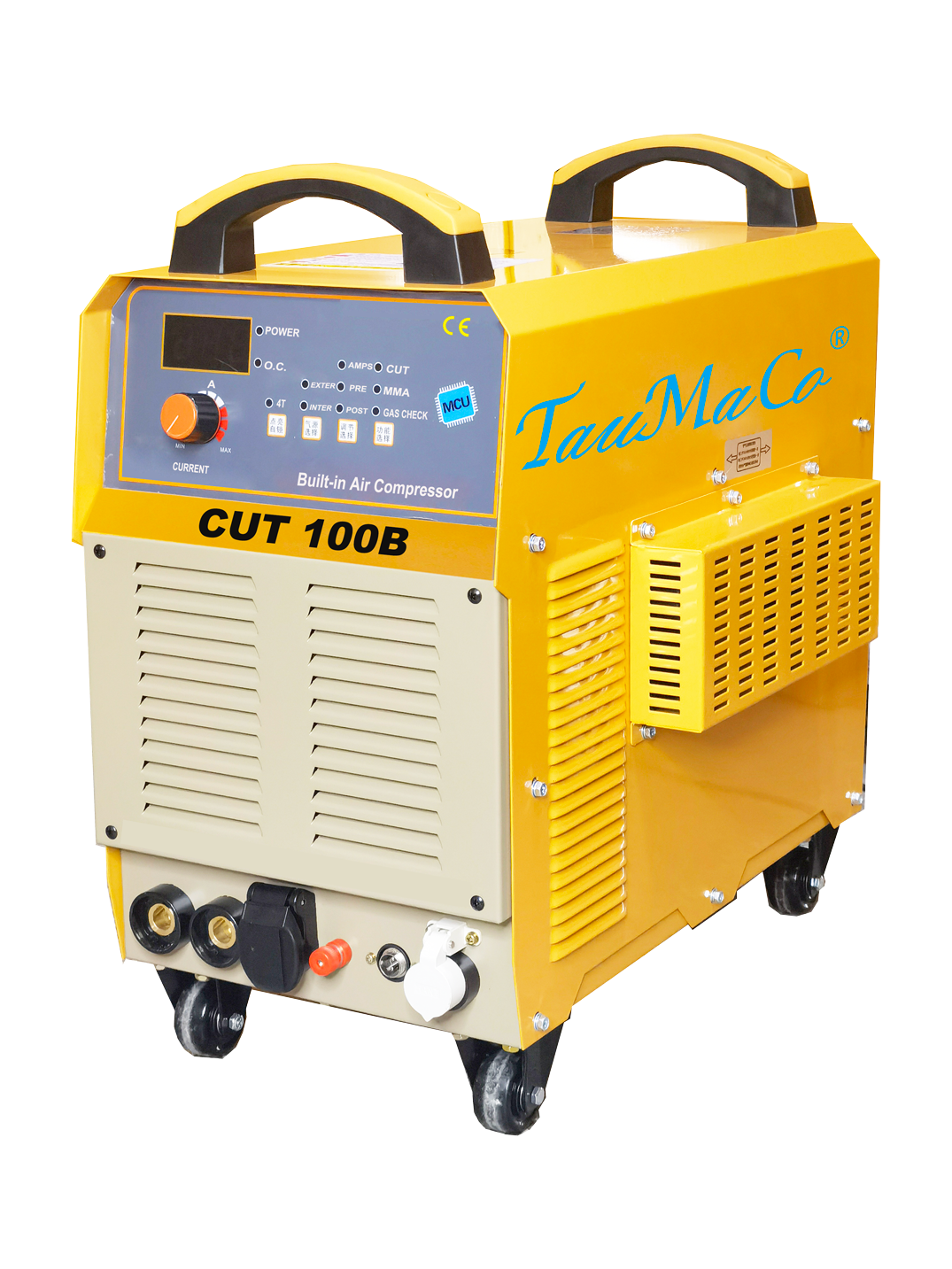

CUT-100B
CUT-100B combines three-phase 380V input, built-in and external air source compatibility, plasma cutting plus manual arc welding, and a higher-output inverter platform designed for thicker iron, stainless steel, and aluminum plate cutting in fabrication shops, field work, and maintenance environments.
An all-in-one inverter plasma cutting and MMA platform with integrated air source support, optional external compressed air connection, and stronger three-phase output for heavier cutting and repair work.
CUT-100B Technical Specifications
Core electrical data, air source configuration, and cutting capability for the CUT-100B built-in air compressor plasma arc cutting machine.
Higher-output built-in compressor plasma system for thicker plate cutting and heavier fabrication work.
CUT-100B is positioned for users who want the convenience of an integrated air source but need more cutting reserve than the smaller portable model, together with plasma cutting and MMA welding flexibility on one inverter platform.
Dual air supply and dual-function cut + weld capability
The machine supports both the built-in air compressor and external compressed air source while combining plasma cutting and MMA welding in one machine, making it practical for workshop fabrication, repair, and maintenance tasks.
All-in-one structure reduces setup dependence in workshop and field use
Power source, air compressor, and cutting system are integrated into one compact machine body, helping reduce accessory dependence and making the unit easier to deploy for installation, maintenance, and repair work.
20 kHz IGBT inverter technology for compact and stable arc performance
The power section uses a 20 kHz IGBT inverter platform to support stable arc characteristics, efficient operation, and a more compact machine body than conventional transformer-based designs.
Air-cooled construction with 60% duty cycle at 25°C
The specification table lists air cooling for both power source and torch, 60% duty cycle at 25°C, Class F insulation, and IP21S enclosure protection for regular fabrication and maintenance work.
Compressed-air cutting performance centered on the stated carbon steel range
The table specifies compressed air as the plasma gas, 25 mm quality cutting capacity on carbon steel, and maximum cutting thickness up to 40 mm with the built-in air source or 45 mm with an external air source.
Standardized product positioning
- Model: CUT-100B (Built-in Air Compressor)
- Type: inverter plasma arc cutting machine
- Functions: plasma cutting plus manual arc welding
- Air source: built-in plus external air support
- Input: three-phase 380V
Built-in compressor support with external air expansion when needed
- Built-in air supply helps keep the machine independent from shop compressor layout.
- External air source remains available for broader process flexibility.
- Stable cutting quality is available without relying only on an external air system.
- Useful for fabrication shops, maintenance teams, and field service work.
Built for plate cutting and repair across fabrication environments
- Carbon steel, stainless steel, and aluminum plate cutting
- Workshop fabrication, installation, maintenance, and repair work
- Mechanical cutting, slotting, and opening tasks
- Use cases that benefit from built-in or external air supply
Table-backed cutting references
- Quality cutting capacity: 25 mm carbon steel
- Maximum cutting thickness with built-in air: 40 mm
- Maximum cutting thickness with external air: 45 mm
- Applicable plasma gas: compressed air
Choose built-in compressor, professional IGBT, or heavy-duty HD plasma systems by air supply, output, and continuous-duty demand.
This plasma lineup combines integrated CUT-B machines for mobile cutting and repair with LGK inverter and heavy-duty HD systems for higher-output fabrication, structural work, maintenance, and CNC-ready industrial applications.
All-in-one plasma plus MMA machines for portable service work and workshop flexibility
- CUT-80B prioritizes dual-voltage mobility and lighter plate cutting in a more compact all-in-one format.
- CUT-100B and CUT-120B raise three-phase output for thicker sections while retaining built-in and external air support.
- Choose this group when independent air supply, field deployment, and combined cutting plus stick capability matter most.
External-air industrial plasma cutters for fabrication shops, maintenance teams, and medium to heavy plate work
- LGK-63IGBT covers compact 63A cutting with divided-voltage output options and a smaller 26 kg machine body.
- LGK-120IGBT and LGK-200IGBT extend the range for 100% duty cycle production cutting with higher-quality cut capacity.
- Choose this group when dedicated compressed air, industrial inverter efficiency, and manual or CNC-ready cutting are the main priorities.
Maximum-output plasma platforms for thick carbon steel, longer cycles, and demanding production environments
- LGK-300HD and LGK-400HD deliver 100% duty cycle at 40°C with non-contact arc ignition for severe industrial duty.
- These models support thicker manual or CNC cutting with air- or water-cooled torch options and compressed-air supply.
- Choose this group when thicker plate, continuous operation, and high-output structural or shipyard work are the main requirements.
Verify package scope and application suitability before order confirmation.
Published specifications, standard delivery scope, and accessory ratings are for reference only and may change without notice. Included plasma torch assemblies, work return clamps, air regulators, filters, air hoses, interconnection leads, CNC interface cables, built-in compressor components, water-cooling units, plugs, consumables, and other accessories may vary by model, package, and destination market. Before supply, confirm the required plasma cutting application, any auxiliary MMA function where applicable, input power, output current, duty cycle, air source configuration, torch or lead length, target cut thickness, and applicable local compliance requirements for the intended application.
