CONSUMABLES
TRG TORCH SERIES | MIG TORCHES
CONSUMABLES
TRG Contact Tips Specifications

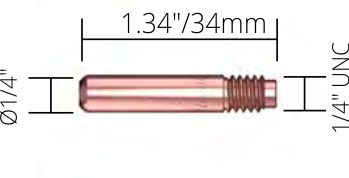

1. TRG 200A/300A/400A/500A Series
| Order Code | Description | Wire Size (mm) | Wire Size (inch) | Material | Diameter | Length (mm) |
|---|---|---|---|---|---|---|
| 308-436 | Contact Tip | 1 | 0.04 | Ecu | Ø6.35(1/4") | 34 |
| 954-914 | Contact Tip | 0.6 | 0.023 | Ecu | Ø6.35(1/4") | 34 |
| 861-568 | Contact Tip | 0.8 | 0.03 | Ecu | Ø6.35(1/4") | 34 |
| 602-600 | Contact Tip | 0.9 | 0.035 | Ecu | Ø6.35(1/4") | 34 |
| 542-805 | Contact Tip | 1.2 | 0.045 | Ecu | Ø6.35(1/4") | 34 |
| 438-234 | Contact Tip | 1.3 | 0.052 | Ecu | Ø6.35(1/4") | 34 |
| 460-932 | Contact Tip | 1.6 | 1/16" | Ecu | Ø6.35(1/4") | 34 |

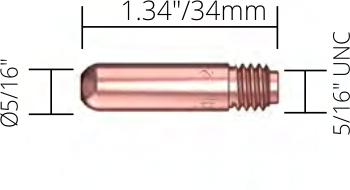

2. TRG 300A/400A/500A Series
| Order Code | Description | Wire Size (mm) | Wire Size (inch) | Material | Diameter | Length (mm) |
|---|---|---|---|---|---|---|
| 812-039 | Contact Tip | 1 | 0.04 | Ecu | Ø7.9(5/16") | 34 |
| 399-422 | Contact Tip | 0.8 | 0.03 | Ecu | Ø7.9(5/16") | 34 |
| 505-848 | Contact Tip | 0.9 | 0.035 | Ecu | Ø7.9(5/16") | 34 |
| 138-652 | Contact Tip | 1.2 | 0.045 | Ecu | Ø7.9(5/16") | 34 |
| 468-637 | Contact Tip | 1.3 | 0.052 | Ecu | Ø7.9(5/16") | 34 |
| 752-102 | Contact Tip | 1.4 | 0.055 | Ecu | Ø7.9(5/16") | 34 |
| 465-170 | Contact Tip | 1.8 | 0.071 | Ecu | Ø7.9(5/16") | 34 |
| 549-331 | Contact Tip | 1.6 | 1/16" | Ecu | Ø7.9(5/16") | 34 |
| 153-092 | Contact Tip | 2.4 | 3/32" | Ecu | Ø7.9(5/16") | 34 |
| 822-997 | Contact Tip | 1.2A | 3/64"A | Ecu | Ø7.9(5/16") | 34 |
| 466-240 | Contact Tip | 2 | 5/64" | Ecu | Ø7.9(5/16") | 34 |

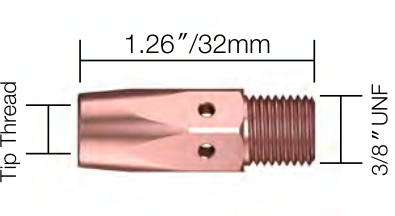

TRG Diffuser Specifications
TRG 200A/300A Diffuser
| Order Code | Description | Material | Thread Size | Length (mm) |
|---|---|---|---|---|
| 565-923 | Gas Diffuser For Std Tip | Copper | 1/4"-20 UNC - 3/8"-24 UNF | 32 |
| 444-312 | Gas Diffuser For H.D Tip | Copper | 1/4"-20 UNC - 3/8"-24 UNF | 32 |

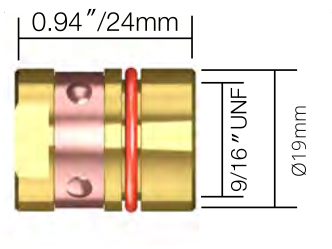

TRG Head Specifications
TRG 200A/300A/400A/500A Head
| Order Code | Description | Material | Thread Size | Diameter (mm) | Length (mm) |
|---|---|---|---|---|---|
| 918-368 | Retaining Head Assembly | Brass | 9/16-18 UNF | Ø18.8 | 23.8 |

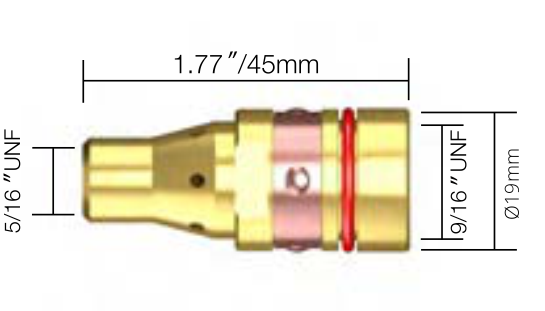

TRG 300A/400A/500A Head
| Order Code | Description | Material | Thread Size | Diameter (mm) | Length (mm) |
|---|---|---|---|---|---|
| 986-184 | Retaining Head Assembly | Brass | 9/16"-18 UNF | Ø18.8 | 44.5 |

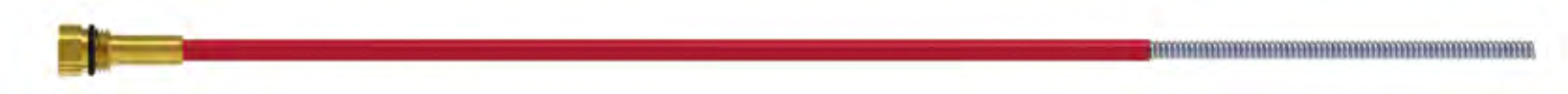

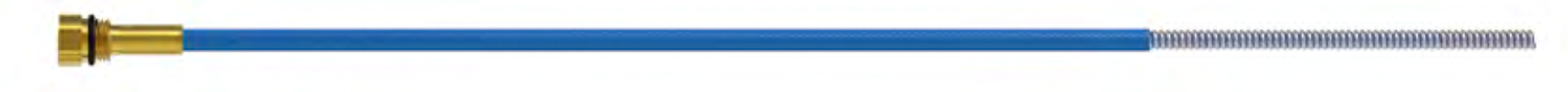

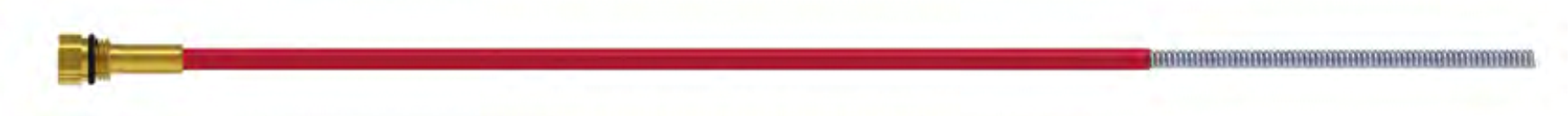

TRG Liners Specifications
TRG 200A Liners (0.6mm)
| Order Code | Description | Length | Nipple | Wire Size (mm) | Wire Size (inch) |
|---|---|---|---|---|---|
| 471-909 | Steel Liner x 10ft | 3.80m | Brass Nipple | 0.6 | 0.023 |
| 237-409 | Steel Liner x 15ft | 4.90m | Brass Nipple | 0.6 | 0.023 |
| 488-440 | Steel Liner x 25ft | 8.10m | Brass Nipple | 0.6 | 0.023 |
TRG 200A/300A Liners (0.8mm)
| Order Code | Description | Length | Nipple | Wire Size (mm) | Wire Size (inch) |
|---|---|---|---|---|---|
| 657-848 | Steel Liner x 10ft | 3.80m | Brass Nipple | 0.8 | 0.03 |
| 189-468 | Steel Liner x 15ft | 4.90m | Brass Nipple | 0.8 | 0.03 |
| 246-647 | Steel Liner x 25ft | 8.10m | Brass Nipple | 0.8 | 0.03 |
TRG 200A/300A/400A/500A Liners (0.9-1.2mm)
| Order Code | Description | Length | Nipple | Wire Size (mm) | Wire Size (inch) |
|---|---|---|---|---|---|
| 318-979 | Steel Liner x 10ft | 3.80m | Brass Nipple | 0.9-1.2 | 0.035-0.045 |
| 782-716 | Steel Liner x 15ft | 4.90m | Brass Nipple | 0.9-1.2 | 0.035-0.045 |
| 956-122 | Steel Liner x 25ft | 8.10m | Brass Nipple | 0.9-1.2 | 0.035-0.045 |
TRG 400A/500A Liners (1.2-1.6mm)
| Order Code | Description | Length | Nipple | Wire Size (mm) | Wire Size (inch) |
|---|---|---|---|---|---|
| 715-826 | Steel Liner x 1ft | 0.30m | Brass Nipple | 1.2-1.6 | 0.045-1/16" |
| 578-790 | Steel Liner x 10ft | 3.80m | Brass Nipple | 1.2-1.6 | 0.045-1/16" |
| 653-564 | Steel Liner x 15ft | 4.90m | Brass Nipple | 1.2-1.6 | 0.045-1/16" |
| 812-317 | Steel Liner x 25ft | 8.10m | Brass Nipple | 1.2-1.6 | 0.045-1/16" |

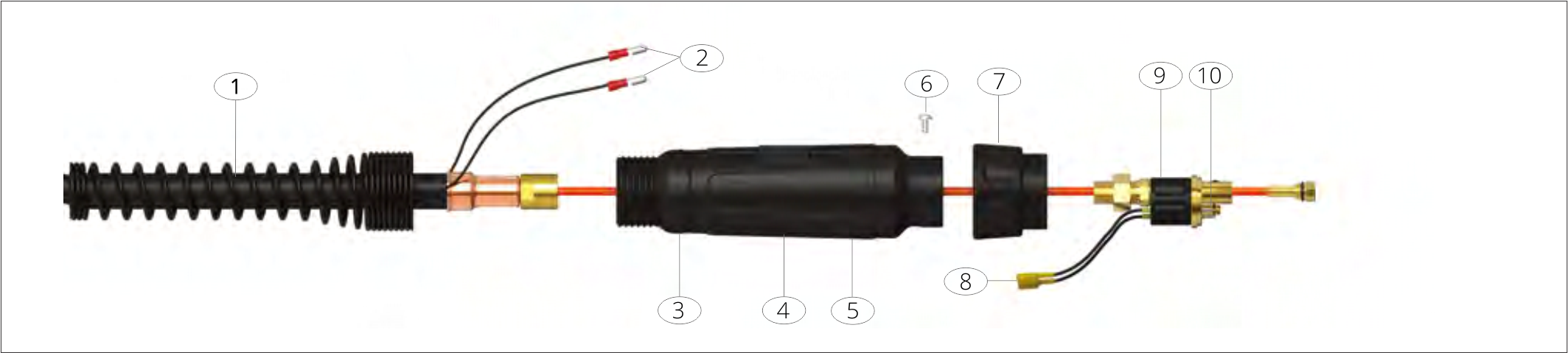

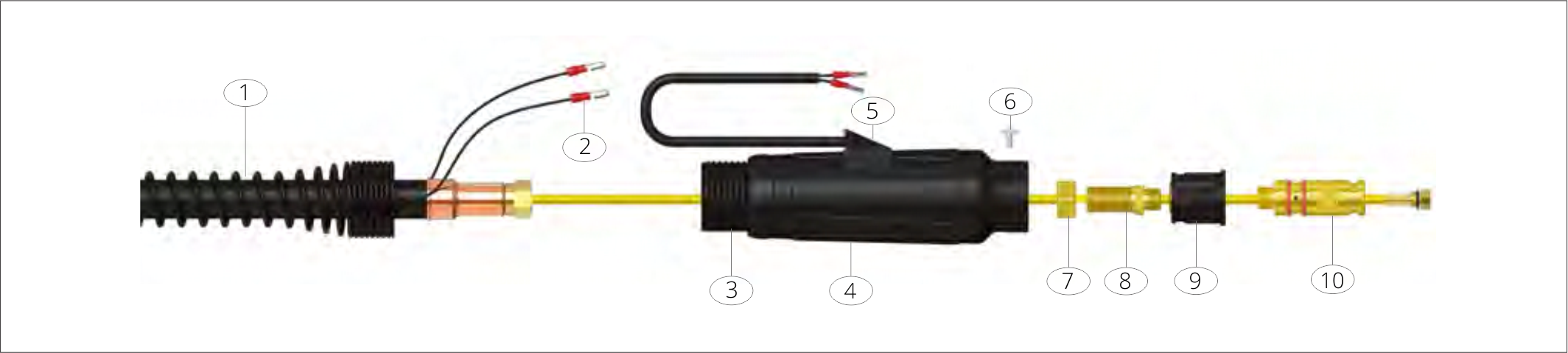

Euro Termination Spare Parts
TRG 200/300 Series
| Order Code | Description | Position No. |
|---|---|---|
| 535-139 | Housing Spring (Short) | 1 |
| 285-848 | Cable Terminal Male | 2 |
| 641-893 | Spring Cable Support Nut | 3 |
| 917-990 | Large Housing Cover | 4 |
| 950-752 | Gun Plug Housing Assembly | 5 |
| 688-057 | Gun Plug Screw | 6 |
| 113-123 | Euro Housing Nut Assembly | 7 |
| 695-731 | Gun Plug Terminal Female | 8 |
| 968-238 | Euro Gun Plug Body | 9 |
| 108-476 | Gun Plug "O" Ring | 10 |
TRG 400/500 Series
| Order Code | Description | Position No. |
|---|---|---|
| 535-139 | Housing Spring (Short) | 1 |
| 285-848 | Cable Terminal Male | 2 |
| 641-893 | Spring Cable Support Nut | 3 |
| 917-990 | Large Housing Cover | 4 |
| 950-752 | Gun Plug Housing Assembly | 5 |
| 166-270 | Gun Plug Screw | 6 |
| 363-969 | Euro Housing Nut Assembly | 7 |
| 695-731 | Gun Plug Terminal Female | 8 |
| 624-235 | Gun Plug Body | 9 |
| 108-476 | Gun Plug 'O' Ring | 10 |

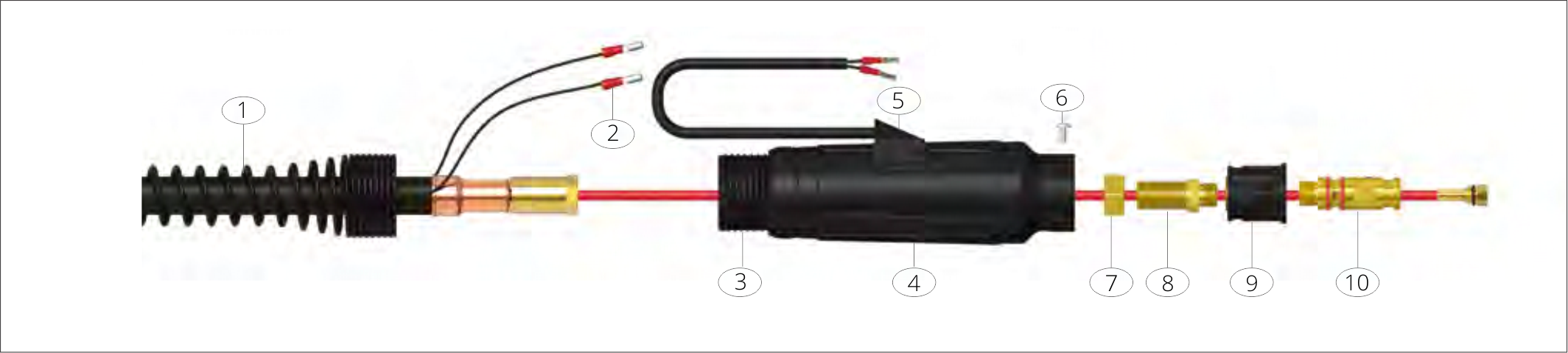

Tweco® Termination Spare Parts
TRG 200/300/400 Series
| Order Code | Description | Position No. |
|---|---|---|
| 535-139 | Housing Spring (Short) | 1 |
| 285-848 | Cable Terminal Male | 2 |
| 641-893 | Spring Cable Support Nut | 3 |
| 950-752 | Gun Plug Housing Assembly | 4 |
| 917-990 | Large Housing Wire Cover | 5 |
| 688-057 | Gun Plug Screw | 6 |
| 149-183 | Cable End Lock Nut | 7 |
| 607-876 | Cable End Adaptor | 8 |
| 383-331 | Hybrid Plug Body TWC 1-4 | 9 |
| 471-119 | Tweco® 1-4 Power Pin | 10 |
TRG 500 Series
| Order Code | Description | Position No. |
|---|---|---|
| 535-139 | Housing Spring (Short) | 1 |
| 285-848 | Cable Terminal Male | 2 |
| 641-893 | Spring Cable Support Nut | 3 |
| 950-752 | Gun Plug Housing Assembly | 4 |
| 917-990 | Large Housing Wire Cover | 5 |
| 688-057 | Gun Plug Screw | 6 |
| 149-183 | Cable End Lock Nut | 7 |
| 607-876 | Cable End Adaptor | 8 |
| 383-331 | Hybrid Plug Body TWC 5 | 9 |
| 760-159 | Tweco®5 Power Pin | 10 |

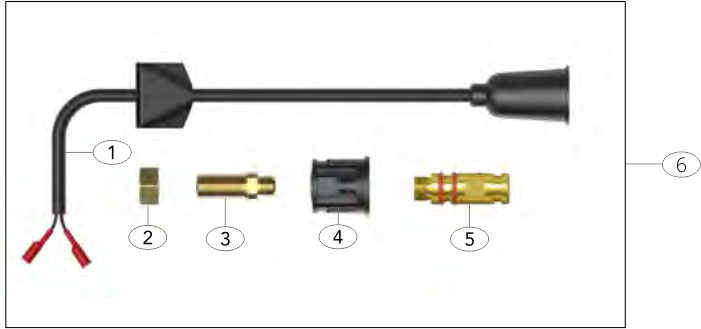

USA Direct Plug Connector Kits

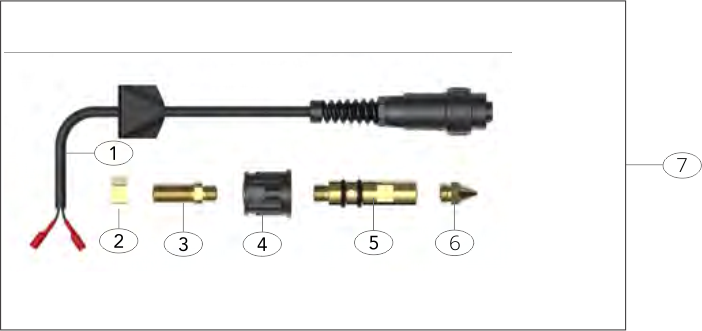

Miller® Direct Plug Connector
| Order Code | Description | Position No. |
|---|---|---|
| 166-697 | Miller® Plug Assembly | 1 |
| 149-183 | Cable End Lock Nut | 2 |
| 607-876 | Cable End Adaptor | 3 |
| 383-331 | Hybrid Plug Body TWC 1-4 | 4 |
| 467-884 | Miller® Power Pin | 5 |
| 615-658 | Wire Guide 0.35" - 1/16" | 6 |
| 787-078 | Wire Guide 5/16" - 3/32" | 6 |
| 622-348 | Miller® Rear End Kit | 7 |

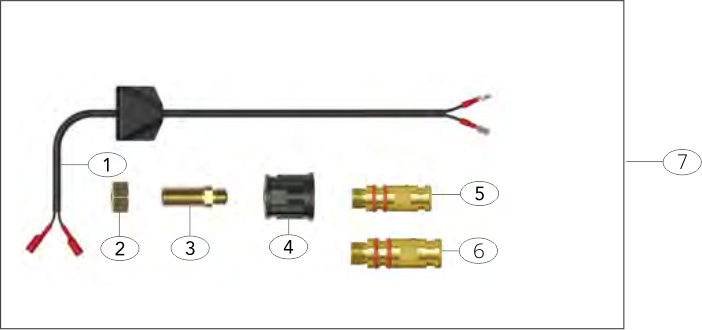

Tweco® Direct Plug Connector
| Order Code | Description | Position No. |
|---|---|---|
| 826-920 | Switch Wire Assembly | 1 |
| 149-183 | Cable End Lock Nut | 2 |
| 607-876 | Cable End Adaptor | 3 |
| 383-331 | Hybrid Plug Body TWC 1-4 | 4 |
| 471-119 | Tweco® 1-4 Power Pin | 5 |
| 475-191 | Tweco®5 Power Pin | 6 |
| 622-348 | Tweco® Rear End Kit | 7 |
| 817-311 | Tweco® Rear End Kit | 7 |

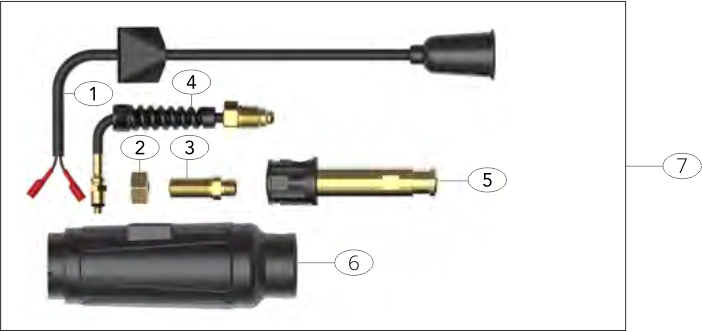

Lincoln® Direct Plug Connector
| Order Code | Description | Position No. |
|---|---|---|
| 724-018 | Lincoln® Plug Assembly | 1 |
| 149-183 | Cable End Lock Nut | 2 |
| 607-876 | Cable End Adaptor | 3 |
| 757-750 | Lincoln® Gas Tube Assembly | 4 |
| 273-076 | Lincoln® Power Pin | 5 |
| 796-281 | Gun Plug Housing Assembly Lincoln® | 6 |
| 162-865 | Lincoln® Rear End Kit | 7 |

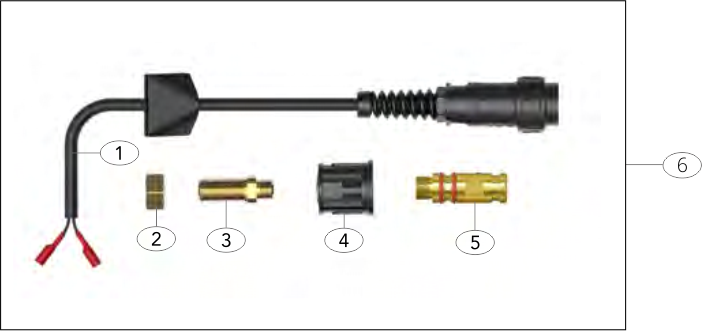

LPW Direct Plug Connector
| Order Code | Description | Position No. |
|---|---|---|
| 166-697 | Miller® Plug Assembly | 1 |
| 149-183 | Cable End Lock Nut | 2 |
| 607-876 | Cable End Adaptor | 3 |
| 383-331 | Hybrid Plug Body TWC 1-4 | 4 |
| 471-119 | Tweco® 1-4 Power Pin | 5 |
| 955-372 | LPW Rear End Kit | 6 |
LPB Direct Plug Connector
| Order Code | Description | Position No. |
|---|---|---|
| 724-018 | Lincoln® Plug Assembly | 1 |
| 149-183 | Cable End Lock Nut | 2 |
| 607-876 | Cable End Adaptor | 3 |
| 383-331 | Hybrid Plug Body TWC 1-4 | 4 |
| 471-119 | Tweco® 1-4 Power Pin | 5 |
| 297-522 | LPB Rear End Kit | 6 |

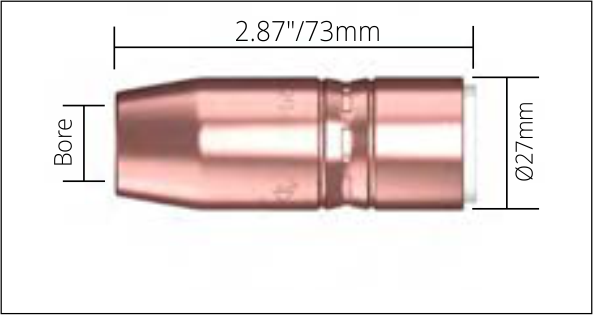

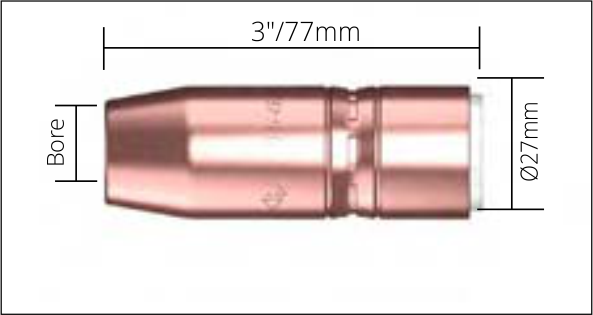

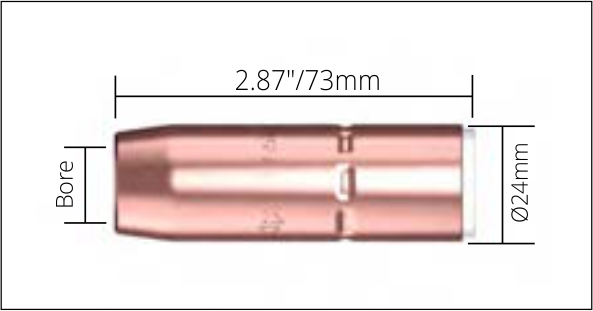

| Order Code | Description | Bore | Wall | Material | Series Type |
|---|---|---|---|---|---|
| 457-519 | 1/8" Recess tip 3/8" | 9.5 | 2.25mm | Copper | 4-series (1/8" tip, 2.25mm wall) |
| 573-915 | 1/8" Recess tip 1/2" | 12.7 | 2.25mm | Copper | 4-series (1/8" tip, 2.25mm wall) |
| 366-022 | 1/8" Recess tip 5/8" | 16 | 2.25mm | Copper | 4-series (1/8" tip, 2.25mm wall) |
| 623-058 | 1/8" Recess tip 3/4" | 19 | 2.25mm | Copper | 4-series (1/8" tip, 2.25mm wall) |
| 288-729 | 1/4" Recess tip 1/2" | 12.7 | 2.40mm | Copper | 5-series (1/4" tip, 2.40mm wall) |
| 506-239 | 1/4" Recess tip 5/8" | 16 | 2.40mm | Copper | 5-series (1/4" tip, 2.40mm wall) |
| 905-901 | 1/4" Recess tip 3/4" | 19 | 2.40mm | Copper | 5-series (1/4" tip, 2.40mm wall) |
| 200-289 | 1/8" Recess tip 1/2" | 12.7 | 2.40mm | Copper | 6-series (1/8" tip, 2.40mm wall) |
| 687-139 | 1/8" Recess tip 5/8" | 16 | 2.40mm | Copper | 6-series (1/8" tip, 2.40mm wall) |
| 910-300 | 1/8" Recess tip 3/4" | 19 | 2.40mm | Copper | 6-series (1/8" tip, 2.40mm wall) |
