CONSUMABLES

PNA TORCH SERIES | MIG TORCHES

CONSUMABLES

Three vape pen devices, two in silver and one in rose gold, placed on a reflective black surface.
Six beige plastic plumbing pipes of varying sizes, labeled JL-200, JL-350, JL-500, positioned on a white background.
Two copper-colored metal components with threaded ends, measured at 45mm and 40mm in length, with 6mm diameter threaded ends. The longer component has a length of 45mm, and the shorter one is 40mm long.
Electrical component with three cylindrical white insulators, copper connectors, and several copper and gray parts.
Order Code 订单代码 Description 描述 OEM Part No. OEM 零件号 Model 型号
PNA 200A Series Nozzles PNA 200A 系列喷嘴
734-992 DetachableCylindrical Nozzle Ø15mm 分离式柱形喷嘴 Ø15mm - PNA 200A
580-081 DetachableConical Nozzle Ø13mm 分离式锥形喷嘴 Ø13mm - PNA 200A
621-566 Nozzle Insulator - Black 喷嘴绝缘套管 - 黑色 - PNA 200A
360-606 Nozzle Insulator - Yellow 喷嘴绝缘套管 - 黄色 - PNA 200A
371-753 IntegratedNozzle Ø13mm 一体式喷嘴 Ø13mm TGN01208 PNA 200A
PNA 350A Series Nozzles PNA 350A 系列喷嘴
630-246 Cylindrical Nozzle Ø15mm 柱形喷嘴 Ø15mm TGN01610 PNA 350A
987-483 Conical Nozzle Ø12mm 锥形喷嘴 Ø12mm TGN00044 PNA 350A
PNA 500A Series Nozzles PNA 500A 系列喷嘴
912-788 Cylindrical Nozzle Ø18.7mm 柱形喷嘴 Ø18.7mm TGN00014 PNA 500A
771-406 Conical Nozzle Ø14mm 锥形喷嘴 Ø14mm TGN00060 PNA 500A
Collection of small metal fittings, mostly copper and brass, with threaded and hollow sections, arranged in a row on a light background.
Close-up of multiple metallic copper and gold-colored vape pens or electronic cigarettes arranged in a row with varying lengths.
Comparison of two pink ceramic or plastic components labeled 350A and 500A with measurements in millimeters. The 350A measures approximately 21.5mm in height and 15.5mm in width, with a cylindrical shape and three small holes. The 500A measures approximately 26mm in height and 19.5mm in width, also cylindrical with three small holes.
Close-up of two brass and black mechanical components with rubber seals and threaded interiors on a white background.
A black power tool with brass fittings and blue hose attachments.

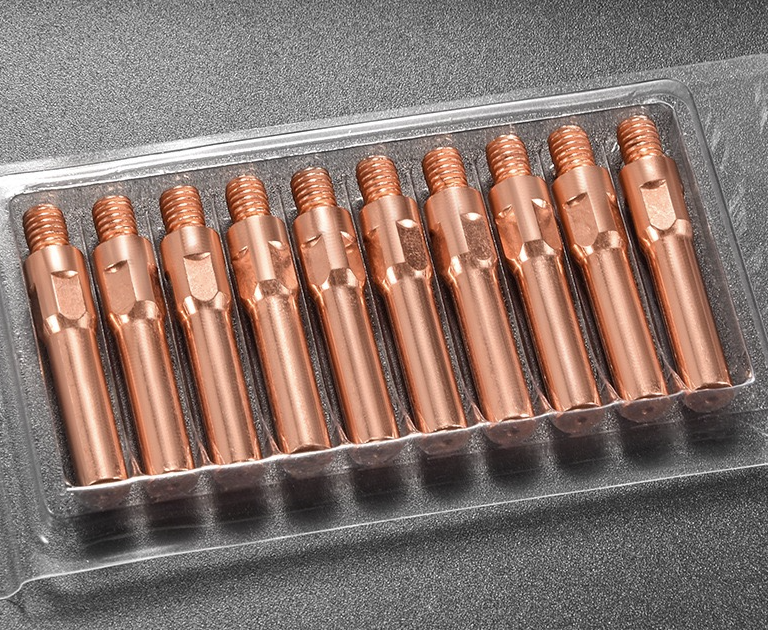

Ten copper-colored threaded fasteners or bolts in a plastic tray.
Order Code
订单编码		 Size
尺寸		 Material
材料		 OEM Part No.
OEM 零件号		 Description
描述		 Model
851-907 M10 E-Cu
紫铜		 - Contact Tip Holder
导电嘴座		 PNA 200A
282-127 M10 × 1 E-Cu
紫铜		 - Contact Tip Holder
导电嘴座		 PNA 200A
513-309 M10 Brass
黄铜		 - Contact Tip Holder
导电嘴座		 PNA 200A
822-980 M10 × 1 Brass
黄铜		 - Contact Tip Holder
导电嘴座		 PNA 200A
319-538 - Brass
黄铜		 - Contact Tip Holder
导电嘴座		 PNA 350A
580-485 - E-Cu
紫铜		 - Contact Tip Holder
导电嘴座		 PNA 350A
637-419 - Brass
黄铜		 - Contact Tip Holder
导电嘴座		 PNA 500A
883-679 - E-Cu
紫铜		 - Contact Tip Holder
导电嘴座		 PNA 500A
Two pink ceramic bridge or annealing teething pegs with measurements labeled in millimeters, one larger and one smaller, placed on a black textured surface.
Order Code Description
描述		 OEM Part No.
OEM 零件号		 Model
919-867 Gas Diffuser
分流器		 TGR01001 PNA 350A
226-696 Gas Diffuser
分流器		 TGR00902 PNA 500A
Four black and gold couplings of different sizes lined up on a white surface.
Order Code Description OEM Part No. Model
621-566 Insulator for Split Nozzle, Black - PNA 200A
360-606 Insulator for Split Nozzle, Yellow - PNA 200A
725-603 Insulator, Black TFZ00002 PNA 350A
982-002 Insulator, Yellow - PNA 350A
620-689 Insulator, Black TFZ00006 PNA 500A
936-394 Insulator, Yellow - PNA 500A
Three flexible hoses with different diameters and colors, each with a brass fitting on one end, labeled P200A, P350A, and P500A, and available in lengths of 3M, 4M, and 5M.
Order Code Description OEM Part No. Model
846-821 Green Liner, for Ø0.8-1.0mm Wire 3.5m - PNA 200A
842-141 Green Liner, for Ø0.8-1.0mm Wire 5.5m - PNA 200A
638-419 Blue Liner, for Ø1.0-1.2mm Wire 3.5m - PNA 350A
707-148 Blue Liner, for Ø1.0-1.2mm Wire 5.5m - PNA 350A
431-756 Red Liner, for Ø1.2-1.6mm Wire 3.5m - PNA 500A
350-728 Red Liner, for Ø1.2-1.6mm Wire 5.5m - PNA 500A
Contact Tips Specifications
Order Code 订单编码
Size 尺寸
Material 材料
Wire Size 适用焊丝直径
OEM Part No. OEM 零件号
M6 × 40 Series Contact Tips
254-443 M6 × 40 × 0.8 CuCrZr / 铬锆铜 0.8 mm —
408-358 M6 × 40 × 1.0 CuCrZr / 铬锆铜 1.0 mm —
120-055 M6 × 40 × 1.2 CuCrZr / 铬锆铜 1.2 mm —
401-375 M6 × 40 × 1.4 CuCrZr / 铬锆铜 1.4 mm —
268-157 M6 × 40 × 1.6 CuCrZr / 铬锆铜 1.6 mm —
116-863 M6 × 40 × 0.8 E-Cu / 紫铜 0.8 mm —
111-630 M6 × 40 × 1.0 E-Cu / 紫铜 1.0 mm —
107-938 M6 × 40 × 1.2 E-Cu / 紫铜 1.2 mm —
120-935 M6 × 40 × 1.4 E-Cu / 紫铜 1.4 mm —
244-927 M6 × 40 × 1.6 E-Cu / 紫铜 1.6 mm —
M6 × 45 Series Contact Tips
672-072 M6 × 45 × 0.8 CuCrZr / 铬锆铜 0.8 mm TET00841
140-817 M6 × 45 × 0.9 CuCrZr / 铬锆铜 0.9 mm TET00958 / TET00930
603-991 M6 × 45 × 1.0 CuCrZr / 铬锆铜 1.0 mm TET01054
876-357 M6 × 45 × 1.2 CuCrZr / 铬锆铜 1.2 mm TET01266
677-755 M6 × 45 × 1.4 CuCrZr / 铬锆铜 1.4 mm —
283-609 M6 × 45 × 1.6 CuCrZr / 铬锆铜 1.6 mm —
797-266 M6 × 45 × 0.8 E-Cu / 紫铜 0.8 mm —
112-615 M6 × 45 × 0.9 E-Cu / 紫铜 0.9 mm —
784-651 M6 × 45 × 1.0 E-Cu / 紫铜 1.0 mm —
833-041 M6 × 45 × 1.2 E-Cu / 紫铜 1.2 mm —
496-779 M6 × 45 × 1.4 E-Cu / 紫铜 1.4 mm —
233-825 M6 × 45 × 1.6 E-Cu / 紫铜 1.6 mm —
286-769 M6 × 40 × 1.6 E-Cu / 紫铜 1.6 mm —

Welcome to Our MIG Torches Section

Explore our extensive range of high-quality MIG welding products designed for both professionals and hobbyists. Our product features everything from durable welding torches to precision contact tips, ensuring you have the right tools for any welding project.

Why Choose Our Products?

  • Superior Quality: Our products are manufactured to meet the highest industry standards, ensuring reliability and performance.

  • Wide Selection: Whether you need components for commercial applications or personal projects, we have a diverse selection to meet your needs.

  • Competitive Pricing: We offer affordable pricing without compromising on quality, making it easier for you to find the right equipment within your budget.

  • Expert Support: Our knowledgeable team is here to assist you in selecting the best products for your specific requirements.

Featured Categories

  • Welding Torches: Explore our range of air-cooled and water-cooled torches suitable for various applications.

  • Contact Tips: Discover our range of contact tips available in different sizes and materials to enhance your welding efficiency.

  • Accessories: From gas hoses to cable assemblies, find all the necessary accessories to complement your welding setup.

Get Started

Browse through our products and discover the perfect solutions for your welding needs. If you have any questions or need assistance, feel free to reach out to our support team. We look forward to helping you achieve exceptional results in your welding projects!

Legal Notice

All product names, trademarks, and registered trademarks mentioned in this document are the property of their respective owners. Our products are offered as compatible alternatives and are not original manufacturer parts. Users are advised to verify compatibility before use.
