CONSUMABLES
ESB TORCH SERIES | MIG TORCHES
CONSUMABLES
Nozzle Specifications
Our precision-engineered nozzles are designed for optimal performance across various applications. Each nozzle is manufactured to exact specifications with carefully calibrated bore sizes to ensure consistent flow rates and superior durability.
| Order Code | Description | Bore Size |
|---|---|---|
| 330-320 | Nozzle | 1/2" (13mm) |
| 743-037 | Nozzle | 9/16" (14mm) |
| 698-384 | Nozzle | 5/8" (16mm) |
| 795-594 | Nozzle | 5/8" (16mm) |
| 782-961 | Nozzle | 0.43" (11mm) |
| 377-618 | Nozzle | 15/32" (12mm) |
| 842-126 | Nozzle | 1/2" (13mm) |
| 746-913 | Nozzle | 9/16" (14mm) |
Note: All measurements are provided in both imperial and metric units. For custom specifications or additional technical information, please contact our support team.
ESB Contact Tips
Our premium ESB Contact Tips are engineered for superior performance and longevity in welding applications. Available in various sizes and materials, these precision-manufactured components ensure consistent wire feeding and optimal electrical conductivity.
ECu (Electrolytic Copper)
Excellent electrical conductivity and suitable for standard welding applications. Cost-effective solution for general purpose welding tasks.
CuCrZr (Copper Chromium Zirconium)
Superior heat resistance and extended service life. Recommended for high-duty cycle applications and demanding industrial environments.
M6 Contact Tips
| Order Code | Description | Wire Size | Material |
|---|---|---|---|
| 300-278 | Contact Tip M6 | 0.6mm/.023" | ECu |
| 420-459 | Contact Tip M6 | 0.8mm/.030" | ECu |
| 597-971 | Contact Tip M6 | 0.8mm/.030" | ECu |
| 420-019 | Contact Tip M6 | 0.9mm/.035" | ECu |
| 283-875 | Contact Tip M6 | 1.0mm/.040" | ECu |
| 621-062 | Contact Tip M6 | 1.2mm/.045" | ECu |
| 666-988 | Contact Tip M6 | 0.6mm/.023" | CuCrZr |
| 225-494 | Contact Tip M6 | 0.8mm/.030" | CuCrZr |
| 154-878 | Contact Tip M6 | 0.8mm/.030" | CuCrZr |
| 670-771 | Contact Tip M6 | 0.9mm/.035" | CuCrZr |
| 854-702 | Contact Tip M6 | 1.0mm/.040" | CuCrZr |
| 676-830 | Contact Tip M6 | 1.1mm/.043" | CuCrZr |
| 482-436 | Contact Tip M6 | 1.2mm/.045" | CuCrZr |
| 268-396 | Contact Tip M6 | 1.4mm/.055" | CuCrZr |
M8 Contact Tips
| Order Code | Description | Wire Size | Material |
|---|---|---|---|
| 545-933 | Contact Tip M8 | 0.8mm/.030" | CuCrZr |
| 975-817 | Contact Tip M8 | 0.9mm/.035" | CuCrZr |
| 792-432 | Contact Tip M8 | 1.0mm/.040" | CuCrZr |
| 442-533 | Contact Tip M8 | 1.1mm/.043" | CuCrZr |
| 536-147 | Contact Tip M8 | 1.2mm/.045" | CuCrZr |
| 592-310 | Contact Tip M8 | 1.4mm/.055" | CuCrZr |
| 706-554 | Contact Tip M8 | 1.6mm/1/16" | CuCrZr |
| 134-372 | Contact Tip M8 | 1.6mm/1/16" (CO₂) | CuCrZr |
Note: All wire sizes are provided in both metric and imperial units. Contact tips are designed for optimal performance with their respective wire sizes. The CO₂ designation indicates a specialized design for carbon dioxide shielding gas applications.
ESB Tip Adaptors
ESB Tip Adaptors are precision-engineered components designed to provide compatibility between different thread sizes in welding systems. These adaptors allow for greater flexibility in your welding setup by enabling the use of various contact tips with different torch necks.
Universal Compatibility
Our tip adaptors provide seamless integration between different thread standards, allowing you to use your preferred contact tips with various torch models.
Precision Engineering
Manufactured to exact specifications with high-quality materials to ensure perfect thread alignment and optimal electrical conductivity.
Extended Lifespan
Durable construction designed to withstand high temperatures and frequent use in demanding welding environments.
| Order Code | Description | Tip Thread | Neck Thread |
|---|---|---|---|
| 909-541 | Tip Adaptor | M6 | M10 |
| 406-349 | Tip Adaptor | M6 | M12 |
| 205-518 | Tip Adaptor | M8 | M12 |
| 482-980 | Tip Adaptor | M6 | M10 |
Compatibility Guide
- M6 to M10 adaptors (909-541, 482-980) are compatible with standard MIG/MAG torches and most European-style welding systems.
- M6 to M12 adaptors (406-349) are ideal for heavy-duty applications and industrial welding equipment.
- M8 to M12 adaptors (205-518) provide compatibility for larger diameter contact tips used in high-amperage welding applications.
Note: Always ensure proper installation of tip adaptors to maintain optimal electrical conductivity and heat transfer. Regularly inspect thread condition to prevent wear and ensure secure connections.
ESB Liner Selector Chart
Select the appropriate welding liner for your ESB torch based on wire type, size, and torch model. Our comprehensive chart helps you identify both recommended and compatible liners for optimal performance and wire feeding.
Steel Liners
Ideal for steel, stainless steel, and other hard wires. Provides excellent durability and consistent wire feeding in demanding applications. Available in various lengths and wire size ranges.
Nylon Liners
Perfect for soft wires such as aluminum and other non-ferrous materials. Reduces friction and prevents wire shaving, ensuring smooth feeding and extended liner life.
| Order Code | Description | Length | Wire Size | PSF160 | PSF250 | PSF315 | PSF400 |
|---|---|---|---|---|---|---|---|
| 422-293 | Steel Liner | 3m | .023"-.030"/0.6mm-0.8mm | ■ | ■ | ■ | ■ |
| 470-796 | Steel Liner | 4.5m | .023"-.030"/0.6mm-0.8mm | ■ | ■ | ■ | ■ |
| 772-815 | Steel Liner | 3m | .035"-.040"/0.9mm-1.0mm | ■ | ■ | ■ | ■ |
| 492-925 | Steel Liner | 4.5m | .035"-.040"/0.9mm-1.0mm | ■ | ■ | ■ | ■ |
| 747-849 | Steel Liner | 3m | .045"/1.2mm | ■ | ■ | ■ | ■ |
| 556-067 | Steel Liner | 3m | .045"/1.2mm | ■ | ■ | ■ | ■ |
| 256-189 | Steel Liner | 3m | 1/16"/1.6mm | □ | □ | □ | □ |
| 350-251 | Steel Liner | 4.5m | 1/16"/1.6mm | □ | □ | □ | □ |
| 178-531 | Nylon Liner | 3m | .035"-.040"/0.9mm-1.0mm | ■ | ■ | ■ | ■ |
| 981-038 | Nylon Liner | 4.5m | .035"-.040"/0.9mm-1.0mm | ■ | ■ | ■ | ■ |
| 355-225 | Nylon Liner | 3m | .045"/1.2mm | □ | □ | □ | □ |
| 656-290 | Nylon Liner | 4.5m | .045"/1.2mm | □ | □ | □ | □ |
| 375-966 | Nylon Liner | 4.5m | 1/16"/1.6mm | □ | □ | □ | □ |
Liner Selection Guide
How to Choose the Right Liner
1. Identify your torch model (PSF series) from the chart headers.
2. Determine the wire type and size you'll be using.
3. Select the appropriate liner length based on your torch cable length.
4. Choose a recommended liner (■) whenever possible for optimal performance.
Maintenance Tips
• Replace liners when wire feeding becomes inconsistent or when changing wire types.
• Clean liners regularly by blowing compressed air through them.
• Inspect liner ends for wear and damage before installation.
• Always cut liners to the correct length following manufacturer guidelines.
Note: For optimal wire feeding performance, always select a recommended liner (■) for your specific torch model and wire size combination. Compatible liners (□) will work but may not provide the same level of performance or durability.

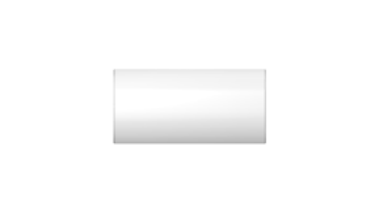

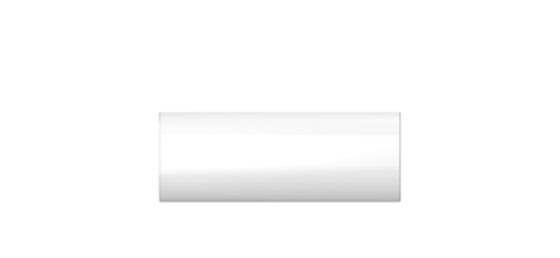

Nozzle Insulator Parts
Our high-quality nozzle insulators are designed to provide optimal thermal protection and electrical isolation for welding applications. Each component is precision-engineered to ensure consistent performance and extended service life.
| Order Code | Description | Dimensions |
|---|---|---|
| 265-801 | Nozzle Insulator | Standard Size (35mm × 15mm) |
| 313-228 | Nozzle Insulator | Compact Size (30mm × 12mm) |
| 932-905 | Nozzle Insulator | Extended Size (40mm × 18mm) |
| 331-753 | Nozzle Insulator | Heavy-Duty Size (38mm × 20mm) |
Note: All dimensions are approximate. Please refer to technical specifications for detailed measurements and tolerances. For custom sizes or special requirements, please contact our technical support team.
Welcome to Our MIG Torches Section
Explore our extensive range of high-quality MIG welding products designed for both professionals and hobbyists. Our product features everything from durable welding torches to precision contact tips, ensuring you have the right tools for any welding project.
Why Choose Our Products?
Superior Quality: Our products are manufactured to meet the highest industry standards, ensuring reliability and performance.
Wide Selection: Whether you need components for commercial applications or personal projects, we have a diverse selection to meet your needs.
Competitive Pricing: We offer affordable pricing without compromising on quality, making it easier for you to find the right equipment within your budget.
Expert Support: Our knowledgeable team is here to assist you in selecting the best products for your specific requirements.
Featured Categories
Welding Torches: Explore our range of air-cooled and water-cooled torches suitable for various applications.
Contact Tips: Discover our range of contact tips available in different sizes and materials to enhance your welding efficiency.
Accessories: From gas hoses to cable assemblies, find all the necessary accessories to complement your welding setup.
Get Started
Browse through our products and discover the perfect solutions for your welding needs. If you have any questions or need assistance, feel free to reach out to our support team. We look forward to helping you achieve exceptional results in your welding projects!
