CONSUMABLES
BND TORCH SERIES| MIG TORCHES
CONSUMABLES
| Order Code | Description | Bore Size | OEM P/N | Gas Diffuser TYPE |
|---|---|---|---|---|

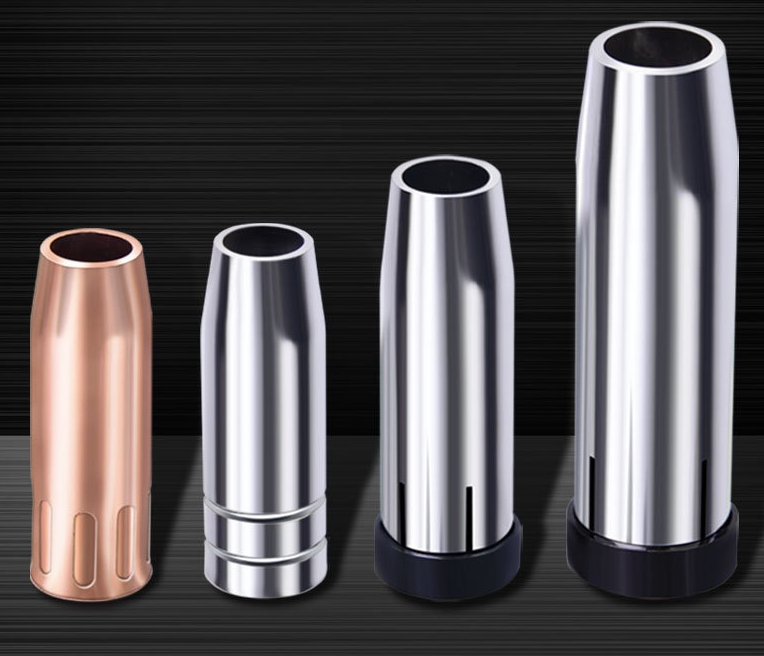

| 256-348 | Brass Nozzle/ 黄铜尖形喷管 (Tapered) | 10mm / 3/8" | 4295 | 4335 |
| 259-730 | Brass Nozzle/ 黄铜喷管 | 16mm / 5/8" | 4391 | 4235, 4335 |
| 846-976 | Brass Nozzle/ 黄铜喷管 | 13mm / 1/2" | 4392 | 4235, 4335 |
| 986-073 | Copper Nozzle/ 紫铜 E-Cu 喷管 | 16mm / 5/8" | 4393 | 4235, 4335 |
| 979-225 | Copper Nozzle/ 紫铜 E-Cu 喷管 | 13mm / 1/2" | 4394 | 4235, 4335 |
| 194-907 | Brass Nozzle/ 黄铜喷管 | 19mm / 3/4" | 4491 | 4435, 4635 |
| 173-808 | Brass Nozzle/ 黄铜喷管 | 14mm / 9/16" | 4492 | 4435, 4635 |
| 542-352 | Brass Nozzle HD | 14mm / 9/16" | 4492HD | 4435, 4635 |
| 477-143 | Copper Nozzle/ 紫铜 E-Cu 喷管 | 19mm / 3/4" | 4591 | 4435, 4635 |
| 104-853 | Copper Nozzle/ 紫铜 E-Cu 喷管 | 14mm / 9/16" | 4592 | 4435, 4635 |
| 259-361 | Nozzle/ 喷管 | 16mm / 5/8" | 36-63 | 36 Insulator |
| Order Code | Description | Tip Series |
|---|---|---|
| 304-118 | Head Assembly | 7400 |
| 836-583 | Head Assembly | 1500 |
| 372-922 | Head Assembly | 7400 |
| 106-454 | Head Assembly | 1500 |
| Order Code | Description | OEM P/N |
|---|---|---|
| 635-332 | Insulator for 4635 Gas Diffuser 绝缘体，配用 4635 Gas Diffuser 分流器 | 36 |
| 589-612 | Gas Diffuser for 1500 Series Contact Tips Gas Diffuser 分流器，配用 1500 系列导电嘴 Contact Tip | 4235 |
| 844-670 | Gas Diffuser for 4200 & 7400 Series Contact Tips Gas Diffuser 分流器，配用 4200 与 7400 系列导电嘴 Contact Tip | 4335 |
| 173-704 | Gas Diffuser for 7400 Series Contact Tips Gas Diffuser 分流器，配用 7400 系列导电嘴 Contact Tip | 4435 |
| 272-730 | Gas Diffuser for 1500 Series Contact Tips Gas Diffuser 分流器，配用 1500 系列导电嘴 Contact Tip | 4635 |
| 684-242 | Gas Diffuser for 1500 Series Contact Tips Gas Diffuser 分流器，配用 1500 系列导电嘴 Contact Tip | 7392 |
| 761-447 | SWAN NECK 45° 弯管 45° | 4786 |
| 102-627 | SWAN NECK 45° 弯管 45° | 4790 |
| 604-447 | SWAN NECK 45° 弯管 45° | 4794 |
| Order Code | Type | Description | Metrics |
|---|---|---|---|
| 0.3m (1ft) Length | |||
| 590-089 | D | Jump Liner | 0.3m × 0.6-0.8mm (.023"-.030") |
| 864-113 | D | Jump Liner | 0.3m × 0.9-1.2mm (.035"-.045") |
| 727-753 | D | Jump Liner | 0.3m × 1.6mm (.063") |
| 3.0m (10ft) Length | |||
| 646-965 | A | Steel Liner Plastic Nipple | 3.0m × 0.6-0.8mm (.023"-.030") |
| 456-637 | A | Steel Liner Plastic Nipple | 3.0m × 0.8-1.2mm (.030"-.045") |
| 483-263 | B | Steel Liner Brass Nipple | 3.0m × 0.8-1.2mm (.030"-.045") |
| 279-024 | A | Steel Liner Plastic Nipple | 3.0m × 0.8-1.2mm (.030"-.045") |
| 189-156 | B | Steel Liner Brass Nipple | 3.0m × 0.8-1.2mm (.030"-.045") |
| 247-237 | A | Steel Liner Plastic Nipple | 3.0m × 1.2-1.6mm (.045"-1/16") |
| 946-770 | A | Steel Liner Plastic Nipple | 3.0m × 1.2-1.6mm (.045"-1/16") |
| 946-770 | B | Steel Liner Brass Nipple | 3.0m × 1.2-1.6mm (.045"-1/16") |
| 391-700 | A | Steel Liner Plastic Nipple | 3.0m × 2.0mm (5/64") |
| 476-380 | B | Steel Liner Brass Nipple | 3.0m × 2.4mm (3/32") |
| 4.6m (15ft) Length | |||
| 195-861 | A | Steel Liner Plastic Nipple | 4.6m × 0.6-0.8mm (.023"-.030") |
| 195-665 | A | Steel Liner Plastic Nipple | 4.6m × 0.8-1.2mm (.030"-.045") |
| 600-175 | B | Steel Liner Brass Nipple | 4.6m × 0.8-1.2mm (.030"-.045") |
| 629-070 | C | Polyamide Liner Brass Nipple | 4.6m × 0.9-1.2mm (.035"-.045") |
| 407-976 | A | Steel Liner Plastic Nipple | 4.6m × 0.8-1.2mm (.030"-.045") |
| 510-260 | B | Steel Liner Brass Nipple | 4.6m × 0.8-1.2mm (.030"-.045") |
| 646-929 | A | Steel Liner Plastic Nipple | 4.6m × 1.2-1.6mm (.045"-1/16") |
| 556-521 | A | Steel Liner Plastic Nipple | 4.6m × 1.2-1.6mm (.045"-1/16") |
| 713-175 | B | Steel Liner Brass Nipple | 4.6m × 1.2-1.6mm (.045"-1/16") |
| 754-244 | C | Polyamide Liner Brass Nipple | 4.6m × 1.2-1.6mm (.045"-1/16") |
| 116-092 | A | Steel Liner Plastic Nipple | 4.6m × 2.0mm (5/64") |
| 963-871 | B | Steel Liner Brass Nipple | 4.6m × 2.4mm (3/32") |

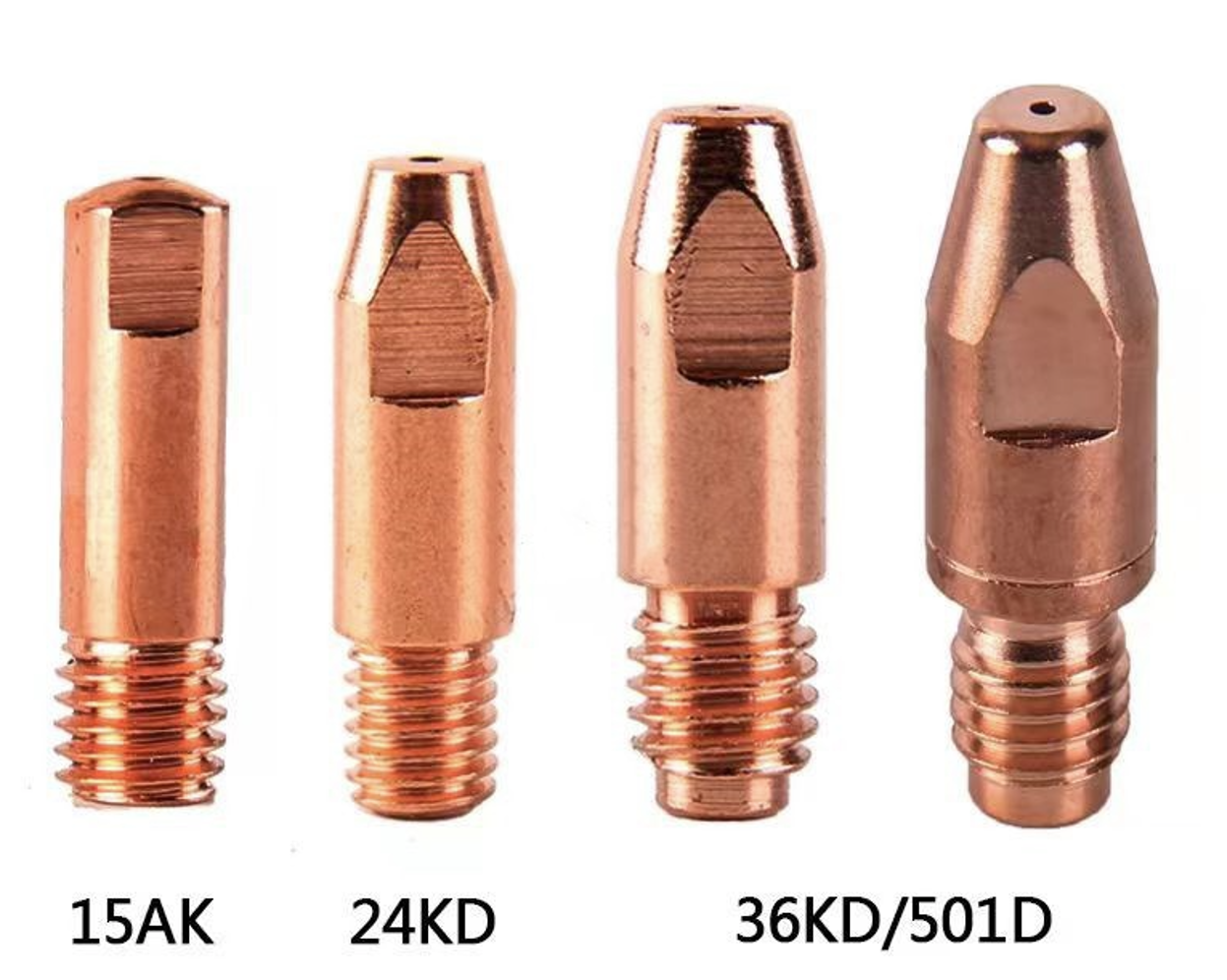

| Order Code | Description | Material | Wire Size | OEM P/N |
|---|---|---|---|---|
| 481-700 | Contact Tip | E-Cu | 0.6mm/.023" | 7497 |
| 751-860 | Contact Tip | E-Cu | 0.8mm/.030" | 7488 |
| 858-023 | Contact Tip | E-Cu | 0.9mm/.035" | 7489 |
| 433-353 | Contact Tip | E-Cu | 1.0mm/.040" | 7496 |
| 394-662 | Contact Tip | E-Cu | 1.2mm/.045" | 7490 |
| 342-589 | Contact Tip | E-Cu | 1.3mm/.052" | 7498 |
| 721-994 | Contact Tip | E-Cu | 1.6mm/1/16" | 7491 |
| 657-967 | Contact Tip | E-Cu | 2.0mm/5/64" | 7492 |
| 496-235 | Contact Tip | E-Cu | 2.4mm/3/32" | 7493 |
| 636-625 | Contact Tip Pipeline | E-Cu | 0.9mm/.035" | 4281 |
| 968-623 | Contact Tip Pipeline | E-Cu | 1.2mm/.045" | 4282 |
| 356-875 | Contact Tip | E-Cu | 0.8mm/.030" | 1588 |
| 308-129 | Contact Tip | E-Cu | 0.9mm/.035" | 1589 |
| 200-086 | Contact Tip | E-Cu | 1.0mm/.040" | 1596 |
| 105-801 | Contact Tip | E-Cu | 1.2mm/.045" | 1590 |
| 687-651 | Contact Tip | E-Cu | 1.3mm/.052" | 1598 |
| 913-872 | Contact Tip | E-Cu | 1.6mm/1/16" | 1591 |
| 113-645 | Contact Tip | E-Cu | 2.0mm/5/64" | 1592 |
| 797-767 | Contact Tip | E-Cu | 2.4mm/3/32" | 1593 |
| 238-827 | Contact Tip | E-Cu | 2.8mm/.110" | 1594 |
Welcome to Our MIG Torches Section
Explore our extensive range of high-quality MIG welding products designed for both professionals and hobbyists. Our product features everything from durable welding torches to precision contact tips, ensuring you have the right tools for any welding project.
Why Choose Our Products?
Superior Quality: Our products are manufactured to meet the highest industry standards, ensuring reliability and performance.
Wide Selection: Whether you need components for commercial applications or personal projects, we have a diverse selection to meet your needs.
Competitive Pricing: We offer affordable pricing without compromising on quality, making it easier for you to find the right equipment within your budget.
Expert Support: Our knowledgeable team is here to assist you in selecting the best products for your specific requirements.
Featured Categories
Welding Torches: Explore our range of air-cooled and water-cooled torches suitable for various applications.
Contact Tips: Discover our range of contact tips available in different sizes and materials to enhance your welding efficiency.
Accessories: From gas hoses to cable assemblies, find all the necessary accessories to complement your welding setup.
Get Started
Browse through our products and discover the perfect solutions for your welding needs. If you have any questions or need assistance, feel free to reach out to our support team. We look forward to helping you achieve exceptional results in your welding projects!
Legal Notice
All product names, trademarks, and registered trademarks mentioned in this document are the property of their respective owners. Our products are offered as compatible alternatives and are not original manufacturer parts. Users are advised to verify compatibility before use.
