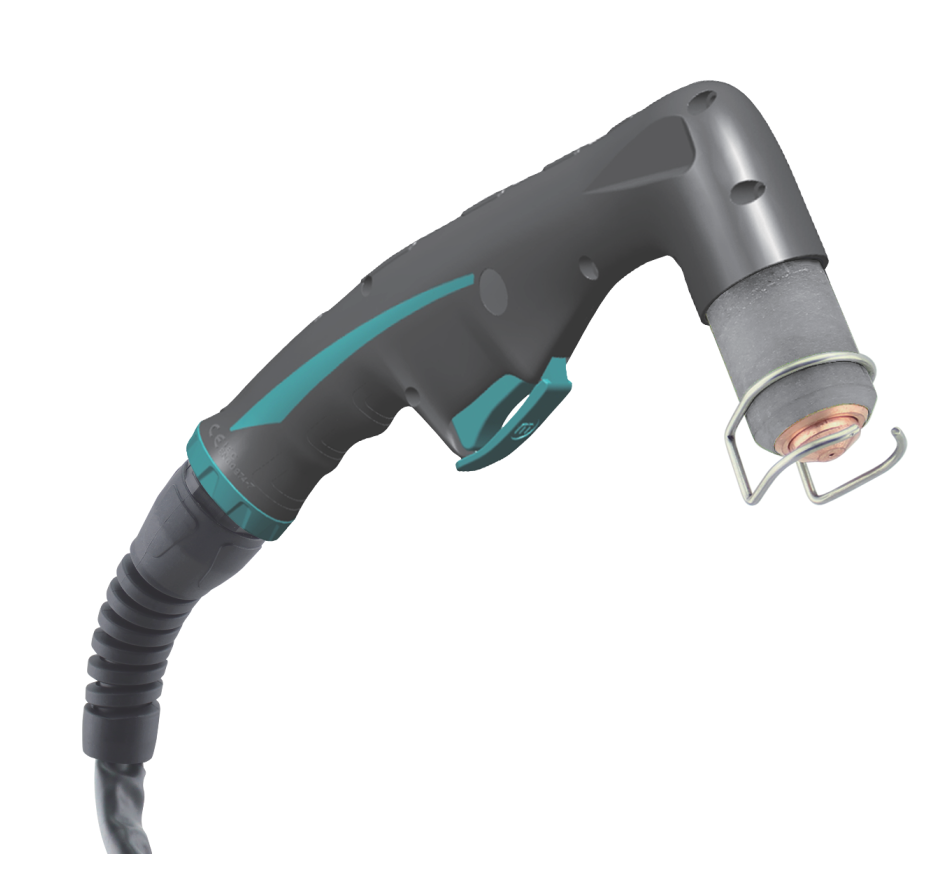

CB100 Plasma Cutting Torch
The CB100 Plasma Cutting Torch is a high-performance cutting solution designed for precision and reliability in demanding industrial applications. Available in both hand-held (CB100H) and machine-mounted (CB100M) configurations, this powerful 100 Amp torch delivers exceptional cutting performance across a wide range of materials. With multiple connection options and a standard 6m cable length, the CB100 series provides the flexibility needed for diverse cutting operations.
Key Features & Benefits
Industrial-Grade Performance
The CB100 torch delivers exceptional cutting capability with its 100 Amp maximum current, enabling efficient processing of thicker materials with precision and quality.
- High-frequency (HF) ignition system for reliable arc starts
- 60% duty cycle for extended operation periods
- Powerful 180 L/min gas flow for superior cut quality
Dual Configuration Options
Available in both hand-held (CB100H) and machine-mounted (CB100M) variants to accommodate different cutting requirements and operational preferences.
- Ergonomic hand torch design for operator comfort
- Precision-engineered machine torch for automated systems
- Consistent performance across both configurations
Versatile Connection System
The CB100 series offers multiple connection options to seamlessly integrate with various power sources and cutting systems.
- Imperial connections (1/8G, 1/4G) for standard systems
- Metric connections (M14x1, M16x1.5) for European equipment
- Central adaptor option for quick-connect systems
Technical Specifications
Performance Parameters
- Current: 100 amps
- Duty Cycle: 60%
- Arc Ignition: HF (High-Frequency)
Gas System
- Gas Type: Air
- Gas Flow: 180 LPM
- Gas Pressure: 4.5 – 5.0 bar
Operational Parameters
- Post Flow: 100 seconds (Recommended)
- Standard Length: 6m
- Multiple connection options available
Compatibility
The CB100 Plasma Cutting Torch is designed with versatility in mind, offering three connection categories to ensure compatibility with a wide range of plasma power sources:
Imperial Connections
- 1/8G - Compact thread for specific power sources
- 1/4G - Standard thread for broad compatibility
- Available for both hand and machine torches
Metric Connections
- M14x1 - Standard metric thread
- M16x1.5 - Larger thread for heavy-duty applications
- Compatible with European equipment standards
Quick-Connect System
- Central Adaptor - Integrated connection system
- Fast torch replacement with minimal downtime
- Simplified gas and power connection
| Model | Type | Connection |
|---|---|---|
| CB100H-6m | Hand Torch | 1/8G |
| CB100H-6m | Hand Torch | 1/4G |
| CB100H-6m | Hand Torch | M14x1 |
| CB100H-6m | Hand Torch | M16x1.5 |
| CB100H-6m | Hand Torch | Central Adaptor |
| CB100M-6m | Auto Torch | 1/8G |
| CB100M-6m | Auto Torch | 1/4G |
| CB100M-6m | Auto Torch | M14x1 |
| CB100M-6m | Auto Torch | M16x1.5 |
| CB100M-6m | Auto Torch | Central Adaptor |
Applications
The CB100 Plasma Cutting Torch excels in three primary application categories:
Industrial Manufacturing
- Thick metal fabrication and processing
- High-volume production cutting operations
- Heavy-duty component manufacturing
Construction & Structural
- Structural steel fabrication
- Heavy-gauge HVAC ductwork production
- On-site modification of thick materials
Specialized Applications
- Automated CNC cutting systems
- Shipbuilding and marine fabrication
- Heavy equipment repair and maintenance
Product Advantages
The CB100 Plasma Cutting Torch offers three key advantages that set it apart from conventional cutting solutions:
Superior Cutting Power
The 100 Amp maximum current combined with optimized gas flow delivers exceptional cutting performance:
- Higher cutting capacity for thicker materials
- Clean, precise cuts with minimal dross
- Efficient operation with 60% duty cycle
Universal Compatibility
The CB100 series provides unmatched versatility with its comprehensive range of connection options:
- Five different connection types for maximum compatibility
- Both imperial and metric options available
- Central adaptor option for quick-connect systems
Extended Consumable Life
The recommended 100-second post-flow time significantly improves operational efficiency by:
- Extending electrode and nozzle service life
- Reducing operational costs through fewer replacements
- Maintaining consistent performance throughout production
Summary
The CB100 Plasma Cutting Torch represents a professional-grade cutting solution that combines power, versatility, and reliability. With its robust 100 Amp capacity and 60% duty cycle, this torch is engineered to handle demanding industrial applications while providing consistent results.
Versatile Configurations
Available in both hand-held (CB100H) and machine (CB100M) variants with five connection options each, providing maximum flexibility for various cutting systems.
Optimized Performance
High-frequency ignition, 180 LPM air flow, and 4.5-5.0 bar pressure settings ensure optimal cutting quality and efficiency across applications.
Professional Reliability
Engineered with a recommended 100-second post-flow time to extend consumable life and maintain consistent performance in demanding environments.
The CB100 Plasma Cutting Torch series delivers the perfect balance of power, precision, and versatility required by professional fabricators and industrial cutting operations.
CB100 Plasma Torch Configuration
A comprehensive catalog of CB100 plasma torch models, consumables, components, and accessories designed for precision industrial cutting applications. All products are engineered to deliver optimal performance and ensure complete compatibility with standard plasma cutting systems.
CB100 Plasma Torch Models
| Order Code | OEM Part No. | Description |
|---|---|---|
| 986-893 | - | CB100H Plasma Cutting Torch, 6m with 1/8G Connection |
| 445-819 | - | CB100H Plasma Cutting Torch, 6m with 1/4G Connection |
| 116-276 | - | CB100H Plasma Cutting Torch, 6m with M14x1 Connection |
| 831-950 | - | CB100H Plasma Cutting Torch, 6m with M16x1.5 Connection |
| 797-544 | 01251STR | CB100H Plasma Cutting Torch, 6m with Central Adaptor |
| Order Code | OEM Part No. | Description |
|---|---|---|
| 581-665 | - | CB100M Plasma Cutting Automated Torch, 6m with 1/8G Connection |
| 701-638 | - | CB100M Plasma Cutting Automated Torch, 6m with 1/4G Connection |
| 330-347 | - | CB100M Plasma Cutting Automated Torch, 6m with M14x1 Connection |
| 349-919 | W0400034 | CB100M Plasma Cutting Automated Torch, 6m with M16x1.5 Connection |
| 188-095 | 1452 | CB100M Plasma Cutting Automated Torch, 6m with Central Adaptor |
Torch Components
| Order Code | OEM Part No. | Description |
|---|---|---|
| 716-516 | - | Plasma Torch Head Assembly for CB100 |
| 799-355 | W0300143 | Plasma Torch Head Assembly for CB100M |
| 282-905 | - | Manual Plasma Handle for A Series (Red) |
| 947-423 | 185.0031 | Trigger Mechanism Component |
| 650-777 | - | Protective Shield Component for Plasma (Yellow) |
| 920-872 | W0300144 | Fiberglass Positioning Tube for CB100M |
| 525-448 | - | Precision Joint Component (Small, New Type) |
| 286-169 | - | Front Insulator Component for CB100-101 |
Consumables
| Order Code | OEM Part No. | Description |
|---|---|---|
| 788-821 | 1377 / W0300124 | Precision Diffuser for CB100-150 |
| 522-251 | 1376 / W0300123 | High-Frequency Electrode for CB100-150 |
| 427-838 | W0300122 | Air Distribution Tube for CB100 |
| 516-428 | 1371 / W0300184 | Cutting Tip Ø1.1mm for CB100-150 |
| 811-646 | 1372 / W0300174 | Cutting Tip Ø1.3mm for CB100-150 |
| 693-003 | 1373 / W0300175 | Cutting Tip Ø1.6mm for CB100-150 |
| 663-134 | W0300135 | Flat Cutting Tip Ø1.35mm for CB100-150 |
| 556-867 | W0300175 | Flat Cutting Tip Ø1.6mm for CB100-150 |
| 956-308 | 1386 / W0300130 | Precision Outer Nozzle for CB100 |
| 824-312 | W0300138 | Contact Nozzle Retaining Cap for CB100 |
| 266-650 | W0300184 | Precision Locking Nut Component |
| 467-364 | 1398 / W0300121 | O-ring Set for CB100 |
| Order Code | OEM Part No. | Description |
|---|---|---|
| 187-057 | 1517 / W0300133 | Extended High-Frequency Electrode for CB100-150 |
| 426-634 | - | Extended Air Distribution Tube for CB100 |
| 785-083 | W0300178 | Extended Cutting Tip Ø1.35mm for CB100-150 |
| 779-504 | W0300179 | Extended Cutting Tip Ø1.6mm for CB100-150 |
| 661-713 | - | Extended Cutting Tip Ø1.8mm for CB100-150 |
| 462-418 | 1369 / W0300134 | Contact Extended Cutting Tip (50A) for CB100-150 |
| Order Code | OEM Part No. | Description |
|---|---|---|
| 820-548 | W0300177 | Four-Pointed Precision Spacer for CB100-141 |
| 153-948 | 1408 / W0300131 | Double-Pointed Precision Spacer for CB100-141 |
| 777-107 | W0300130 | Precision Spacer Spring for CB100-151 |
| 236-303 | W0300180 | Contact Cutting Spacer for CB100-150 |
| 412-194 | W0300182 | Protective Shield Cap for Hand Tip (Max 50A) for CB100-151 |
| 399-526 | W0300183 | Contact Cutting Spacer for Hand Tip for CB100-151 |
Accessories & Adapters
| Order Code | OEM Part No. | Description |
|---|---|---|
| 255-553 | - | Specialized Spanner for Plasma Torch Assembly |
| 841-623 | 169 | Precision Circle Cutting Attachment for CB100-151 |
| 191-300 | - | Universal Connecting Adapter (1/8G-1/4G) |
| 493-829 | - | Universal Connecting Adapter (1/8G-M14x1) |
| 688-557 | - | Universal Connecting Adapter (1/8G-M16x1.5) |
| 566-183 | - | Central Adapter for Torch Side Plasma (5 pins) |
Cable Assemblies
| Order Code | OEM Part No. | Description |
|---|---|---|
| 781-235 | - | Universal Cable Assembly for CB100-101 (10mm², 6m with 1/8G Connection) |
| 963-039 | - | Universal Cable Assembly for CB100-101 (10mm², 6m with Central Adapter) |
| 213-885 | - | Universal Cable Assembly for CB100M-101 (10mm², 6m with 1/8G Connection) |
| 541-321 | - | Universal Cable Assembly for CB100M-101 (10mm², 6m with Central Adapter) |
| 312-840 | - | Universal Cable Assembly for CB100-101 (6m with Central Adapter) |
