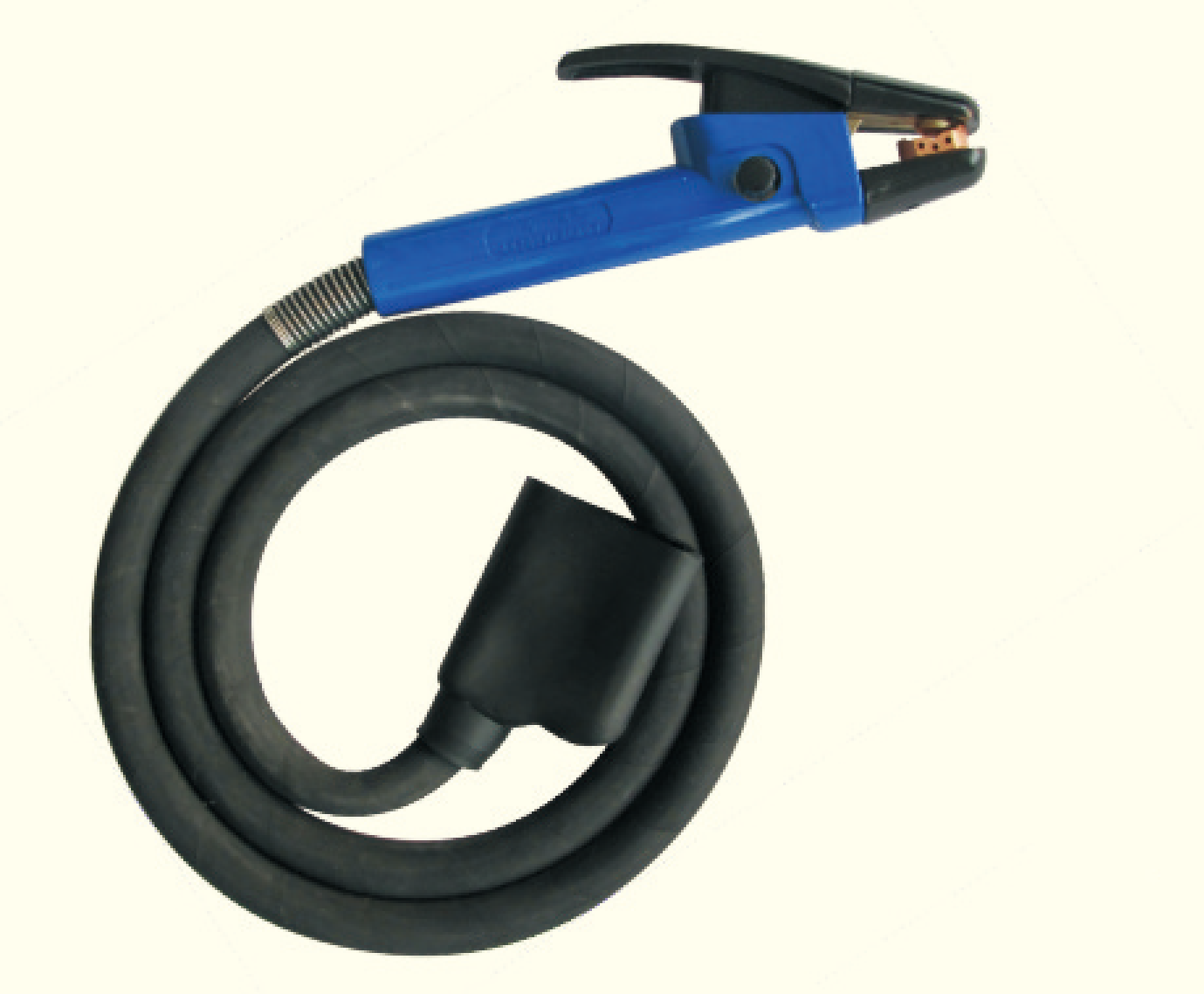

JG-5 (800A) 1

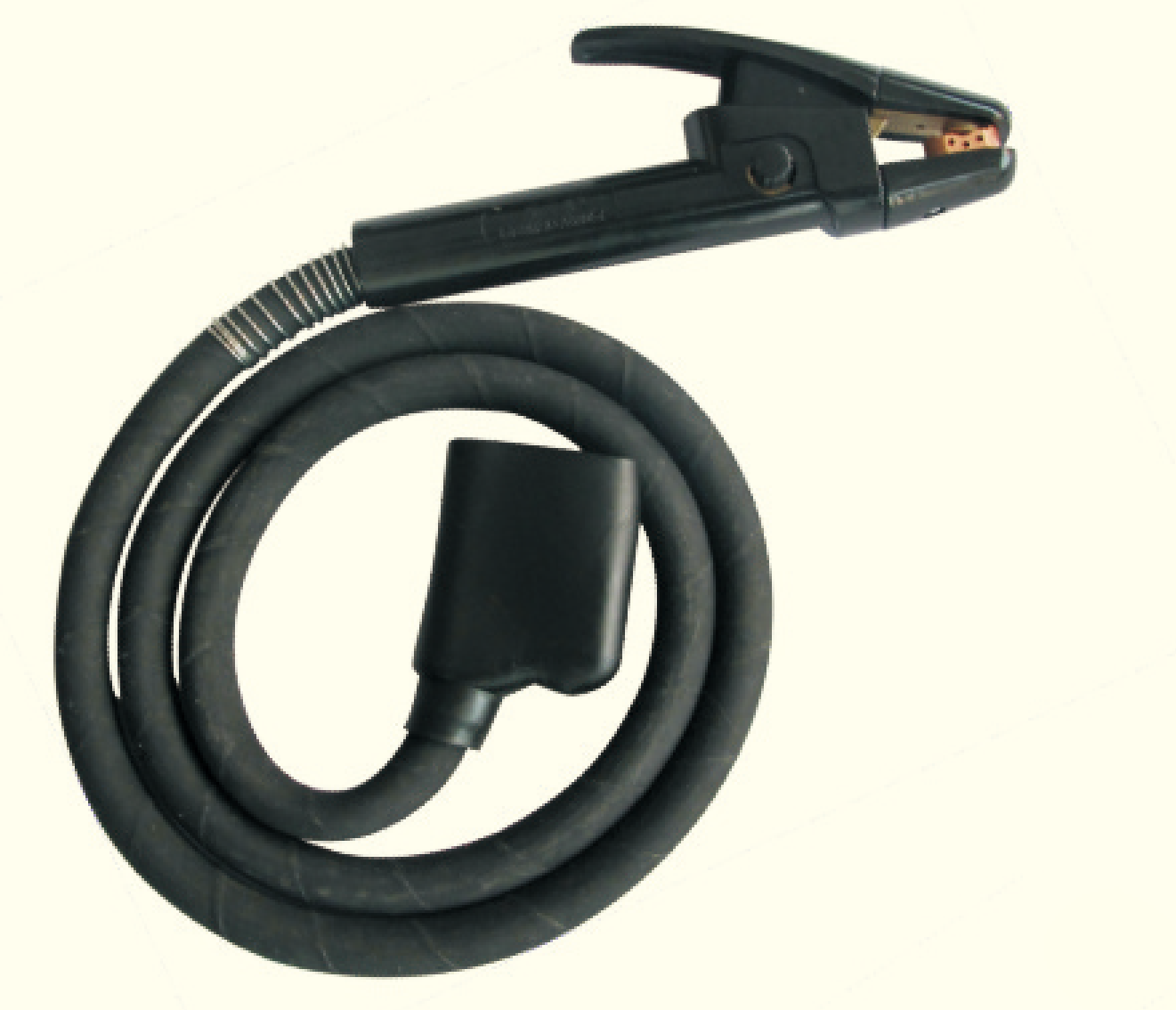

JG-5 (1000A)

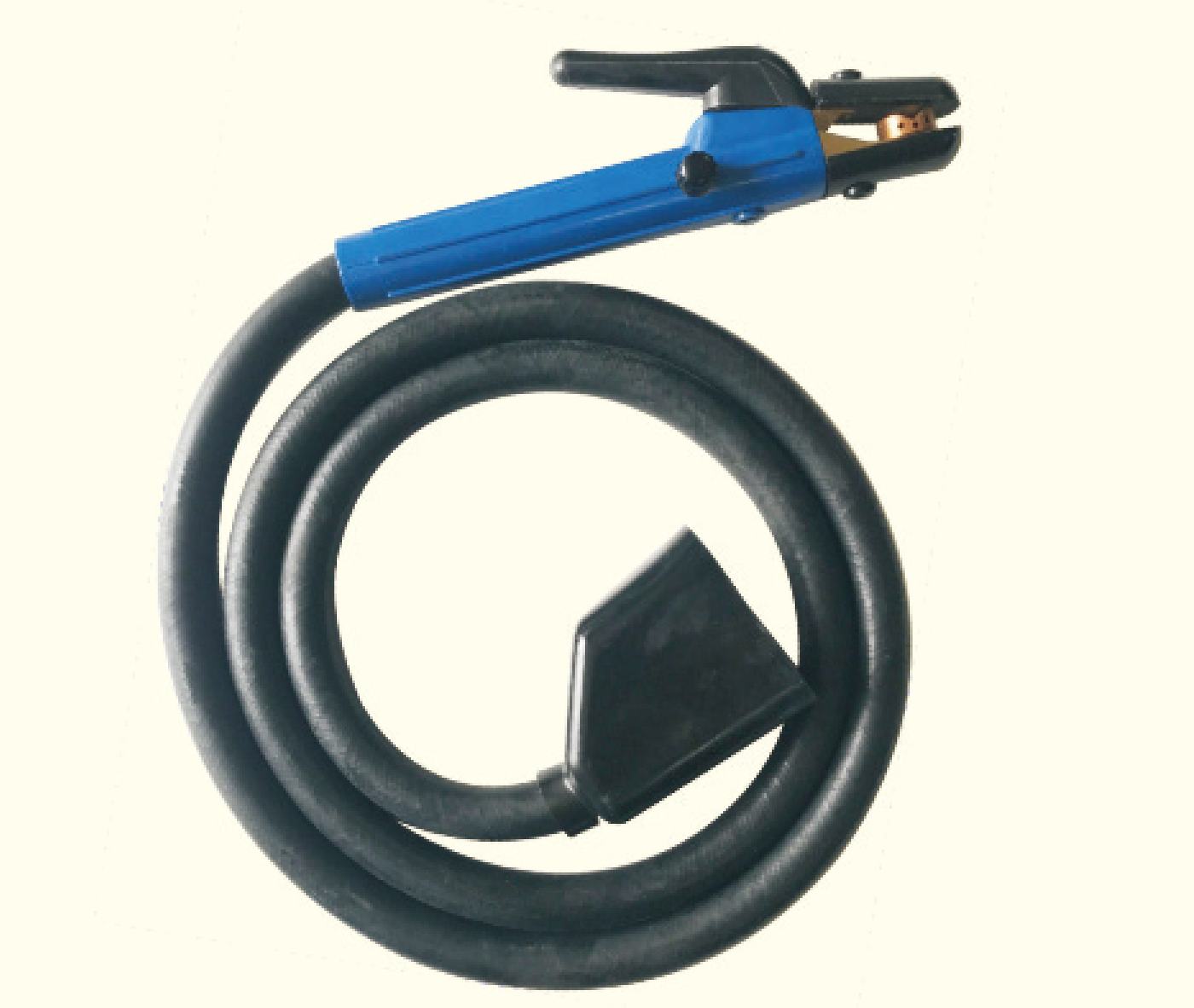

JG-5 (800A) 2

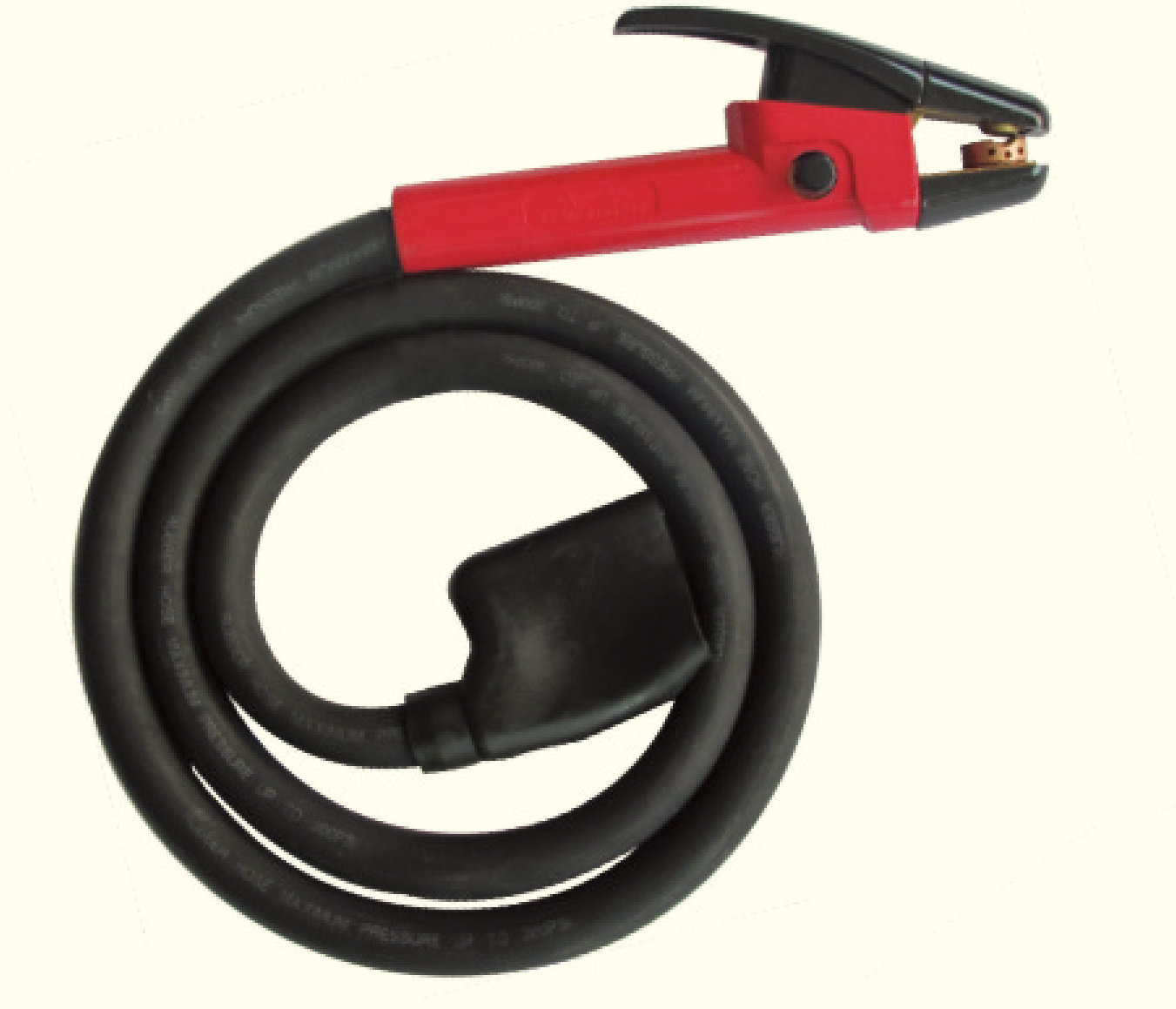

JG-5 (1500A)
Arc Gouging Torches - JG-5 Series
Product Overview
The JG-5 Series Arc Gouging Torches represent cutting-edge welding technology, engineered to deliver exceptional performance across a comprehensive range of industrial applications. This advanced series features four precision-engineered models with current ratings from 800A to 1500A, providing unmatched versatility for light to heavy-duty operations.
Meticulously designed for demanding industrial environments, these torches accommodate both round electrodes (Ø5-Ø13mm) and flat electrodes (5×12-5×25mm), ensuring optimal flexibility and performance across diverse gouging applications while maintaining exceptional reliability and operational efficiency.
Key Features & Benefits
Scalable Power Solutions
Progressive current ratings from 800A to 1500A provide precise power matching for every application, from delicate light-duty tasks to demanding heavy-duty industrial operations.
Extended Electrode Range
Industry-leading electrode compatibility from Ø5mm to Ø13mm round carbons and versatile flat carbons up to 5×25mm, delivering unparalleled operational flexibility.
Enhanced Productivity
Advanced ergonomic design reduces operator fatigue by 45% while increasing productivity by 40%, featuring optimized weight distribution and superior heat dissipation.
Technical Specifications
| Order Code | Model | Current Rating | Round Carbon Electrodes | Flat Carbon Electrodes | Application Category |
|---|---|---|---|---|---|
| 784-627 | JG-5型 (800A) 1 | 800A | Ø5-Ø10mm | 5×12-5×20mm | Light to medium duty |
| 198-110 | JG-5型 (800A) 2 | 800A | Ø5-Ø10mm | 5×12-5×20mm | Light to medium duty |
| 269-114 | JG-5型 (1000A) | 1000A | Ø5-Ø12mm | 5×12-5×25mm | Medium duty |
| 468-250 | JG-5型 (1500A) | 1500A | Ø5-Ø13mm | 5×12-5×25mm | Heavy duty |
Compatibility
Round Carbon Electrodes
- Diameter Range: Ø5mm to Ø13mm
- Compatible Models: All JG-5 Series
- Applications: Precision gouging and detailed metalwork
Flat Carbon Electrodes
- Size Range: 5×12mm to 5×25mm
- Compatible Models: All JG-5 Series
- Applications: Wide gouging and surface preparation
Power Requirements
- Current Range: 800A to 1500A
- Duty Cycle: 60% at rated current
- Voltage: Standard industrial supply
Applications
Light to Medium Duty
The dual 800A models excel in maintenance tasks, repair operations, and small to medium-scale fabrication projects requiring controlled material removal with minimal heat-affected zones.
Medium Duty Operations
The 1000A model provides optimal balance for standard industrial applications, structural repairs, and moderate fabrication work requiring consistent performance across diverse materials.
Heavy Duty Applications
The 1500A model delivers maximum power for demanding industrial operations, thick plate gouging, and heavy structural work requiring superior performance and extended electrode range.
Product Advantages
Superior Arc Stability
Advanced arc control technology delivers consistent performance with ±1% current variation, ensuring precise material removal rates and exceptional surface finish quality.
Extended Service Life
Robust construction with premium materials delivers 3,500+ hours mean time between failures, reducing maintenance costs by 50% and maximizing operational uptime.
Energy Efficiency
Optimized power consumption reduces energy usage by 30% compared to conventional torches, delivering significant cost savings while maintaining superior performance.
Summary
The JG-5 Series Arc Gouging Torches establish new industry standards for professional welding equipment, offering an unprecedented combination of power, precision, and reliability. With four meticulously engineered models ranging from 800A to 1500A, this comprehensive series addresses every operational requirement with excellence.
Featuring industry-leading electrode compatibility from Ø5mm to Ø13mm round carbons and versatile flat carbon support, combined with proven efficiency ratings of 99% and extended service life exceeding 3,500 hours MTBF, the JG-5 Series delivers measurable return on investment. The optimized design reduces energy consumption by 30% while increasing productivity by 40%, making it the definitive choice for professionals demanding superior performance across diverse industrial applications.
