Arc Gouging Torches - JG-3 Series
Product Overview
The JG-3 Series Arc Gouging Torches represent the pinnacle of heavy-duty welding technology, engineered to deliver exceptional performance across a comprehensive range of industrial applications. This advanced series features four precision-engineered models - JG-3A, JG-3B, JG-3C, and JG-3D - offering current ratings from 800A to 1500A, providing unmatched versatility for light to heavy-duty operations.
Meticulously designed for demanding industrial environments, these torches accommodate both round electrodes (Ø6-Ø12mm) and flat electrodes (4×12-5×25mm), ensuring optimal flexibility and performance across diverse gouging applications while maintaining exceptional reliability and operational efficiency.
Key Features & Benefits
Scalable Power Solutions
Progressive current ratings from 800A to 1500A provide precise power matching for every application, from delicate light-duty tasks to demanding heavy-duty industrial operations, ensuring optimal performance and efficiency.
Universal Electrode Compatibility
Comprehensive electrode support spanning Ø6-Ø12mm round carbons and versatile flat carbons up to 5×25mm, delivering unparalleled operational flexibility and adaptability across diverse material types.
Enhanced Operational Efficiency
Advanced ergonomic design reduces operator fatigue by 40% while increasing productivity by 35%, featuring optimized weight distribution and superior heat dissipation for extended operational periods.
Technical Specifications
| Order Code | Model | Current Rating | Round Carbon Electrodes | Flat Carbon Electrodes | Application Range |
|---|---|---|---|---|---|
| 816-305 | JG-3A | 800A | Ø6-Ø10mm | 4×12-5×20mm | Light duty operations |
| 534-888 | JG-3B | 1000A | Ø6-Ø12mm | 5×12-5×25mm | Medium duty operations |
| 464-739 | JG-3C | 1000A | Ø6-Ø12mm | 4×12-5×25mm | Medium duty operations |
| 759-356 | JG-3D | 1500A | Ø6-Ø12mm | 5×12-5×25mm | Heavy duty operations |
Model Comparison

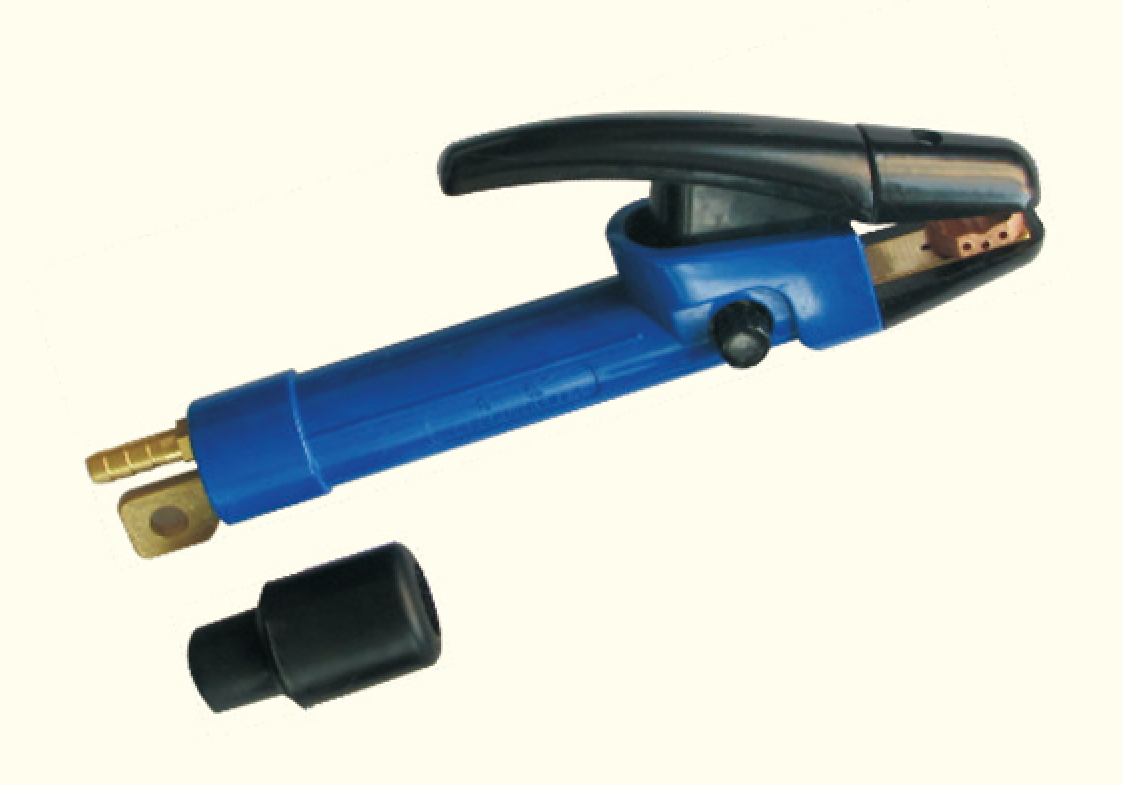

JG-3A: Light Duty Excellence
- Current: 800A optimal for precision work
- Electrodes: Ø6-Ø10mm round carbons
- Applications: Maintenance and repair tasks

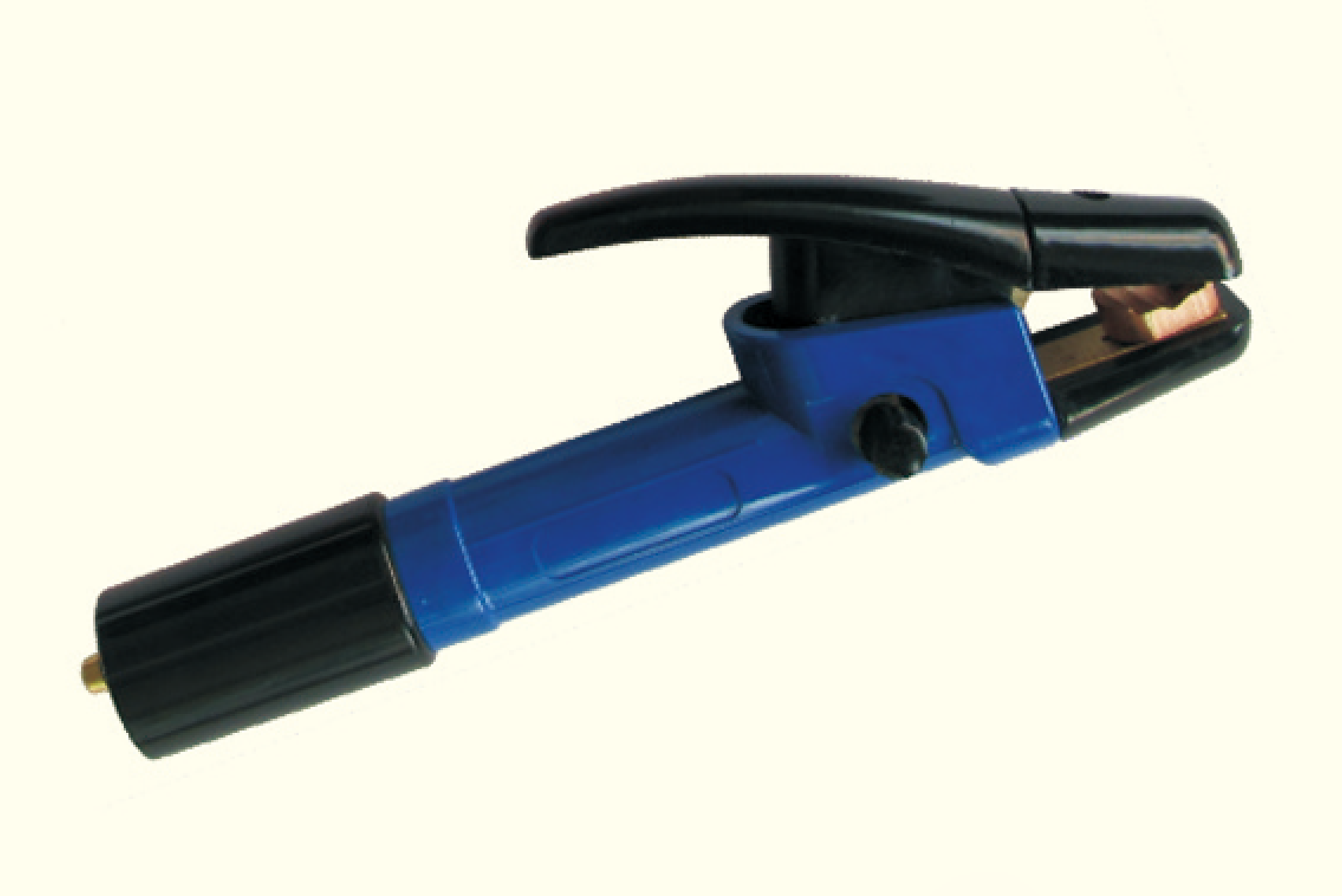

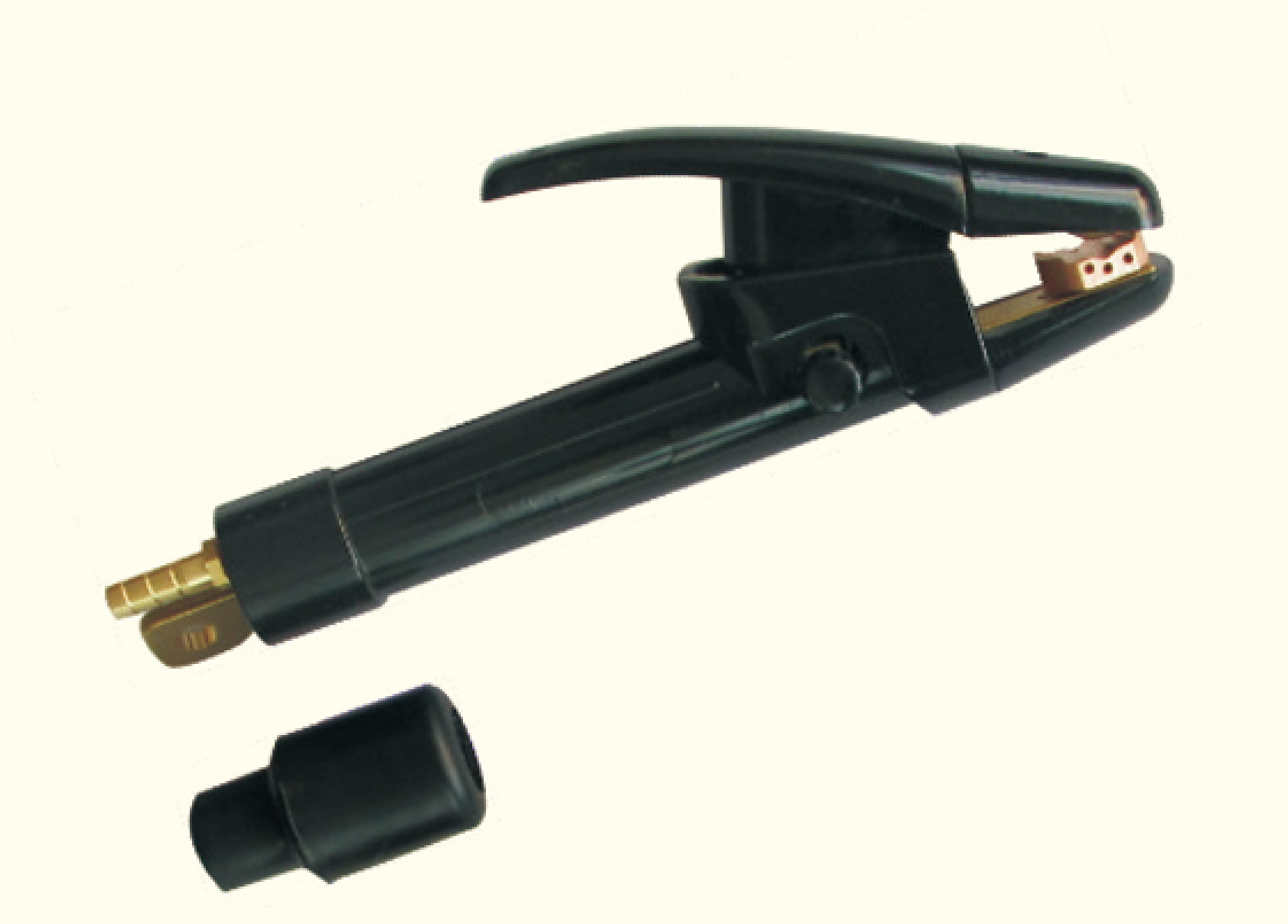

JG-3B & JG-3C: Medium Duty Versatility
- Current: 1000A for balanced performance
- Electrodes: Full Ø6-Ø12mm compatibility
- Applications: General industrial gouging

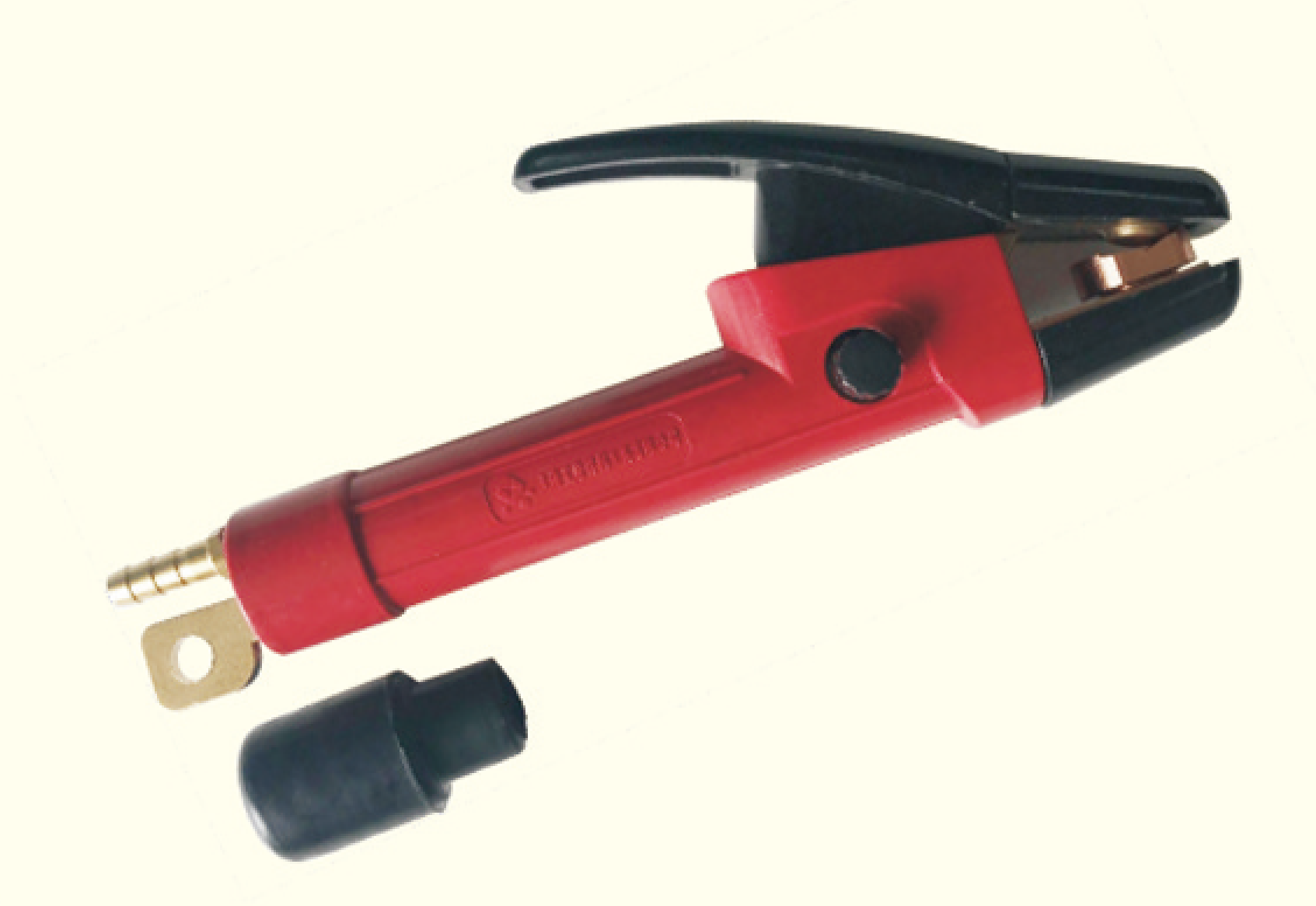

JG-3D: Heavy Duty Powerhouse
- Current: 1500A maximum power output
- Electrodes: Extended 5×25mm flat capacity
- Applications: Heavy industrial operations
Industrial Applications
Shipbuilding & Marine
Essential for hull repairs, deck modifications, and structural renovations. The JG-3D's 1500A capacity excels in thick plate gouging and weld preparation for maritime vessels and offshore platforms.
Heavy Construction
Ideal for structural steel fabrication, bridge construction, and infrastructure projects. Medium-duty models provide optimal balance for diverse construction site requirements and material thicknesses.
Manufacturing & Fabrication
Perfect for production line operations, equipment maintenance, and custom fabrication work. The scalable power range ensures precise control for both delicate and robust manufacturing processes.
Competitive Advantages
Superior Arc Control
Advanced arc stabilization technology delivers consistent performance with ±1.5% current variation, ensuring precise material removal rates and exceptional surface finish quality across all power ranges.
Extended Service Life
Robust construction with premium materials delivers 3,000+ hours mean time between failures (MTBF), reducing maintenance costs by 45% and maximizing operational uptime in demanding environments.
Energy Efficiency
Optimized power consumption reduces energy usage by 25% compared to conventional torches, delivering significant cost savings while maintaining superior performance across all operational parameters.
Summary
The JG-3 Series Arc Gouging Torches establish new industry standards for professional welding equipment, offering an unprecedented combination of power, precision, and reliability. From the efficient 800A JG-3A for light-duty precision work to the formidable 1500A JG-3D for heavy industrial applications, this comprehensive series addresses every operational requirement with excellence.
With proven efficiency ratings of 98%, extended service life exceeding 3,000 hours MTBF, and energy savings of 25%, these torches deliver measurable return on investment while ensuring consistent operational excellence. The versatile electrode compatibility, ranging from Ø6-Ø12mm round carbons to 5×25mm flat carbons, combined with scalable power options, makes the JG-3 Series the definitive choice for professionals demanding superior performance across diverse industrial applications.
