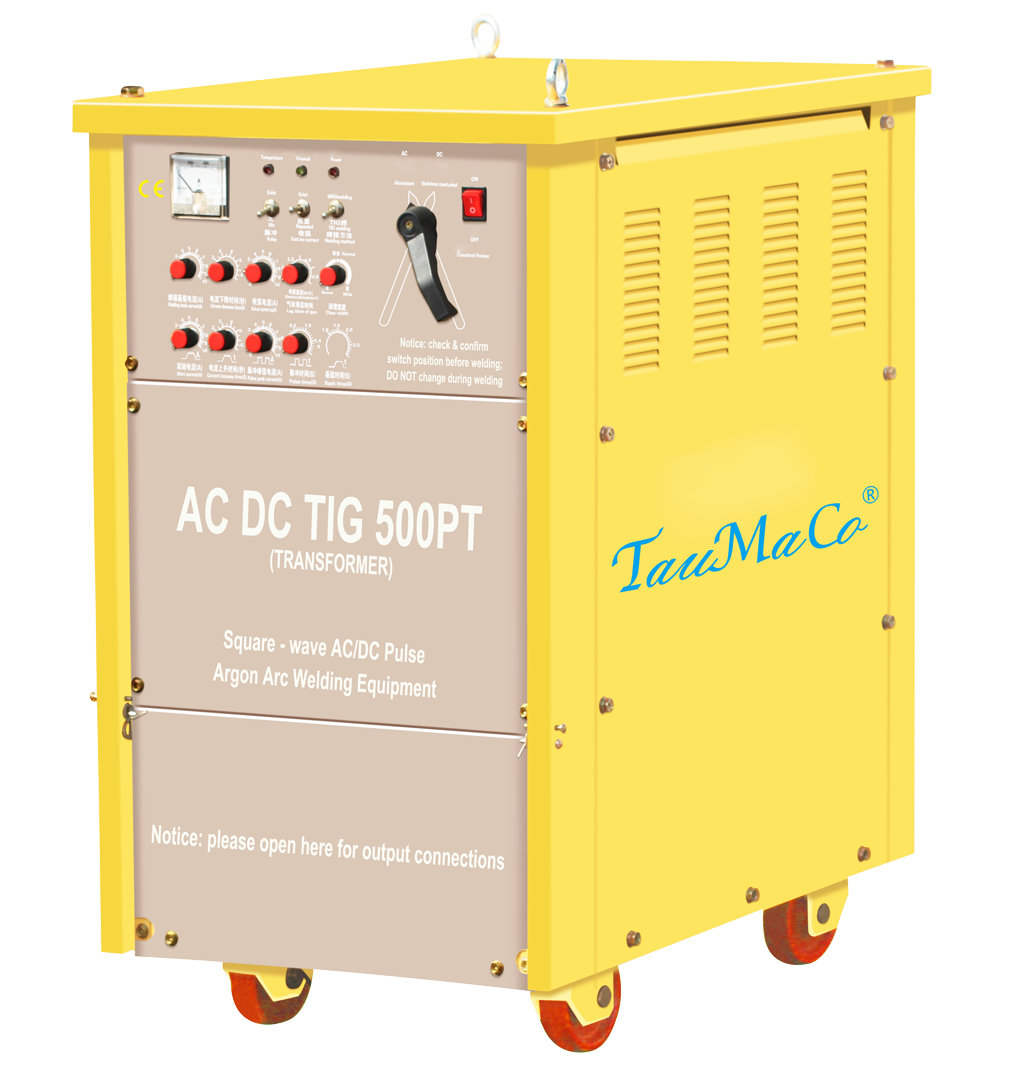

AC/DC TIG-500PT (TRANSFORMER)
Heavy-duty transformer AC/DC square wave impulse argon welding machine with 380V single-phase input, 5-500 A rated output, and AC/DC process coverage for aluminum plate up to 15 mm, thicker non-ferrous fabrication, and large transformer-class workshop welding duties.
Configured with transformer-based square wave AC/DC TIG control, minimum 5 A arc starting, stable arc behavior, slow rise and decay functions, and higher output positioning for thicker aluminum and heavier industrial workshop fabrication.
AC/DC TIG-500PT (TRANSFORMER) Technical Specifications
Core electrical data, process coverage, and transformer-based pulse parameters for the AC/DC TIG-500PT AC/DC square wave impulse argon welding machine.
| Parameter | AC/DC TIG-500PT (TRANSFORMER) |
|---|---|
| Technology | Transformer square wave AC/DC pulse TIG |
| Product Type | AC/DC square wave impulse argon welding machine |
| Current Type | Square wave AC/DC output |
| Functions | AC/DC TIG and AC/DC pulse TIG welding functions |
| Primary Welding Application | Aluminum plate below 15 mm |
| Material Coverage | Aluminum, iron, stainless steel, copper, titanium, carbon steel, and other non-ferrous metals as positioned in the supplied product information |
| Supply Voltage | 380V ±10% (Single-phase) |
| Rated Frequency | 50/60 Hz |
| Rated Supply Energy | 37 kVA |
| Maximum Load Voltage | 100 V |
| Rated Load Sustained Rate | 35% |
| Rated Output Current | 5-500 A |
| Peak Pulse Current | 5-500 A |
| Base Current | 5-500 A |
| Pulse Time | 0.03-1.4 s |
| Base Time | 0.05-2.5 s |
| Current Rise Time | 0.1-5 s |
| Current Fall Time | 0.1-5 s |
| Exterior Dimensions (L×W×H) | 800 × 520 × 950 mm |
| Weight | 295 kg |
| Certification | CE |
| Compliance | LVD 2014/35/EU, EMC 2014/30/EU |
Heavy-output transformer durability, 5 A arc starting, and thicker aluminum AC/DC welding coverage.
AC/DC TIG-500PT (TRANSFORMER) is positioned for heavier industrial workshop welding with square wave AC/DC control, stable arc behavior from low-current starting, and broader process flexibility across thicker aluminum, stainless steel, and mixed-metal fabrication requirements.
Minimum 5 A arc start with stable arc behavior across thin, medium, and thick plates
The supplied product information positions the machine with minimum welding current from 5 A, good arc stability, and practical suitability for thin, medium, and thick plate work at a higher-output transformer class.
DC pulse TIG coverage for stainless steel, copper, titanium, and carbon steel work
The DC pulse TIG process is described as suitable for stainless steel, copper, titanium, carbon steel, and related fabrication materials where stable heat control is beneficial.
Rapid zero-crossing AC waveform supports stable current and arc performance
AC mode is described as providing drooping characteristics together with a rapid zero-crossing current waveform, helping support welding-current stability and more reliable arc behavior on heavier sections.
AC TIG for aluminum alloys together with AC/DC TIG and pulse process flexibility
AC TIG is positioned for aluminum and aluminum-alloy welding, while the broader AC/DC TIG and AC/DC pulse TIG process set helps extend the machine into mixed-metal production work.
Current rise and decay functions help fill the arc crater and reduce crack risk
Current slow-rise and current-decay functions are intended to help fill the crater at arc stopping, supporting cleaner weld completion and reducing the chance of weld cracking on heavier-duty joints.
Transformer-built main unit positioned for long service life in heavier industrial use
The supplied comparison states a main-unit service life of 12-20 years and positions the transformer structure as a longer-life option for customers prioritizing durability and heavier-duty equipment ownership.
Standardized product positioning
- Technology: transformer AC/DC square wave pulse TIG
- Supply voltage: 380V ±10% (single-phase)
- Process set: AC/DC TIG and AC/DC pulse TIG
- Aluminum welding scope: up to 15 mm plate
- Model class: heavy-duty transformer AC/DC TIG platform
AC/DC TIG coverage for thicker aluminum and broader mixed-metal welding
- DC TIG is mainly used for iron and stainless steel welding.
- AC/DC TIG can weld aluminum, iron, stainless steel, copper, and other non-ferrous metals.
- This model is positioned for thicker aluminum plate work where square wave AC stability and higher output both matter.
- Low-current starting and crater-control adjustment support broader plate-thickness flexibility in industrial operation.
Positioned for long-life ownership and heavier transformer-class duty
- Supplied product comparison states main-unit service life of 12-20 years.
- Presented as up to five times inverter welder life in the supplied service-life comparison.
- Transformer architecture is positioned for customers who value durability and long operating life.
- Suitable for workshops where service life and large-equipment stability both matter.
Built for thick aluminum, stainless fabrication, and heavier mixed-metal welding
- Aluminum plate welding below 15 mm
- Stainless steel and iron fabrication work
- Copper, titanium, and carbon steel pulse TIG positioning
- Heavier industrial workshop, repair, and fabrication environments requiring transformer durability
Select compact DC TIG, AC/DC aluminum TIG, or transformer and SCR platforms by output type, cooling, and material demand.
This TIG lineup covers portable DC TIG and MMA inverters, higher-output pulse TIG machines, AC/DC inverter systems for aluminum and non-ferrous work, and transformer or SCR models for conventional workshop and industrial applications.
Portable and production-ready DC TIG machines for steel, stainless steel, repair, and fabrication work
- TIG-200, TIG-250mos, TIG-250D, and TIG-250P cover compact DC TIG and multi-process welding for workshop and field use.
- TIG-315P, TIG-400P, and TIG-500P extend the range for higher-output pulse TIG and industrial fabrication demand.
- Choose this group when DC TIG performance, portability, or wider pulse-control range is the main requirement.
AC/DC TIG systems for aluminum, non-ferrous metals, and higher-duty production welding
- AC-DC-TIG-250P, AC-DC-TIG-315P, AC-DC-TIG-315PW, AC-DC-TIG-500P, and AC-DC-TIG-500PW cover AC/DC TIG across air-cooled and water-cooled formats.
- These models are the preferred choice when aluminum welding, AC output, or longer high-load operating cycles are required.
- Water-cooled versions are better suited to continuous higher-current work where torch temperature and long-run stability matter more.
Conventional transformer-class and SCR-controlled TIG platforms for workshop durability and heavier-duty operation
- AC-DC-TIG-350PT and AC-DC-TIG-500PT serve thicker-section AC/DC TIG applications in transformer-class format.
- TIG-200SCR-1PH-220V, TIG-200SCR-1PH-380V, TIG-250SCR-1PH-380V, and TIG-300SCR-1PH-380V provide transformer SCR DC TIG coverage for conventional workshop use.
- Select this group when traditional machine construction, single-phase transformer supply, or heavier-duty shop use is preferred.
Verify package scope and application suitability before order confirmation.
Published specifications, standard delivery scope, and accessory ratings are for reference only and may change without notice. Included TIG torches, electrode holders, work clamps, gas regulators, flowmeters, water-cooling units, foot pedals, remote controls, plugs, and other accessories may vary by model, package, and destination market. Before supply, confirm the required TIG or MMA process, AC or DC output type, input power, output current, duty cycle, cooling configuration, torch or work-lead length, and applicable local compliance requirements for the intended application.
